Maxwell 1500 VWC Vertical Windlass with Capstan 12V 1200W
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Designed for vertical handling, it has an independent capstan for
retrieval of a secondary rope/chain rode or to assist with docking
procedures.
Specifications:
Product Data Sheet
Specifications:
Voltage (V) | 12 V |
---|---|
Sense of rotation | CW |
Motor (W) | 1200 |
Model | Capstan |
Maximum pull/lift (kg) | 850 |
Static hold (kg) | 3300 |
Chain short link (mm) | 1/4- 3/8 |
Line speed (normal working) (m) | 60 ft/min |
Net weight, electric (kg) | 24 |

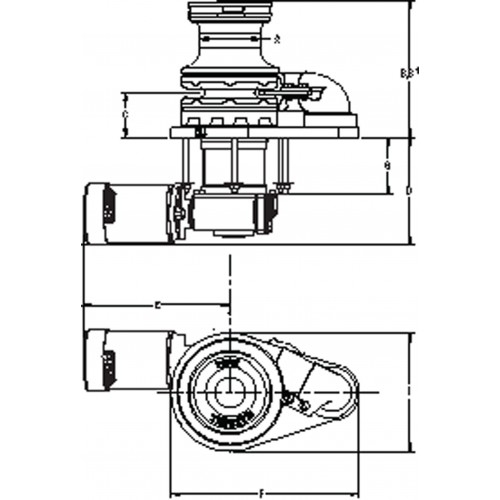

A (mm) | 80 |
B (mm) | 195 |
B1 (low profile) (mm) | - |
C (mm) | 56 |
D (mm) | 252 |
E (mm) | 272 |
F (mm) | 224 |
G (standard deck clearance) (mm) | 100 |
G (extra deck clearance) (mm) | 150 |
I (mm) | 165 |
Product Data Sheet
