Quick Reversing Solenoid Unit

#9039280
Warranty Badge - 12-Months
Check Below for Availability

Seen a lower price? Ask us to beat it

Product Name Price Qty
Quick T6415 Reversing Solenoid Unit 12V

Ships Jan 13 - Jan 25

NOW $369.00
Quick T6415 Reversing Solenoid Unit 24V

Out of Stock

Notify me when back in stock

NOW $369.00

Sold Out
Add Items to Cart

💬 Report incorrect product information

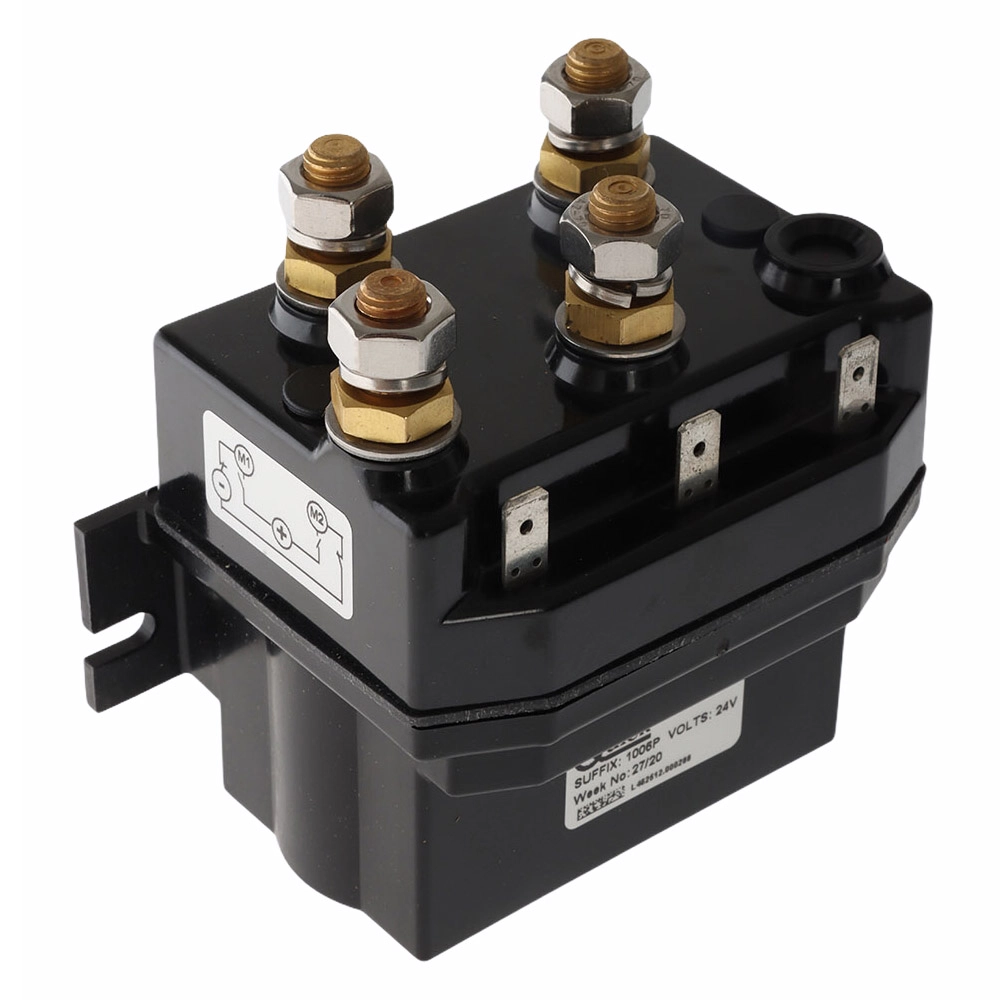

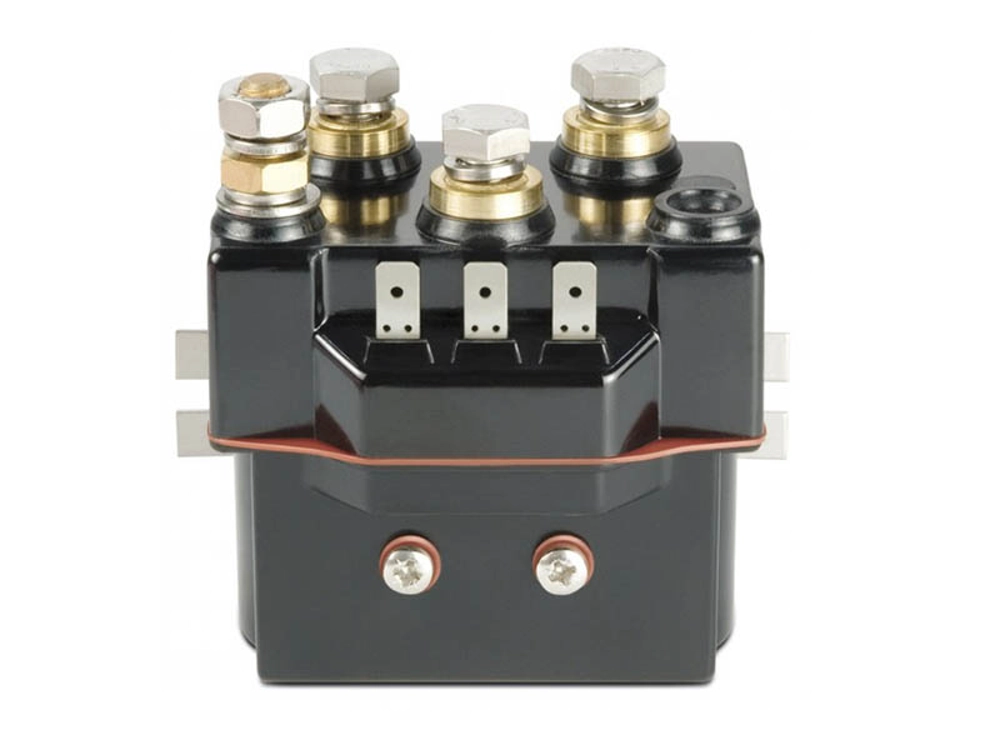

Quick Reversing Solenoid Unit

Click on the image above to view full picture

More Views

Details

Details

Easy to install

The Quick Reversing Solenoid Unit is a reversing contactor that is able to operate electric motors for windlasses and capstans. Due to the external connections, this unit is very easy to install. The casing of this unit is IP66 waterproof. This unit is sold complete with the solenoid unit and product sheet.

Quick Reversing Solenoid Unit Features:
  • Reversing contactor
  • Fast, easy install
  • IP66 waterproof casing
  • Comes with product sheet

Quick Reversing Solenoid Unit Specifications:

ModelsT 6415-12T 6415-24
Maximum power of the windlass/capstan motor2500 W3500 W
Max contact voltage48 Vdc48 Vdc
Interruption capacity (1)800 A @ 48 Vdc800 A @ 48 Vdc
Working intermittent current150 A150 A
(50% of work cycle) (Ie)
Coil rated voltage12 Vdc24 Vdc
Recommended fuse2.5 A Fast1.6 A Fast
Degree of protectionIP 66IP 66
Weight2.16 g2.16 g
