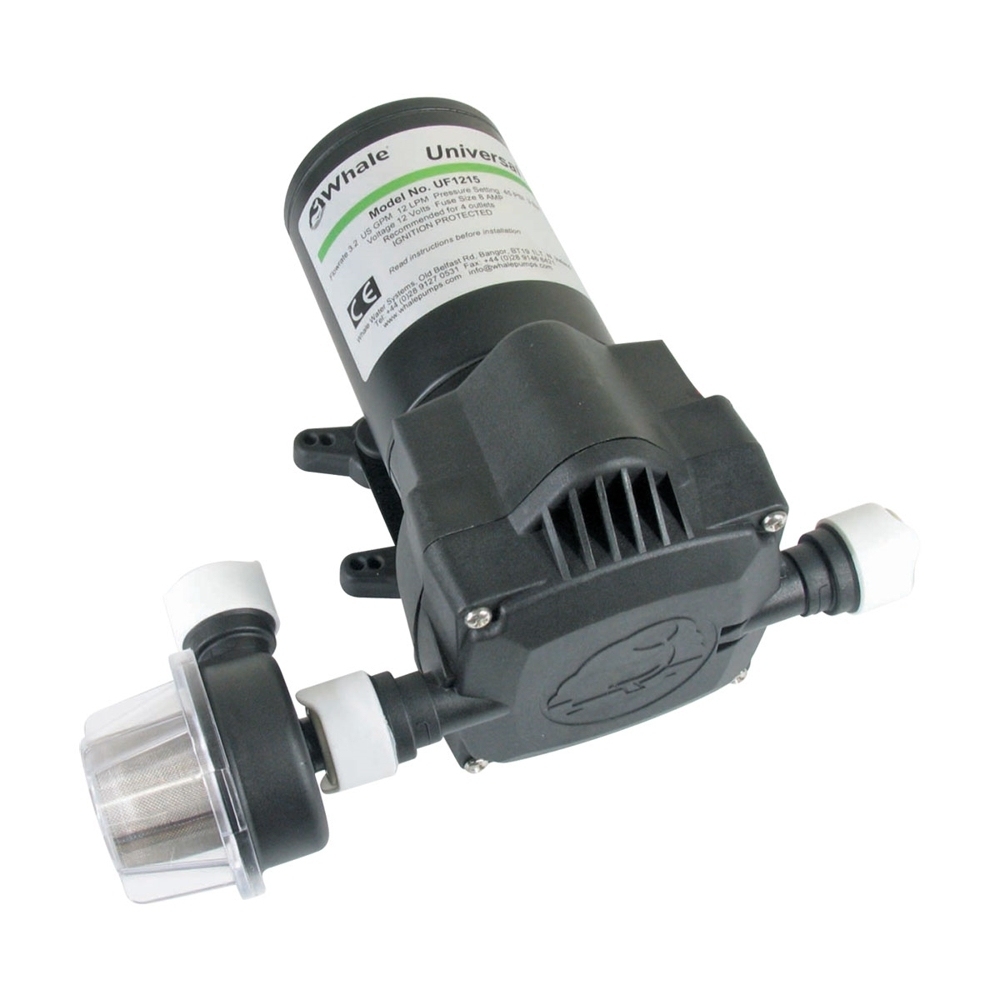

Whale Universal Pressure Pumps 12

Supplied with Quick Connect inlet and outlet for fast connection directly to System 15 plumbing. Includes pre-strainer/filter that pivots to suit plumbing direction. 2 x 13mm barbed hose connections and 2 x 1/2'' BSP threaded tails also included for connection to non Quick Connect 15 plumbing.

Features

• Probably the marine world's quietest range of pressure pumps

• A range of models for two, four and six outlet or wash down application in 12 or 24 volts

• Capacity of 8, 12 and 18 litres per minute

• Universal mounting feet arrangement fits almost any existing pressure pump mount hole configuration

• Suitable for use with fresh or saltwater

• Smooth constant flow

• Can be run dry without damage

• Extra protection and safety with wires and pressure switch housed internally

• Self priming up to three metres

• Aluminium motor housing

• Run indicator wire allows tell tale light and/or buzzer to operate remotely
  Pump Head Materials

• Glass filled polypropylene, neoprene, nitrile, stainless steel, butyl
  Specifications:


  Code	Volt	Capacity L/m	Capacity GPM	No. of Outlets	Max Head m	Lift m	Cut Out Pressure bar	Cut Out Pressure psi

  Code	Volt	Capacity L/m	Capacity GPM	No. of Outlets	Max Head m	Lift m	Cut Out Pressure bar	Cut Out Pressure psi
  133229	12	8	2.2	1-2	10	3	1	15
  133230	12	8	2.2	2-3	30	3	3	45
  133234	12	12	3.2	3-4	30	3	3	45
  133233	24	12	3.2	3-4	30	3	3	45
  133235	12	18	4.8	4-6	30	3	3	45
  133236	24	18	4.8	4-6	30	3	3	45

  Accessories
  133251 Replacement pump head assembly
  133252 Filter assembly
  130370 Replacement Microswitch
