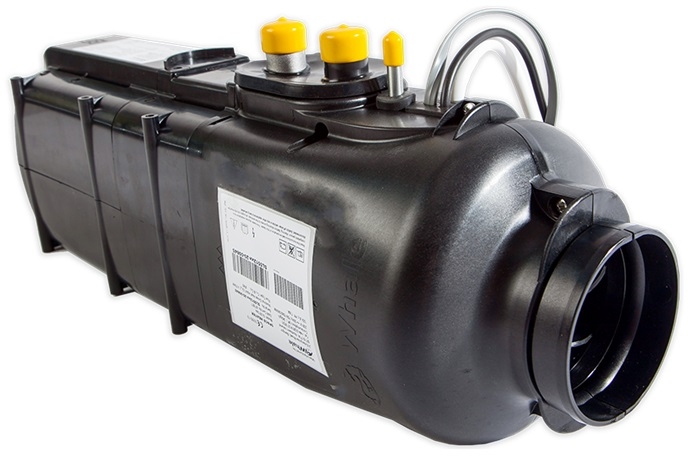

Whale Heat Air 5GTE Underfloor Space Heater 4.7kw - Gas

Heat things up

The Whale Heat Air 5GTE Underfloor Space Heater is an upgraded version of Whale’s 4G heater. Ideal for caravans and mobile homes, this compact heater runs on gas and electricity - giving you extra heating power. It’s also easy to use and heats up faster than regular heaters. Install the Whale Heat Air 5GTE Underfloor Space Heater so you’ll never feel cold again.

Whale Heat Air 5GTE Underfloor Space Heater Features:

• Suitable for caravans, motorhomes and camper vans
• Compact - saves space inside the vehicle
• Narrow rotatable design
• Faster heat up times
• Quiet night mode
• Easy to use, intuitive control panel
• Versatile - runs on gas and electric

Whale Heat Air 5GTE Underfloor Space Heater Specifications:

Conformity

• CE: 0086/11
• ECE R122: E13 122R - 000174
• ECE R10: E11 10R-10791
• Ingress protection: IP 45

Electric 230V AC

• Heat In-/Output: 0.75, 1.50, 3.00kW
• Current rating: 3.3, 6.6, 13.0A
• Rated Fuse Size: 16A

Gas

• Type: Butane/Propane 30mbar - CAT I3B/P(30)
• Heat input: 1.5, 3.2, 4.7kW
• Consumption: 109, 233, 342g/h
• Combined electric + gas output: 4.3kW

Electric 12V DC

• Voltage: 10.1 to 15.9V
• Current draw range: 0.6 - 3.3A
• Current draw average: 1.4A
• Standby*: 0.008A
• Rated fuse size: 10

Temperature

• Storage: -40 to +70deg C
• Operation: -20 to +50deg C
• Control: +5 to +32deg C

Physical

• Dimensions (LxWxH): 559 x 165 x 175mm
• Weight: 8.7kg
• Max air flow at 0.5mbar: 220m3/h
• Altitude range**: 0 - 2750m

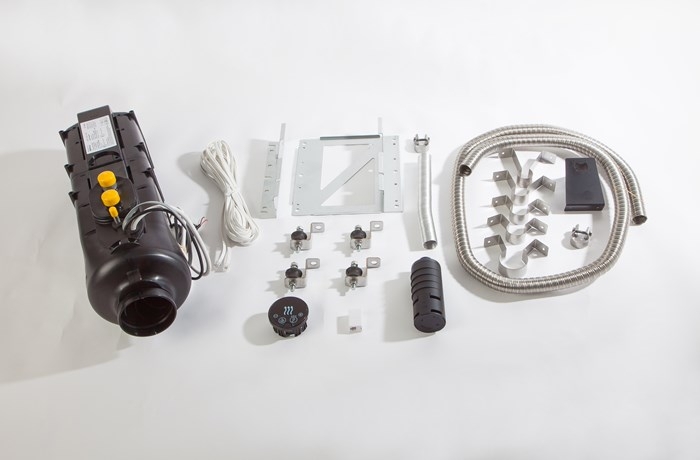

What’s in the box:

• Heat Air 5 GT unit
• Coms cable
• Control panel
• Flue kit

Whale Heat Air 5GTE Underfloor Space Heater Product Datasheet
