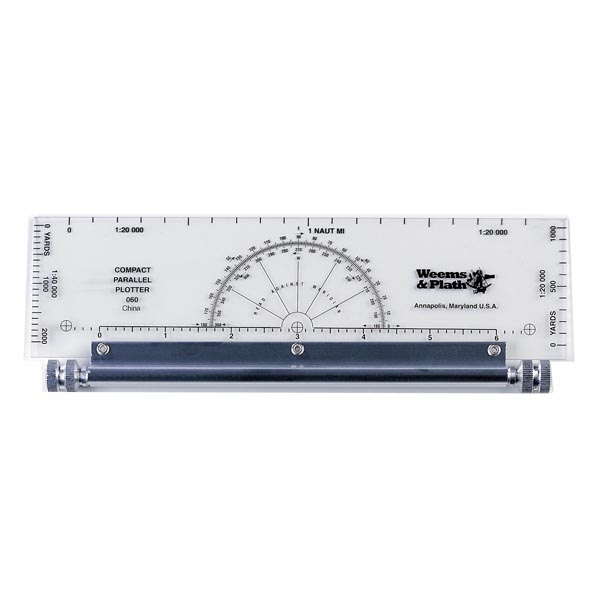

Weems & Plath Compact Parallel Plotter 8in

A versatile plotter that rolls smoothly and accurately

Plotting in restricted spaces can be accomplished easily with the Weems Compact Parallel Plotter. This 8.2-inch (20.8cm) rolling plotter is a smaller version of Weems & Plath's popular 12-1/2 inch (31.75cm) Weems Parallel Plotter (#120). It is mounted on an aluminum roller assembly that allows you to plot courses and parallel lines by simple direct transfer, without the space required for traditional parallel rules or triangles. The two rollers keep the plotter parallel to the chart as you slide it.

• 8.2-inches (20.8cm) long
• Durable acrylic plotter mounted on marine aluminum roller assembly
• Distance scales at 1: 20,000 and 1: 40,000
• Also displays inch scale
• Semi-circular protractor to plot courses against a meridian
• Plastic storage sleeve with instructions on back
• Lifetime warranty

• Length: 8.2 in (20.8 cm)
• Width: 2.6 in (6.6 cm)
• Height: 0.5 in (1.27 cm)
• Weight: 0.2 lb (1.27 cm)
• UPC Code: 721002000606
• HTS Code: 9017.20.7000
