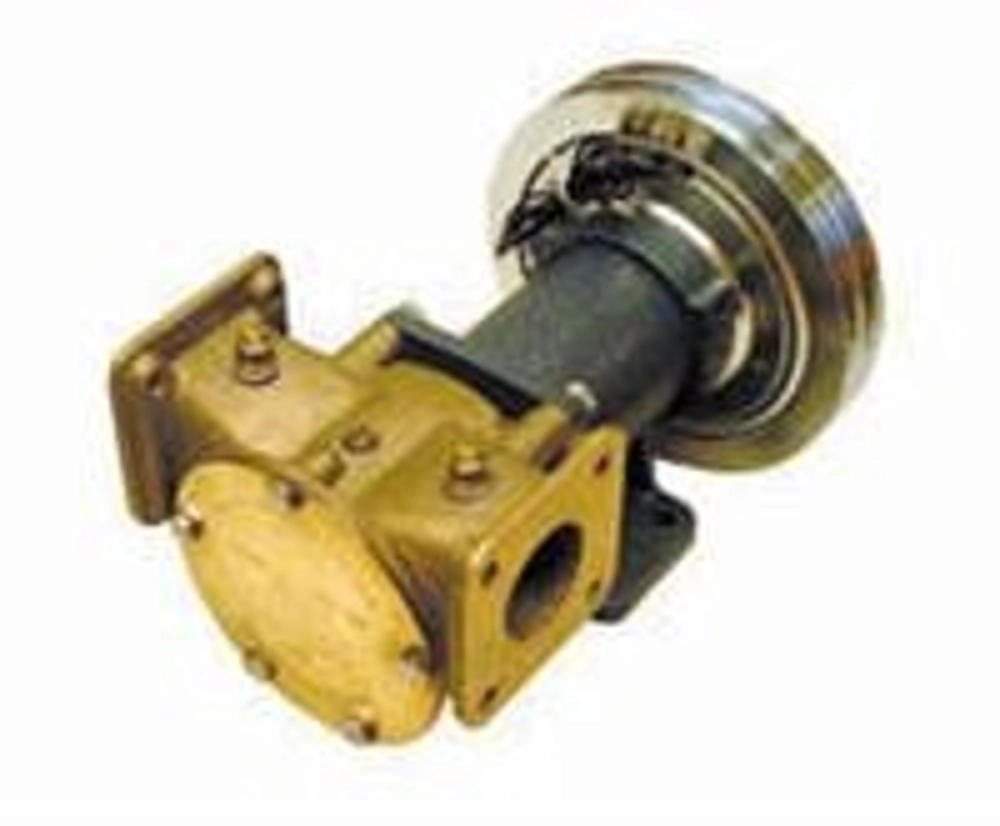

Johnson F9B-5600 VF Extra Heavy Duty Electro-Magnetic Clutch Pump

Click on the image above to view full picture

Details

Details

Flexible impeller pumps provide an efficient solution to most raw water pumping needs. The pumps are self-priming and can pass fairly large solids without clogging or damaging the pumps. Designed for a number of applications on board.

Features:
  • Pump body: Bronze. Connection for vacuum switch
  • Impeller: Neoprene
  • Shaft: Stainless steel
  • Shaft seal: Mechanical seal
  • Cam: Full or reduced
  • Pedestal: Cast iron with permanently lubricated double ball bearings
  • Clutch: Electromagnetic 12V or 24V DC
    2 x A or 1x B groove
    Pulley diameter 178 mm
  • Connection: Flange, Port adapter kit available.
    1inch - 2 1/2inch BSP or NTPF on request

Specifications:
Product No 10-13226-99
Description F9B-5600 VF
Impeller 09-814B
Connection 2in BSP
Length 11.4in
Width 5.98in
Height 6.86in
Weight 13.2kg


Product Data Sheet
