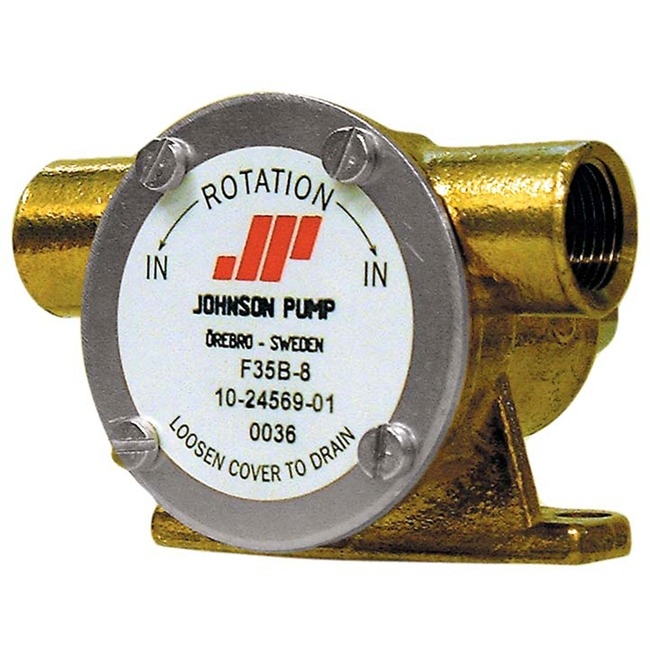

Johnson F35B-8 Heavy Duty Impeller Pump

#9092405
Warranty Badge - 12-Months
Ships Dec 4 - Dec 18
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $665.00

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

Details

Details

Compact design, raw water resistant pumps at an attractive price. With excellent self-priming capability, these pumps are ideal for applications like engine cooling, bilge pumping, wash-down, refuelling, emergency and fire fighting.  Also ideally suited for shore for emptying septic tanks, flushing, cleaning and filling water tanks. Flexible impeller pumps provide an efficient solution to most raw water pumping needs. The pumps are self-priming and can pass fairly large solids without clogging or damaging the pumps. Designed for a number of applications on board.  With an electro-magnetic clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch from Johnson Pump (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.

Automatically controlled pumps are available in sizes from 1in to 2.1/2in (20 L/min to 625 L/min), with clutches in 12 or 24 volts. Wearing parts are easily replaceable

Specifications:
Design features
Pump body: Bronze. Connection for vacuum switch
Impeller: Neoprene, Nitrile (oil resistant)
Shaft: Stainless steel
Shaft seal: F35-F7B : Lip or Mechanical seal
F8B : Mechanical seal
Cam: Full or reduced
Pedestal: Cast iron with permanently lubricated double ball bearings
Connection: 3/8in - 1 1/2in BSP or NTPF on request

Technical Specifications
Product No 10-24569-01
Description F35B-8
Impeller 09-808B-1
Connection 3/8in BSP
Length 4.29in
Width 3.14in
Height 1.18in
Weight 0.5kg
Drive Shaft Dia. 3/8mm


Instruction Manual
