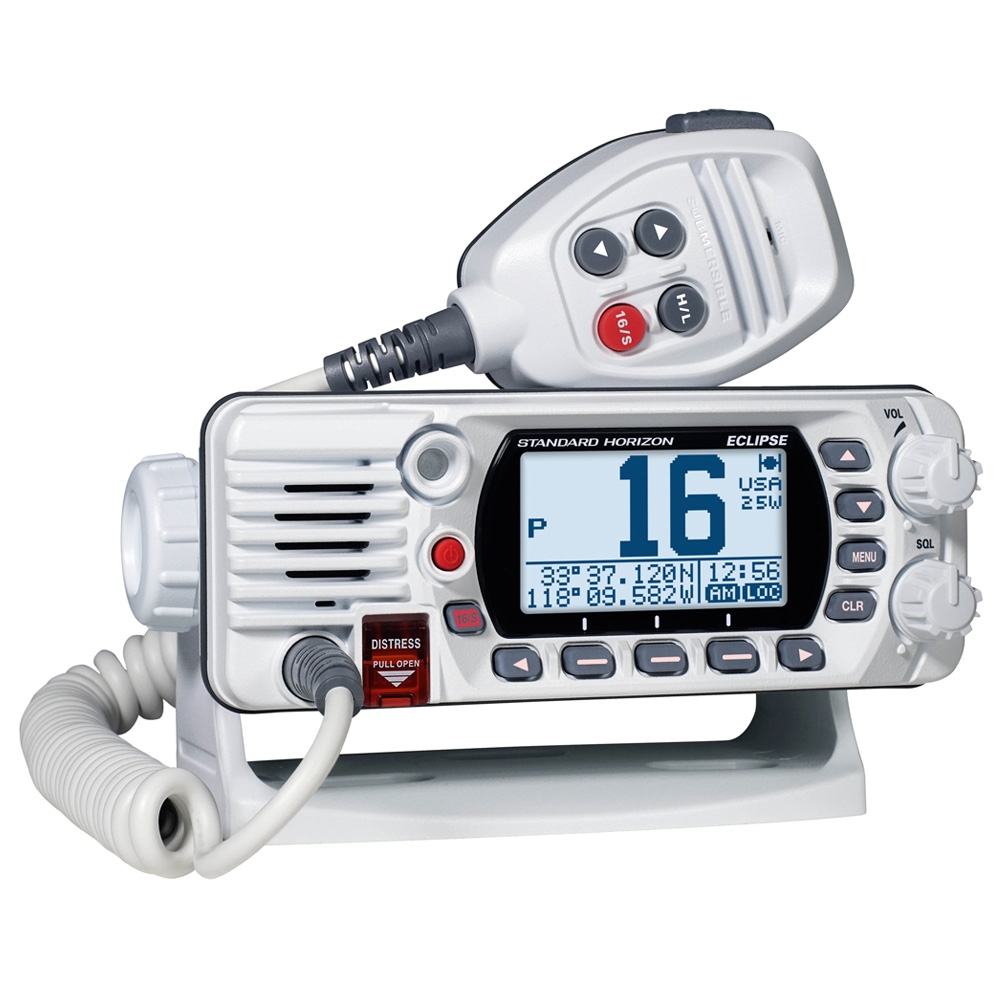

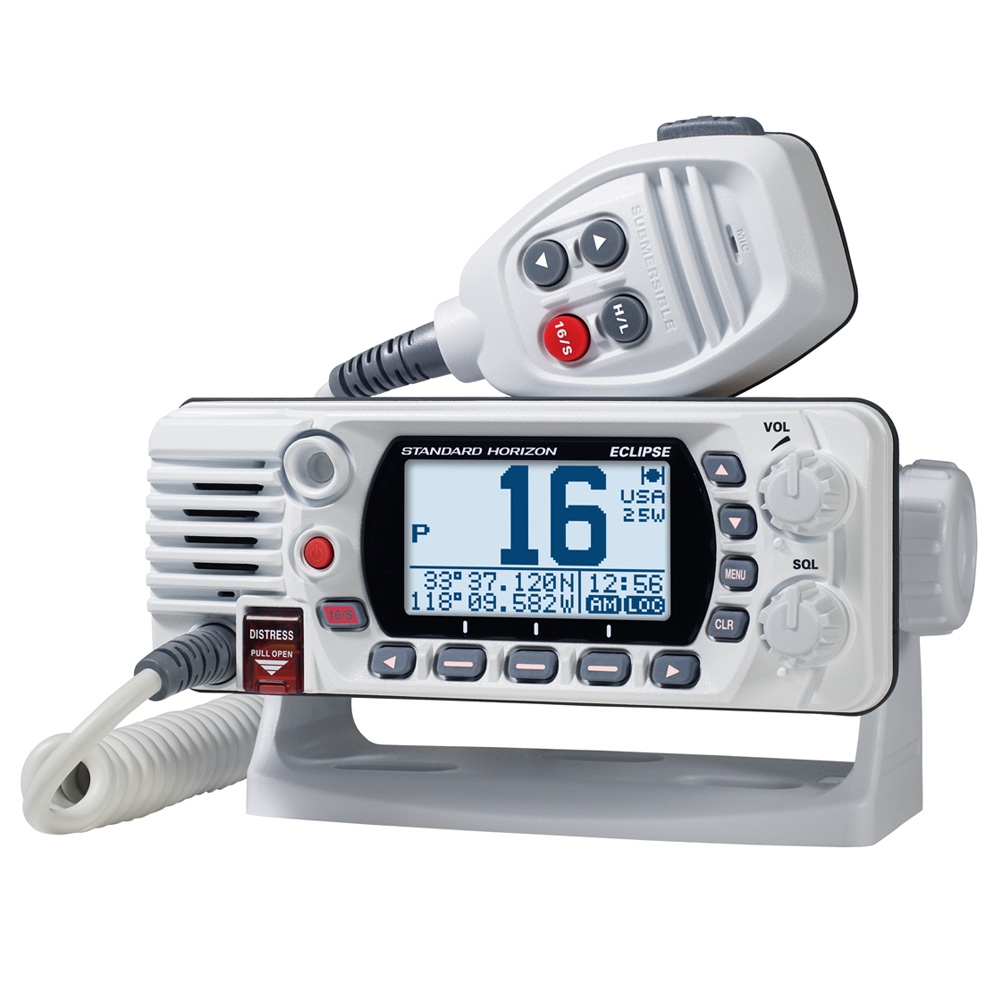

Standard Horizon Eclipse GX1400W Marine VHF Radio White 25W

Easy to use

The Standard Horizon Eclipse GX1400W Marine VHF Radio is designed to be used in USA, International and Canadian Marine bands. The GX1400 can be operated from 11 to 16 VDC and has a switchable RF output power of 1 watt or 25 watts.The GX1400 operates on all currently-allocated marine channels which are switchable for use with either International, USA or Canadian regulations. Emergency channel 16 can be immediately selected from any channel by pressing the red [16/S] key. NOAA weather channel can also be accessed immediately by pressing the [WX] soft key.

Other features of the GX1400 series include: scanning functions, priority scanning,dual watch, DSC position polling up to 6 vessels, high and low voltage warning, and GPS repeatability.

ITU-R M493-13 Class D Digital Selective Calling
The GX1400 Eclipse Series is an ITU-R M493-13 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.

The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.

New Dot Matrix Display
High resolution dot matrix display makes navigating the radios many features smooth and easy. Now with a new brighter backlight for better display contrast.

E2O Easy to Operate Menu System
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.

Standard Horizon Eclipse GX1400W Marine VHF Radio Features:

• Affordable Ultra Compact Class D Fixed Mount VHF Radio

• Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)

• Replaces older Eclipse+ and Eclipse DSC Models

• Radio controls on the Microphone

• E2O Easy to Operate Icon/Menu System

• Oversized Full dot matrix display (31 mm x 55 mm)

• Built in Separate Receiver for CH70 (Receiving DSC Calls)

• DSC test call and Auto DSC channel change selection

• GPS position and Time Shown on a Full-dot Matrix Display when Connected to a GPS Receiver

• NMEA In and Output Connections to a Compatible GPS Chart Plotter

• Programmable soft keys

• Automatically poll the GPS position of up to 6 ships using DSC

• Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)

• All USA/International and Canadian Marine Channels

• Preset key used to recall up to 10 favorite channels

• NOAA weather channel selection with Weather Alert

• Programmable Scan, Priority Scan, and Dual Watch

• Colour: White


Standard Horizon Eclipse GX1400W Marine VHF Radio Specifications:

General

• Channels: All USA, International and Canadian

• Normal Input Voltage: 13.8 VDC ±20%

• Current Drain:
  Standby: 0.3 A
  Receive (at Maximum AF Output): 1.2 A
  Transmit: 5.0 A (Hi); 1.0 A (Lo)

• DSC Transmitted Call Log: 30

• DSC Distress Call Log: 30

• DSC Received Call Log: 50

• Individual Directory: 60

• Group Directory: 30

• Display Type: 2.6" x 1.4" (55 x 31 mm) | Full Dot Matrix (102 x 56 pixels)

• Dimensions (W x H x D): 6.14" x 2.40" x 3.94" (156 x 61 x 100 mm)

• Flush-Mount Dimensions (W x H x D): 5.16" x 1.97" x 4.72" (131 x 50 x 120 mm)

• Weight: 1.76 lbs (800 g)


Transmitter

• Frequency Range: 156.025 MHz to 161.600 MHz (International)

• RF Output: 25 W (Hi); 1 W (Lo)

• Conducted Spurious Emissions: Less than –80 dB (Hi); –66 dB (Lo)

• Audio Response: within +1/–3 of a 6 dB/octave pre-emphasis characteristic at 300 to 3000 Hz

• Audio Distortion: Less than 5 %

• Modulation: 16K0G3E (for Voice), 16K0G2B (for DSC)

• Frequency Stability: ±0.0003 % (–4°F to +140°F (–20°C to +60°C))

• FM Hum and Noise: 50 dB


Receiver

• Frequency Range: 156.050 to 163.275 MHz

• Sensitivity
  20 dB Quieting: 0.30 µV
  12 dB SINAD: 0.25 µV
  Squelch Sensitivity (Threshold): 0.13 µV
  Modulation Acceptance Bandwidth: ±7.5 kHz

• Selectivity (Typical):
  Spurious and Image Rejection: 75 dB for Voice (70 dB for DSC)
  Intermodulation and Rejection: 70 dB for Voice (70 dB for DSC)

• Audio Output: 4.5 W (at 4 ohms external speaker output)

• Audio Response: within + 1/–3 of a 6 dB/octave de-emphasis characteristic at 300 to 3000 Hz

• Frequency Stability (–4°F to +140°F (–20°C to +60°C)): ±0.0003 %

• Channel Spacing: 25 kHz

• DSC Format: ITU-R M.493-13
