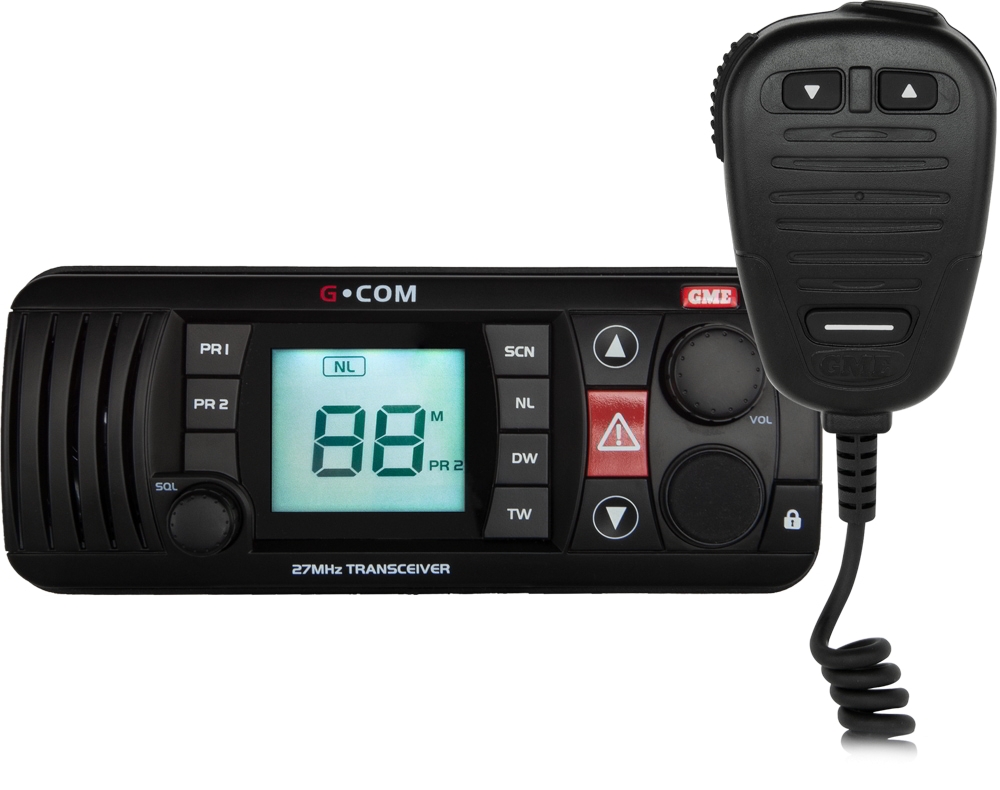

GME GX400B Fixed Mount Marine Radio 27MHz Black

Uses 27MHz marine band and 27MHz citizen band transceivers in the one unit

Built tough to withstand some of the harshest environments, the GME GX400B Fixed Mount Marine Radio has an IPX7 ingress protection rating meaning it can be positioned on the dashboard by flush mount or gimbal bracket mount as supplied. With a compact mounting depth of only 45mm, it’s possible to mount this compact unit into tight locations where space is limited.

For enhanced clarity and ease of use, the GX400B is equipped with dual speakers – one in the front panel and a second built into the waterproof speaker mic. The provision for an additional extension speaker ensures clear audio no matter where you are on the vessel.

Featuring programmable channel scanning, dual and tri-watch functions, you’ll never miss important communications. The large red ‘Channel 88’ button enables simple emergency communication in the case of distress.

GME GX400B Fixed Mount Marine Radio Features:

• Marine and CB frequencies
• Large backlit LCD screen
• Channel scanning with memory
• Two priority channels
• Waterproof speaker microphone
• IPX7 ingress protection
• Dual watch & triple watch functions

GME GX400B Fixed Mount Marine Radio Specifications:

• Complies with: AS4367:2007
• Frequency Range: 26 – 30 MHz
• Channel Set: Australian 27 MHz CB (26.965 – 27.405 MHz)
• Australian Marine (27.680 – 27.980 MHz)
• Modulation: AM (A3E)
• Supply Voltage: 12 V DC nominal
  10.8 – 15.6 V DC range
• Frequency Error: ±1.4 kHz
• Dual Watch: Monitor time – 250 ms
• Scan Rate: 5 channels/second
• Max Modulation Depth: 1 00%
• Carrier Output Power: 4 watts max
• Spurious Emissions: < – 26 dBm
• Receive Sensitivity for 12 dB
• SINAD @ 30%Modulation: – 110 dBm
• Max Squelch: < – 65 dBm
• Adjacent Channel Selectivity: ≥ 55 dB
• Spurious Response Immunity: ≥ 55 dB
• Conducted Spurious Radiation ≤ – 57 dBm
• Audio Output Power 8 Ohms: 2.5 watts
• Dimensions: 65 (H) x 75 (D) x 164 (W) mm
• Weight: 602 grams
• Temperature Range: – 0°C to + 55°C

What's in the Box:
• 27MHz Marine Radio (GX400B)
• Cabin Cover
• Mounting Bracket
• Mounting Hardware
• Microphone Bracket
• 12V DC Power Lead

GME GX400B Fixed Mount Marine Radio 27MHz Black Manual
