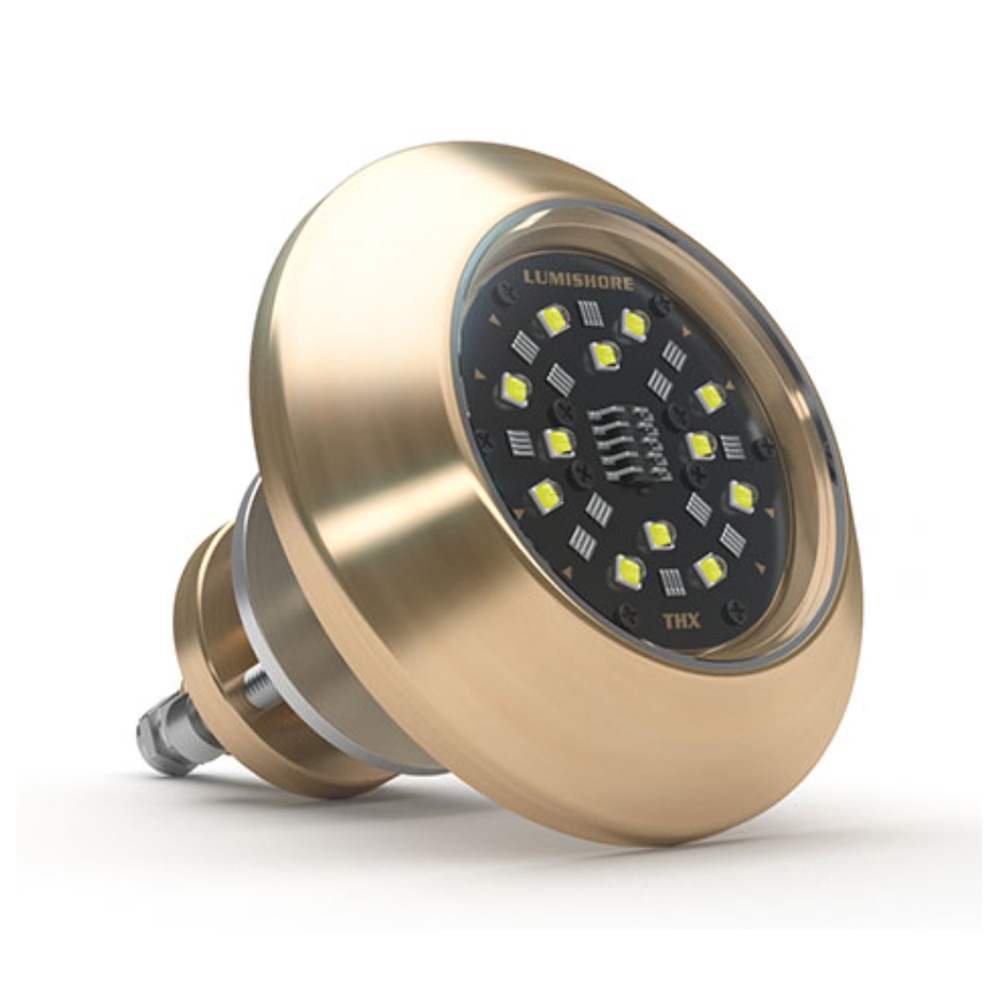

Lumishore THX203 Thru-Hull Underwater LED Light White

Ultra-slim lighting

The Lumishore THX203 Thru-Hull Underwater LED Light, the world's first ultra-slim thru-hull light with a shaft of just 16mm diameter and 96mm long. Ideal for boat owners seeking the security of a thru-hull fitting with the hull-cut out and price point of a surface-mount. The THX203 can easily be contolled by a simple on/off switch or optional Wireless Keyfob Remote.

The petite thru-hull is type-approved and can be fitted nearly anywhere on transoms, hull sides and bottoms of almost any type of boat up to 24m (80'). Simple 2-wire installation with no external drivers make this one of the easiest thru-hull lights to install.

Lumishore THX203 Thru-Hull Underwater LED Light Features:

• Single-colored light: Blue
• Ultra-slim thru-hull shaft
• Internal driver
• 5,600 verified fixture lumens
• Ultra-wide110° beam angle
• 2-Year Warranty

Lumishore THX203 Thru-Hull Underwater LED Light Specifications:

General

• Part Number: White: 60-0312
• Available Colours: Single Color (White)
• Lumens: 12,600
• Fixture Lumens (White): 5,600
• Number and Type Of LED: White - 12 x 10W High Power LEDs
• LED Power - HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 2 Years
• User Control Options: On/Off Switch (Third party supplied)
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens

Technical

• Driver: Internal Driver
• Supply Voltage Range (12V or 24 V only): 10.5 – 31 V DC
• Max Current Draw 12/24V: 4.9 A / 2.4 A
• Surge Protection: Yes (3,000V)
• ATRB (Automatic Thermal Roll-Back): Yes
• Low Voltage Protection: Automatic Voltage Roll-Back Control and Low Voltage Cut Out
• Automatic Power Control: Yes – Intelligent Power Management
• “Soft Start” Electronics Protection: Yes
• Reverse Polarity Protection: Yes
• In Rush Current Protection: Yes
• Power Line Noise Suppression: Yes
• Bonding: Required (Bonding Connection Provided on Light)
• Electrical Installation: Simple 2 Wire Connection
• Max Vessel Length: 24m (80')

Physical

• Beam Angle: 110°
• Water Ingress Protection Rating: IP68
• Light Face Diameter: 95mm (3.75")
• Profile (Height) of Housing: 18mm (0.71")
• Shaft Length: 96mm (3.78")
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens
• Light Cable Length: 2m (6'6") Standard (Can be extended - distance depends on cable type)
• Hole Cut-Out for Shaft (Hole Cutter Size): Metric: 16.5mm | Imperial: 21/32" (0.656")
• Weight: 800g (1.76 lbs)
• Mechanical Installation: Thru-Hull Fitting

Product Data Sheet
