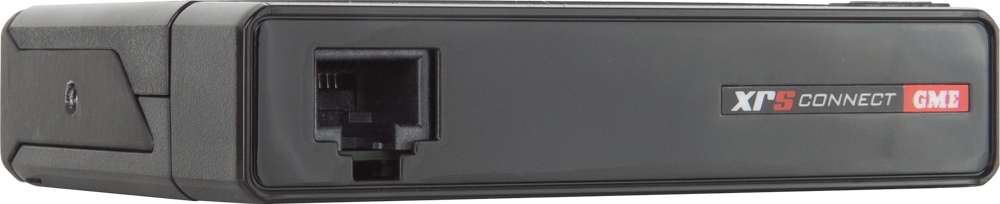

GME XRS-330CTP Connect UHF CB Radio Touring Pack

Complete with everything to suit your touring rig of choice

The GME XRS-330CTP Connect UHF CB Radio Touring Package is a complete kit, designed to suit your touring rig of choice. This kit pairs the popular XRS-330C Super Compact UHF CB Radio, with the AE4018BK1 elevated-feed antenna, the perfect solution for those users looking for the ultimate communications setup for their 4WD tourer. Designed to be smart, adaptable and rugged, it features a professional grade speaker microphone complete with a class-leading 2-watt speaker, customisable buttons and a high contrast OLED screen guaranteeing a crystal clear, anti-glare display.

Enabled by Bluetooth wireless technology, the GME XRS-330CTP Connect UHF CB Radio Touring Package is the first of a new generation of connected UHF CB radios with unique features never seen before. It’s the first ever UHF CB radio with App control, introducing new features such as creating and sharing scan lists and providing instant access to the entire Australian and New Zealand registered analogue frequency database.

As with many other smart devices, the GME XRS-330CTP Connect UHF CB Radio Touring Package is software upgradable via the XRS Connect app, keeping users up-to-date with the latest features and technology. GME is committed to releasing a minimum of one new upgrade for XRS Connect per year to ensure GME's users always have access to the latest technology available.

GME XRS-330CTP Connect UHF CB Radio Touring Package Features:

• Individually Programmable Duplex Function
• Squelch Tail can be switched off to eliminate the audible noise burst normally heard when the Squelch closes
• User Programmable Receive Channels
• Digital Signal-Strength Meter
• Scanning and memory functions: Microprocessor Controlled Frequency Synthesiser, Programmable Scan Function, Priority Channel
• Digital Signal Processing (DSP)
• Advanced Signal Management (ASM)
• Dynamic Volume Control (DVC)
• Voice Inversion Scrambler
• In-built CTCSS and DCS
• In-Built SelCall with Quiet Mode
• Over Voltage Protection
• Rugged Construction
• Full Function Controller Microphone
• OLED Display

GME XRS-330CTP Connect UHF CB Radio Touring Package Specifications:

General

• Compliance: Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service
• Frequency Range TX: 476.425-477.4125 MHz
• Number of Channels: 80
• Channel Spacing: 12.5 kHz
• Operation Mode: Simplex or half Duplex with repeater talk-around
• Scanning Speed: 20 ms per channel (50 channels per second)
• Antenna Impedance: 50 Ohms nominal
• Nominal Battery Voltage: 12 volts DC
• Operating Voltage Range: 10 - 16 volts DC
• Battery Polarity: Negative Earth
• Standard Test Voltage: 13.8 volts DC
• Over Voltage Protection: 30 volts DC maximum. At 18 volts DC the channel display flashes‘Hi DC’ for 5 seconds on receive. The RF power is reduced and TX flashes on transmit
• Reverse Voltage Protection: Diode Crowbar
• Over-current Protection: In-line 2 amp fuse
• Operating Temperature: -10° C to +60°C

Transmitter

• RF Output: 5 watts
• Spurious Emission: < - 70 dBc
• Frequency Error: < ± 1.5 kHz
• Modulation: FM
• Maximum Deviation: < ± 2.5 kHz at + 20 Db AF limiting
• Transmit Frequency Response: +6 dB per octave 300 Hz to 3 kHz + 1 . 3 dB
• Demodulated Audio Signal to Noise: >45 dB unweighted
• Current Consumption: 1.7 amps with 50 Ohms termination

Receiver

• Intermediate Frequencies: 38.85 MHz, 450 kHz
• Sensitivity: -122 dBm for 12 dB SINAD unweighted
• Selectivity: -6 dB at ± 3.5 kHz, -60 dB at ± 12.5 kHz
• Intermodulation Immunity: -72 dB
• Blocking Immunity: : -98 dB
• Spurious Response Immunity: 70 dB
• Audio Output Power: 3 watts average into 4 Ohms
• Audio Signal to Noise: >45 dB unweighted
• Receive Frequency Response: -6 dB/Octave de-emphasis 300 Hz to 3 kHz +1 -3 dB
• Current Consumption: <75 mA muted, 750 mA full volume
• Conducted Spurious Emmission: <70 dBm

What’s in the box:

• XRS Connect UHF CB Radio (XRS-330C)
• Professional Grade Speaker Microphone (MC664B)
• Elevated-feed Antenna (AE4018BK1)
• Microphone Mounting Bracket (MB206)
• Microphone Extension Lead (LE040)
• Microphone Extension Adaptor Kit (AD008)
• 12V DC Power Lead (LE09)
• Mounting Bracket
• Mounting Hardware
• Quick Start Guide

GME XRS-330CTP Connect UHF CB Radio Touring Package Data Sheet
