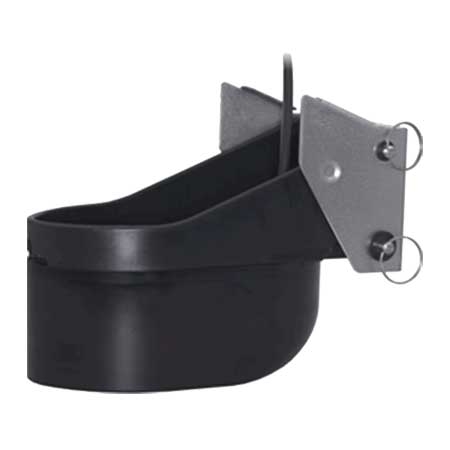

Raymarine TM275LH-W Wide Beam Transom Mount 1kW CHIRP Transducer
Raymarine TM275LH-W Wide Beam Transom Mount 1kW CHIRP Transducer
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Get more coverage under your boat!
Offering a high frequency range of 150-250kHz and a constant 25 degree beamwidth, the Raymarine TM275LH-W Wide Beam Transom Mount 1kW CHIRP Transducer is truly broadband at its best. In addition to improved CHIRP-ready performance, this wide beam transducer will let you achieve twice the coverage under your boat.
With a constant 25 degree angle across the entire frequency band, you get vast bottom coverage and precise fish detection in the upper water column that can sometime go unseen with other narrow beam transducers. The wide beam format also creates crisper and larger return on the display.
Improved Beamwidth
Current CHIRP transducers have a narrow beamwidth ranging from 10º to 4º on the high frequency band. The beamwidth of the new wide beam CHIRP transducers is a constant 25º across the entire frequency band—ultimately delivering more than 2x the coverage under the boat than other CHIRP models
Raymarine TM275LH-W Wide Beam Transom Mount 1kW CHIRP Transducer Features:
- Ideal for marking baitfish and game fish in shallow to
mid-water depths of 300ft - 600ft
- Depth and fast-response water-temperature sensor
- Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth
- High—CHIRPS from 150 kHz to 250 kHz 25° constant
beamwidth
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus
everything else in the bandwidth
- 1000W depth and temperature transducer
- Boat Size: 8 m (25’) and above
- Hull Type: Fiberglass or wood
- Urethane transducer housing with stainless steel
bracket
- Cable length: 12m
- Bracket included
- Dimensions: 260 x 108mm
- Bracket width: 137mm
Raymarine TM275LH-W Wide Beam Transom Mount 1kW CHIRP Transducer Specifications:
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
- Weight: 4 kg (8.9 lb)
