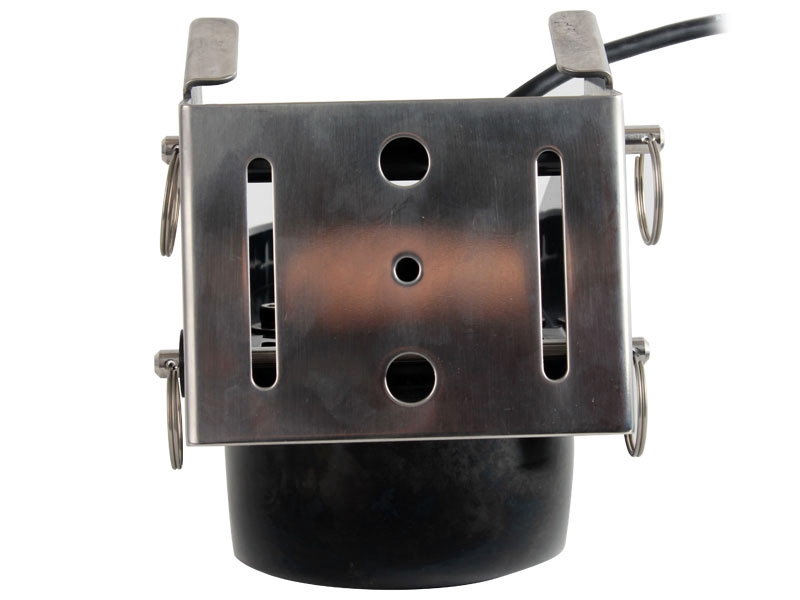

Airmar TM260 Transom Mount Transducer 1kW 50/200kHz for Raymarine A-Series

Get crystal clear imaging with this extremely high performance Transom Transducer from Airmar

This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Airmar TM260 1KW Transom Mount Transducer Features:

• RMS power 1000W (works with 600W or 1000W sounders)

• Designed for bottom fishing

• Wide 19° beam at 50 kHz

• Narrow 6° beam at 200 kHz

• Depth readings up to 1800-2500 ft at 50kHz, 700-1000 ft at 200kHz

• For larger trailered boats 8 m to 12 m (25’ to 40’) with outboards and I/O’s

• Interfaces to any 600 W or 1 kW sounder

• Depth and fast-response water-temperature sensor

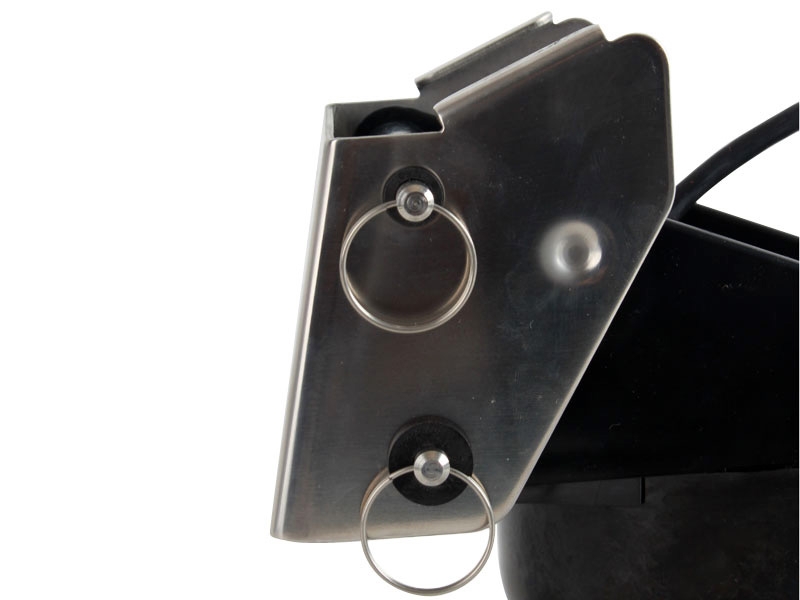

• Kick-up assembly locks in the “up” position and will not damage the transom

• Accommodates transom angles between 3° and 21°

• Urethane housing

• 1M cable attached

• Compatible with Raymarine A-Series units : DS400X, DS500X, DS600X, A50D, A57D, A65D, A70D, DSM25, a65, a67, e7D, c97, e97, c127 and e127

Airmar TM260 1KW Transom Mount Transducer Specifications:

• Weight: 4 kg (8.9 lb)

• Hull Deadrise: Up to 28°

• Acoustic Window: Urethane


Airmar TM260 1KW Transom Mount Transducer Comparison

• P66 : 600W : Good : Benchmark model for comparison

• TM258 : 1kW : Better : 25 times more sensitive at 50 kHz, 16 times more sensitive at 200 kHz

• TM260 : 1kW : Superb : 50 times more sensitive at 50 kHz, 13 times more sensitive at 200 kHz


Note: Not compatible with Raymarine Axiom and Axiom Pro range.

Airmar TM260 1KW Transom Mount Transducer Instruction Manual
