Trojan Trailer Taper Leaf Spring Kit

#9143698
Warranty Badge - 12-Months
Ships Dec 4 - Dec 19

Seen a lower price? Ask us to beat it

Product Name Price Qty
Trojan Trailer Taper Leaf Spring Kit 600kg 765mm

Ships Dec 4 - Dec 19

NOW $255.00
Trojan Trailer Taper Leaf Spring Kit 1000kg 765mm

Ships Dec 4 - Dec 19

$275.00 NOW $229.00
Trojan Trailer Taper Leaf Spring Kit 1400kg 765mm

Ships Dec 4 - Dec 19

$319.00 NOW $299.00
Add Items to Cart

Click on the image above to view full picture

More Views

Details

Details

Ensure proper suspension

Leaf springs are an integral part of your trailer's suspension system. These tough pieces allows your suspension to move with the bumps in the roadway so that the energy is not transferred from the wheels to the chassis, ensuring a smooth ride.

Whether you're building your own boat trailer, replacing worn out or broken leaf springs or looking to upgrade, the Trojan Trailer Taper Leaf Spring Kit comes with everything you need to get you sorted for your next travel. These Trojan springs are made with one leaf tapered from the centre to each end. Since leaf springs work in pairs, they typically wear out in pairs, so replacing both springs at the same time helps ensure proper suspension performance. This kit comes with 1 pair leaf springs, hangers, shackle bolts, slippers and galvanised U-bolt plates, plus 4x galvanised U-bolts.

Trojan Trailer Taper Leaf Spring Kit Features:
  • 1 Pair leaf springs
  • 1 Pair hangers
  • 1 Pair shackle bolts
  • 1 Pair slippers
  • 1 Pair U bolt plates - galvanised
  • 4x U bolts - galvanised

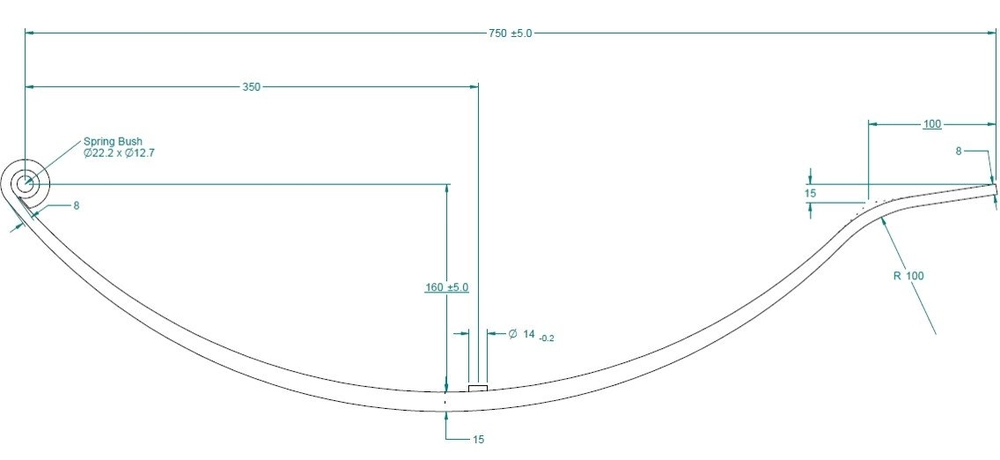

Trojan Trailer Taper Leaf Spring Kit Specifications:

Part No:Capacity per Pair:No of leaves & sizes:O/A length / Eye to center bolt:Eye Dia:
T267060600kg1 - 45mm Taper65 - 350mm 1/2 inch
T267100 1000kg 1 - 45mm Taper765 - 350mm 1/2 inch
T267140 1400kg 1 - 45mm Taper765 - 350mm1/2 inch
