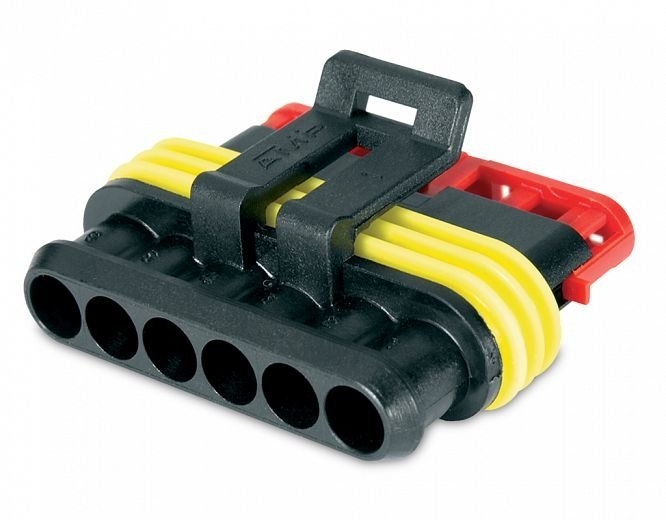

Hella Marine Super Seal Connector 6 Pole Plug Qty 2
Hella Marine Super Seal Connector 6 Pole Plug Qty 2
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Super seal connector housings were developed to satisfy increasing requirements for safety and reliability in the field of electrical connections. The connectors can be connected to existing components and used with the equipment presently in use in the automotive industry (sensors, oil pressure sensors, water temperature monitoring circuits, etc.).
| Note | For P' and S' versions only the bare connector is supplied. Select appropriate seals and terminals to suit. Plug and socket kits come complete with terminals and seals. | ||||
|---|---|---|---|---|---|
| Seals | Made from silicon rubber. Seals shaped for easy insertion into connector. The hoop rings in the crimping area ensure excellent pull relief for the terminals. Suitable with insulation 1.5-33mm diameter. | ||||
| Connector | Housing and secondary lock - polyamide 6.6 glass filled | ||||
| Resistant to | Ozone, salts (CaCI2-NaCI), petrol, diesel fuel, anti-freeze, ATM and engine oil. | ||||
| Temperature Range | -40 degreesC to 125 degreesC | ||||
| Insulation resistance | Minimum 200M? | ||||
| Terminals |
| ||||
| Current rating | 14A maximum | ||||
| Insert force | Maximum 8N | ||||
| Contact resistance | Maximum 3M? | ||||
| Connector Compliance |
|
