Hella Marine LED Lamp Distribution Box

#9203907
Warranty Badge - 12-Months
Ships Nov 14 - Nov 26
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $339.00

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

  • Quick Connectivity
  • Easy Trouble Shooting
  • Suitable for Trucks, Heavy Trailers
      and Special Purpose Vehicles
  • Looking for a simple and reliable way to connect lighting to your trailer harness? HELLA's revolutionary LED Lamp Distribution Box is the quick connect, easy trouble shooting solution for ?tting LED lamps to heavy trailers and custom vehicles.

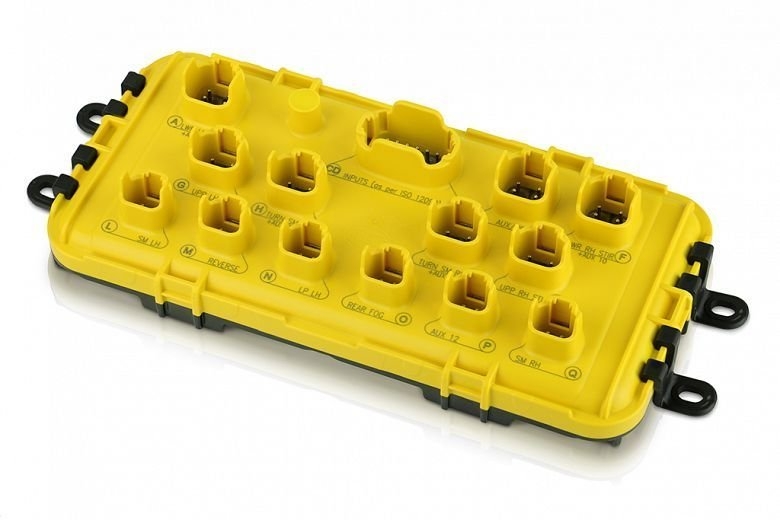

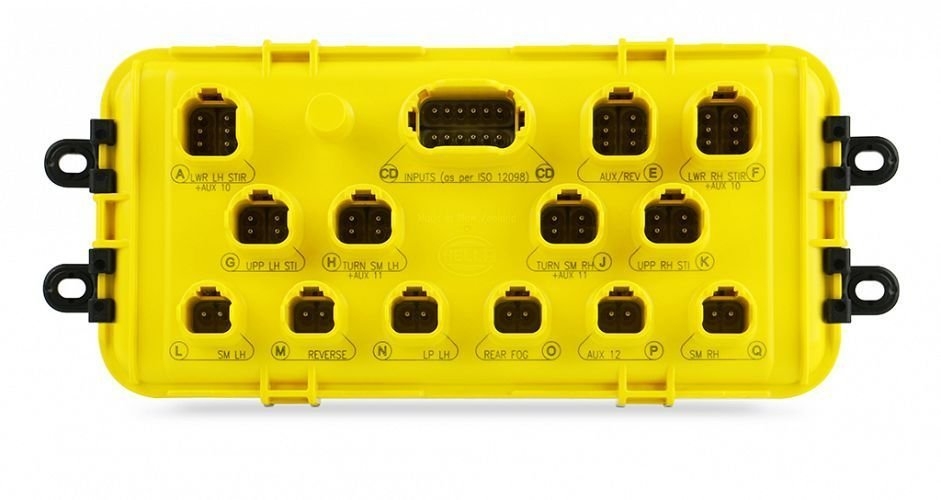

    The LED Lamp Distribution Box is designed with integrated Deutsch DT connector sockets that provide easy and reliable lamp connection. Internal electronics isolate individual circuits to reduce lamp outage, to ensure a long life and reliable lamp operation. Should a fault occur, this also means fast repair times and less down time for the vehicle. A completely sealed housing and durable materials provide protection against water, dust and high pressure/steam jet cleaning.






     Simple Installation and Quick Connectivity

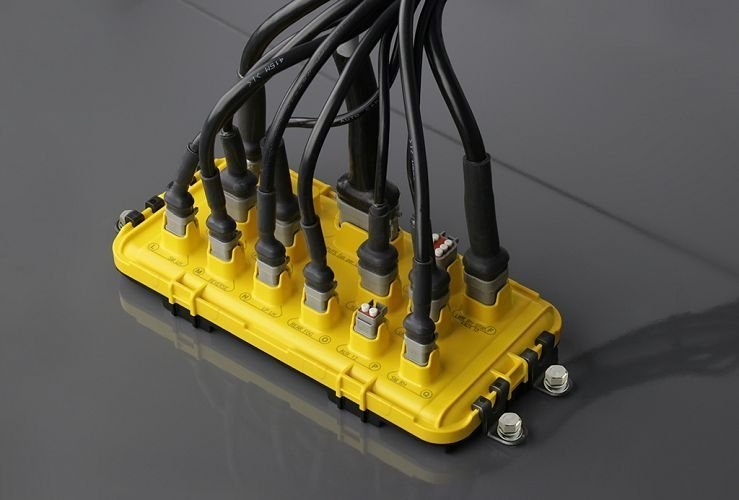

    Utilising industry standard Deutsch Connector Plugs, lamps can be quickly and easily connected to the LED Lamp Distribution Box. Versatile mounting clips can be placed in multiple positions to offer various mounting points.
     Completely Sealed - Non-serviceable
    The IP6K9K rated housing prevents any moisture, dust or other contaminants from affecting internal electronics. Because there are no serviceable parts or need to open the Distribution Box you can avoid potential damage to other circuits when replacing lamps.




    Faults Isolated to Single Circuit
    Each output circuit is individually protected meaning should you have a fault it will not cause a malfunction with other lamps. This facilitates fast fault finding by narrowing down the single circuit. This means faster repair times and less down time for the vehicle.




    Reduced Installation and Service Costs
    Because the unit is designed for quick and simple connectivity, costs are reduced and the installation can be done in a short time frame.

    Conventional junction boxes can be complicated and prone to faults when opened and serviced. When a fault occurs multiple lamps and circuits can be affected, resulting in a vehicle not being safe to operate. With the new HELLA LED Distribution Box, should a fault occur on a particular circuit, it will be isolated - meaning faster fault finding and repair, therefore the vehicle can be back up and operational in a much faster time frame.

    The costs of servicing the innovative LED Distribution Box can be minimal when you consider how costs can quickly mount. A call out after hours can cause labour costs which quickly accumulate. Possibly the largest cost of all is the vehicle not being operational and the roll-on effect this can have for driver hours and delivery deadlines.

     Auto-Reset Fuse Protection
    Should a fault occur; internal thermal fuse protection will isolate the fault to that single circuit. To reset the internal fuse simply remove power for a few seconds and the fuse will reset once cooled. After the fault is repaired and power reapplied the circuit will reset and be operational again.
    PRODUCT SUITABILITY
    Designed for low voltage LED lamps, the LED Lamp Distribution Box has circuits that are individually protected to 1.3A each (@ 50 degreesC).

    Specifications:
    Housing materialASA Plastic

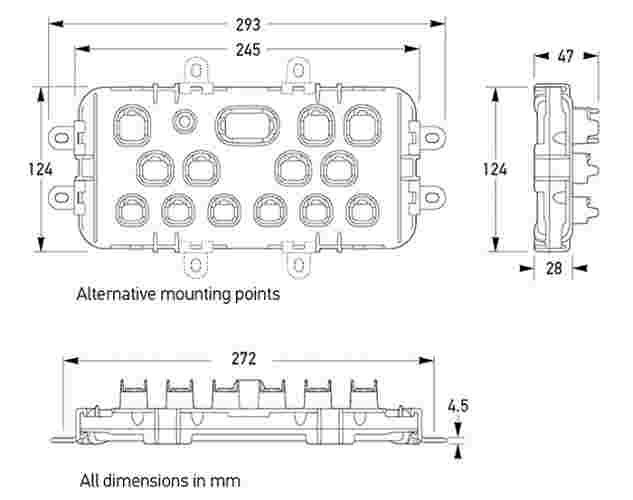

    MountingHorizontal or Vertical, Surface mount (4x mounting clips provided)
    Plug ConnectionsDeutsch DT Plugs (not provided)
    VoltageMultivolt - suitable for 12 and 24 volt systems
    Current per output pin
    Temp ( degreesC)20254050
    Max Output (A)1.851.741.531.37
    Maximum Input13A (Total system)
    Operating Temperature-40 degrees to 50 degrees Celsius
    Protection
    IP 6K7 (Protection against dust and temporary water immersion)
    IP 6K9K (Protection against dust and high pressure/steam jet cleaning)
    Accessory8HG 244 382-001 Protective Cover
    8HS 248 756-007 DT Locking Clip (Pack of 15)
    ApplicationsTruck, trailers or special purpose vehicles

    Product Data Sheet
