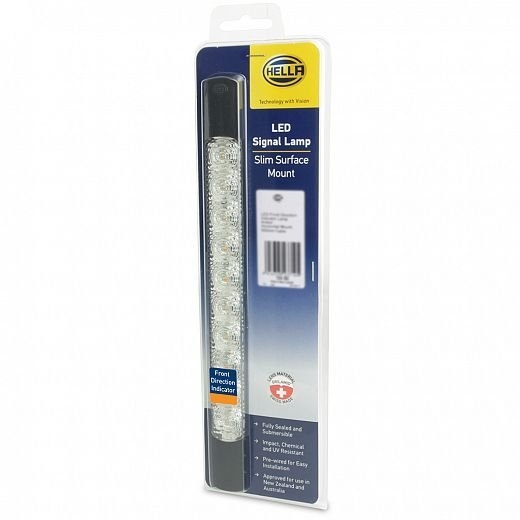

Hella Marine LED Front Direction Indicator Lamp Horizontal Mount 12v

#9204497
Warranty Badge - 5-Years
Ships Dec 9 - Dec 20
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $74.99

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

Surface mount LED front direction indicator lamp that is designed with an for significantly improved side visibility.

Featuring a low profile, ultra durable nylon lens for extreme impact, , chemical and stress resistance. Optic appears clear until illuminated.

Features:
  • Ultra slim with a profile height of only 11mm.
  • Low power consumption.
  • Grilamid lens.
  • Ultra long service life.
  • Surface mount.

    RFCommSafe - To view and download more information please


Specifications:
OpticsOptic appears clear until illuminated
MountingSuitable for horizontal or vertical mounting with tolerance. See diagram.
Power Consumption3W
Protection
Reverse polarity protection.
IP 6K7(Protection against dust and temporary water immersion)
IP 6K9K(Protection against dust and high-pressure/steam jet cleaning)
Cable Length
Box packPre-wired with 2.5m of multi-core cable.
Blister packPre-wired with 0.5m of multi-core cable.
Lens MaterialGrilamid
Spare Parts
9HD 980 885-007White screw caps (Pack of 4)
9HD 980 885-017Charcoal screw caps (Pack of 4)
9HD 980 885-107Chrome plated screw caps (Pack of 4)
Compliance
Horizontal E24 5869 Vertical E24 5890ECE R6/01
NoteIncludes mounting screws and charcoal screw caps.

Product Data Sheet
