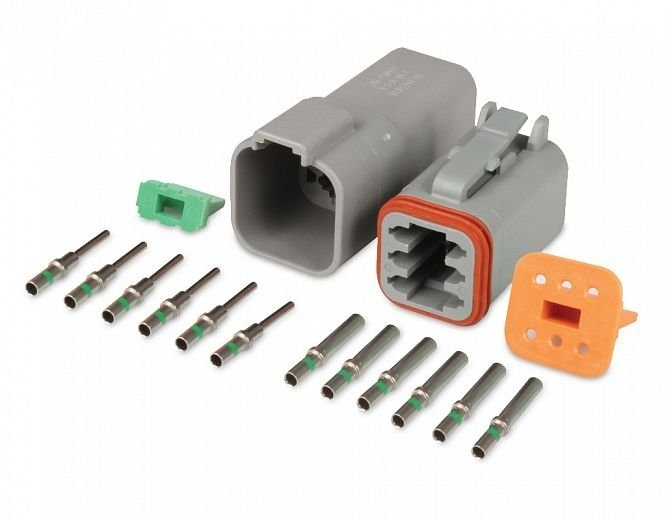

Hella Marine DT Connector 6 Pole Plug and Socket

Click on the image above to view full picture

Details

Details

Environmentally sealed connectors rated at -55 degrees to 125 degreesC. Supplied with nickel plated copper alloy crimp contacts, locking wedges and large I.D. removable contacts, 1.9mm in diameter. Plug and socket kits come complete with terminals and seals. Supplied with 12 nickel plated copper alloy crimp contacts and 2 locking wedges.

Specifications:
Maximum Load13A - all contacts
Spare Parts
9.4960.01Small I.D. female contact to suit plug
9.4960.02Small I.D. male contact to suit socket
9.4960.03Large I.D. female contact to suit plug
9.4960.04Large I.D. male contact to suit socket
9.4960.05Sealing plug
Note
Contacts are removable
Small I.D1.6mm diameter
Large I.D1.9mm diameter
