Hella Marine 2+1 Electronic Flasher Unit 24V 5-Pin

#9203745
Warranty Badge - 12-Months
Ships Dec 9 - Dec 20
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $159.00

Seen a lower price? Ask us to beat it

Add Items to Cart

💬 Report incorrect product information

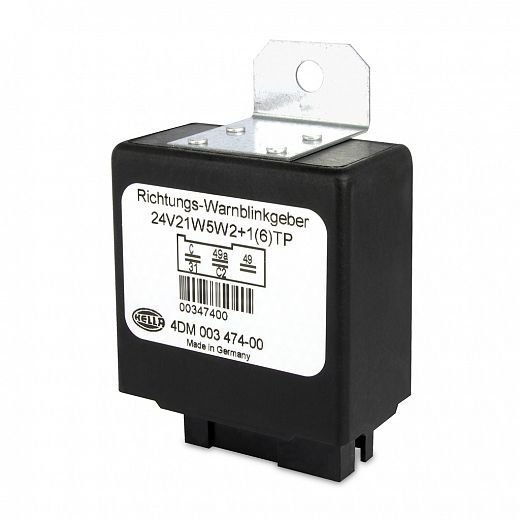

Hella Marine 2+1 Electronic Flasher Unit 24V 5-Pin

Click on the image above to view full picture

More Views

Details

Details

Flasher unit designed to operate 2 or 3 lamps on either side of a vehicle with caravan or trailer. Includes mounting bracket. Separate pilot lamp indicates operation of flasher lamp on the trailer. Incorporates hazard warning flasher system when used in conjunction with HELLA switch P/N 5227.

Specifications:
Maximum Load2+1 (6) x 21W
Pin Designations
Terminal NumberDescription
49/XFlasher input (+)
49a/LFlasher output (+) to lamps or indicator switch
31Earth (-)
C/C1/CP/PVehicle pilot lamp output (+)
C21st trailer pilot lamp output (+)
