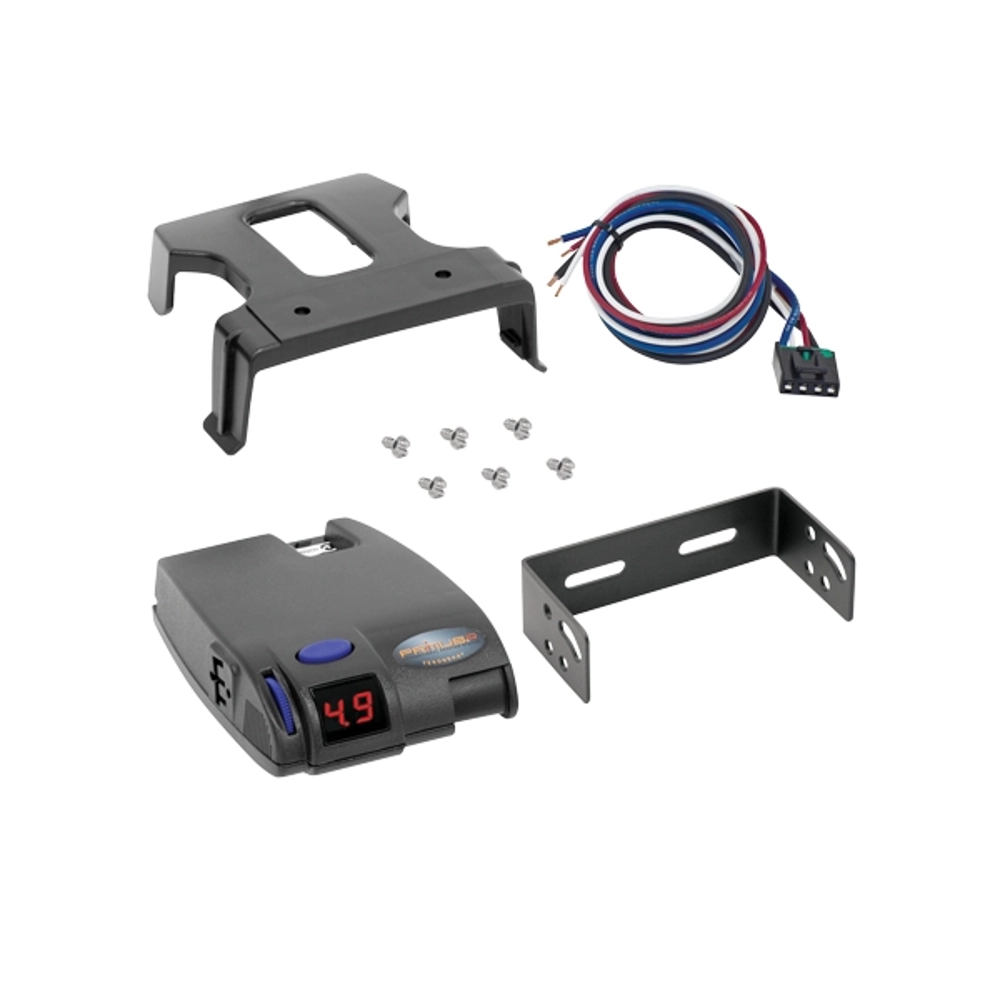

Tekonsha Primus IQ Electric Trailer Brake Controller

Smooth braking response in any stopping situation

The Tekonsha Primus IQ Electric Trailer Brake Controller gives you dependable braking power in a compact design. As an industry staple for more than ten years, this proportional braking system provides a smooth braking response in any stopping situation. With its petite yet durable exterior, this trailer brake controller fits nicely under the dash, making it easily accessible from the driver's seat without being in the way.

This brake controller has an easy-to-read LED display, self-diagnostic check to monitor your connection and trailer braking activity and is self-levelling when mounted within a 90-degree vertical range, so there's no need to adjust the unit once it's installed. It also features a power output knob to set your desired braking power, a boost option that lets you apply up quickly and easily to three levels of additional trailer braking power, especially when hauling heavier loads, and manual override.

The Primus IQ is designed to work with electric braking systems, works proportionally in reverse to make backing into tough spots a bit easier, and - like the Prodigy P3, Prodigy P2, and many other Tekonsha brake controllers – utilises primary sensor technology to ensure the smoothest stop possible. When you're done towing, the IQ's snap-in dash mounting clip, Plug and Play port for two plug adapters, and removeable electrical connector allow the unit to be quickly stored. The Primus IQ is truly a complete trailer brake controller kit. It works with trailers with 1-3 axles, comes with all necessary mounting hardware, and is backed by a limited lifetime warranty.

Proportional Electric Brake Controller
Provides automatic braking based on the intensity and rate at which you apply your tow vehicle's brakes, giving you smooth braking thanks to an internal inertia sensor. This makes the Primus IQ brake controller ideal for general and heavy-duty emergency braking.

Plug and Play: easy to install and stow
The Primus IQ trailer brake controller has a snap-in dash mounting clip, Plug and Play port for two plug adapters, and removeable electrical connector so the unit can be easily unplugged, unclipped, and stored.

Easy to Read LED Display
Digital LED display shows settings, real-time diagnostics and alerts.

Boost Feature: extra braking power
Boost provides up to three levels of additional stopping power at the touch of a button, giving you confidence in stopping safely when you’re hauling heavier loads and/or need more power to stop.

Tekonsha Primus IQ Electric Trailer Brake Controller Features:

• Utilises Plug and Play port for 2-plug adapters
• Self-diagnostics features will illuminate LED readout when issues occur
• Includes a Boost feature
• Works proportionally in reverse
• Snap-in dash mounting clip and hardware included
• Digital LED readout

Tekonsha Primus IQ Electric Trailer Brake Controller Specifications:

• Brand: Tekonsha
• Part Number: 90160
• Warranty: Limited Lifetime Warranty
• Finish: Gray Plastic
• Weight: 0.45kg
