Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz

Minimise your drag

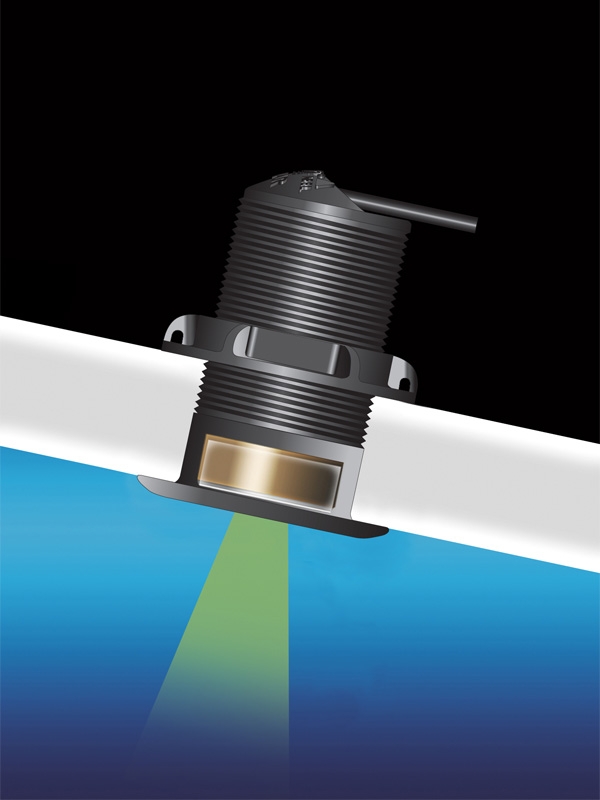

The Airmar P319 Plastic Thru-Hull Transducer features a 50/200 kHz, dual frequency, single ceramic element in a low-profile housing. The nearly-flush design minimises drag with only 5 mm (3/16") extending outside of the hull. This through hull transducer was designed to be used for fish finding, shallow and deep water bottom detection and will fit in fiberglass and wood boat types—power and sail.

Airmar P319 Plastic Thru-Hull Transducer Features:

• Depth only or Depth and temperature

• Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz

• Right angle cable exit offers low headroom and protection when transducer is stepped on

• Included rubber washer allows tightening of the hull nut to irregular hull surfaces

• Housings are ABYC H-27 compliant

• Optional temperature sensor (sold separately)

• Plastic transducer housing

• Boat Size: up to 8 m (25’)

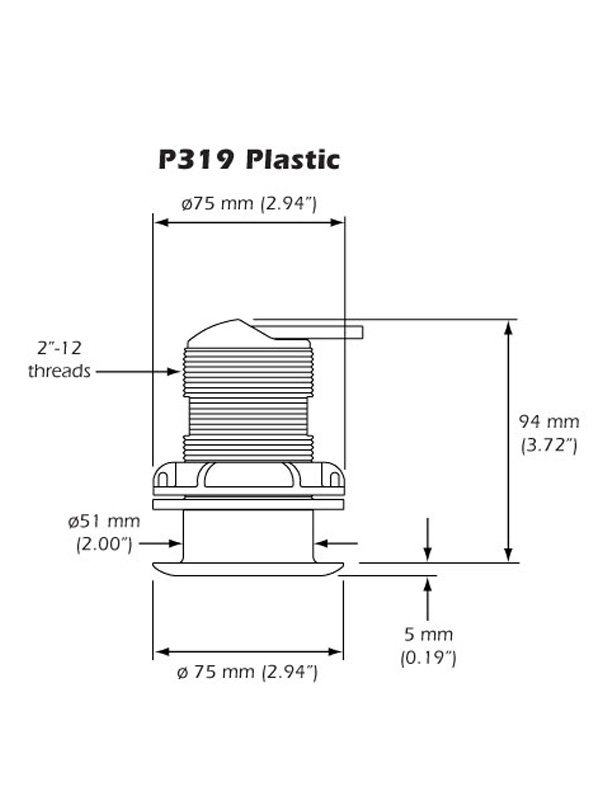

Airmar P319 Plastic Thru-Hull Transducer Specifications:

• Weight: 0.6 kg (1.3 lb)

• Hull deadrise: Up to 8°

• Acoustic window: Urethane

• Hole diameter: 51 mm (2”)

• Maximum depth range:
  50kHz: 235 to 353m
  200kHz: 118 to 206m


Transducer Options Available

1) AIRMAR P319T For Lowrance Models: HDS-10, HDS-5, HDS-5x, HDS-7, HDS-8, LCX-110C, LCX-111C HD, LCX-112C, LCX-113C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LCX-27C, LCX-28C HD, LCX-38C HD, LMS-335C DF, LMS-337C DF, LMS-339C DF iGPS, LMS-480, LMS-525C DF, LMS-527C DF iGPS, X105C DF, X107C DF, X126DF, X136DF, X-515C DF, X59DF , SIMRAD NSE

2) AIRMAR P319T For Furuno 10pin Models: NavNet DDFF1 & BBFF1, GP1850, GP1650, GP7000F, FCV585, FCV620, LS4100, LS6100, GP1600F, GP1610CF, LS6100, FCV600L, Furuno LS6000, Furuno GP1800F

3) AIRMAR P319T for Raymarine Models: C-Series C70, C80, C120, C90W, C120W, C140W, E-Series , E80, E120, E90W, E120W , E140W, DSM250, DSM300, DSM30, L755, SL755, L760, SL760, L770D, L770DRC, L1250, SL1250, SL1260

4) AIRMAR P319T For Garmin Models: 100 Blue, 160 Blue, 240 Blue, 250, 250C, 320C, 340C, 400C, 178, 178C, 188/188C, 198C ,235, 238, 298, 398, 420/420s ,421/421s ,430/430s , 431/431s , 440/440s , 441/441s , 498, 520/520s, 521/521s, 525/525s ,526/526s, 530/530s , 531/531s , 535/535s , 540/540s. 541/541s, 545/545s, 546/546s , GSD 20, GSD 21 , GSD 22

5) AIRMAR P319T For Simrad and JRC 7 Pin Models: CE30, EQ30, CE32, CE33, CE34, CX33-E, CX34-E, CX44-E, CX54, EQ32, EQ33, CA40, CA42, CA44, CA50, CA54, CE40, CE42, CE44, CE50, CE54, EQ-40, EQ42, EQ-44, EQ-50, EQ-54. JRC Models - FF-50, FF-60, PLOT 500F, JFV-85 , JFV-850, Raytheon 850

6) Airmar P319T for Humminbird #9 Connector Models: 141C, 161, 323, 325, 343C, , 345c, 363, 365i, 383C, 385ci, 515, 525, 535, 550, 560, 565, 570, 575, 580, 581i, 585C, 586C, 586c HD, 587CI, 587ci HD, 595C, 596C, 596c HD, 597CI, 597ci HD, 717, 718, 727, 728, 737, 747c, 757c, 767, 768, 777c2, 778C, 778c HD, 787c2, 787c2I, 788C, 788ci, 788ci HD, 858c, 931C, 937C, 957c, 958c, 1157c, 1158c, HDR 610, HDR650, MATRIX 10, MATRIX 12, MATRIX 15, MATRIX 17, MATRIX 20, MATRIX 25, MATRIX 27, MATRIX 55, MATRIX 65, MATRIX 67, MATRIX 77C, MATRIX 87C, MATRIX 97, PIRANHA 1, PIRANHA 2, PIRANHA 3, PIRANHA 4, PIRANHA 5, PiranhaMax 10, PiranhaMax 15, PiranhaMax 150, PiranhaMax 160, PiranhaMax 170, PiranhaMax 190C, PiranhaMax 20, PiranhaMax 210, PiranhaMax 215, PiranhaMax 220, PiranhaMax 230, PiranhaMax 240, PiranhaMax 30

7) Airmar P319T for Northstar/Simrad 6 Pin Models: 8120, 8084, 6600, 6507, 6500, 4607, 4507, Northstar M121, M84, 660, 657, 650, 467, 457, Simrad NX40, NX45

Part Numbers:

Name	Part Number

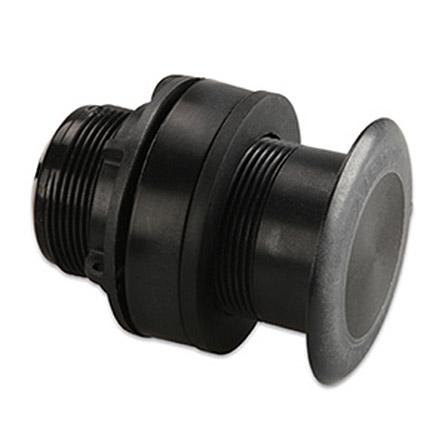

Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz Mix and Match	P319-DT-MM

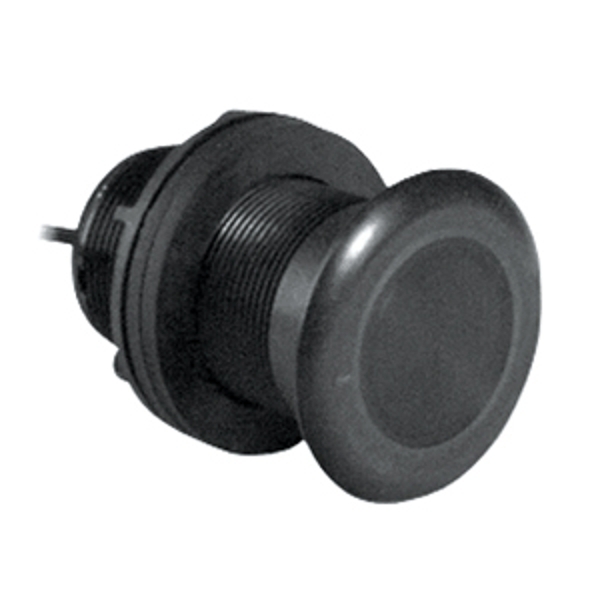

Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz Standard 8-Pin	P319-DT-BB
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Geonav 8-Pin	P319-DT-8G-D
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Raymarine Sounders	A80171
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Garmin 8-Pin	GAR0101019421
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Raymarine A-Series	P319-DT-RAYA
Airmar P319 Thru-Hull Transducer 50/200kHz for Humminbird #9 Connector	P319-DT-HUMMINGBIRD
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Raymarine Raydar Connector	P319-DT-RAY
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Lowrance 7-Pin Blue Plug	P319-DT-BL
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz Furuno 10-Pin	P319-DT-10F
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Humminbird #9 Connector	P319-DT-HB
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Furuno/Ratheon/Koden 8-Pin	P319-DT-8
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Simrad/JRC 7-Pin	P319-DT-7
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Northstar/Simrad 6-Pin	P319-DT-6N
Airmar P319 Plastic Thru-Hull Transducer 600w 50/200kHz for Garmin 6-Pin	P319-DT-6G
