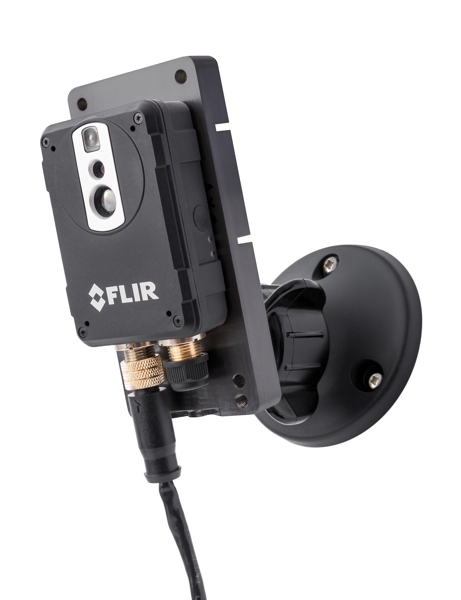

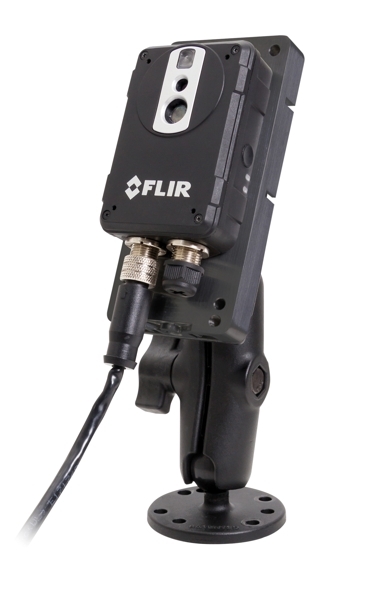

FLIR AX8 Marine Thermal Camera
FLIR AX8 Marine Thermal Camera
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Gain an entirely new view of your vessel's mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.
Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR's exclusive MSX® imaging blends visible and thermal images for more detailed imagery that is easier to understand.
FLIR AX8 Thermal Monitoring Camera Features:- State-of-the-art thermal monitoring of engines and onboard machinery
- Powered by Lepton, FLIR's most advanced micro thermal camera
- Exclusive Multi-Spectral Dynamic Imaging (MSX) for easy-to-understand thermal imagery.
- Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery
- Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds
- Evaluate ongoing temperature trends
- Help avoid costly repairs and unwanted breakdowns

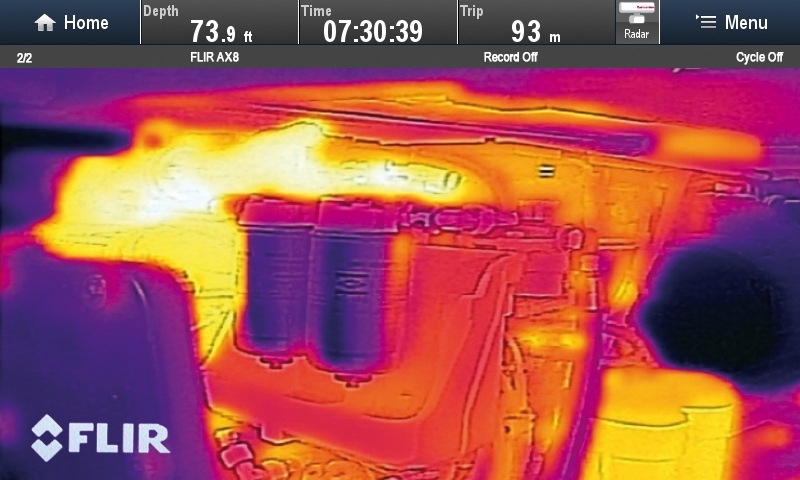

- View thermal, visible, and MSX video imagery on Raymarine LightHouse II MFDs
- Continuous thermal monitoring with audible and visual alarms across the Raymarine network
- Connect up to eight AX8 cameras using Ethernet
- View and record thermal video and snapshots from any Raymarine display on the network
- Easy setup and alarm programming with a PC and web browser
Specifications:
| IMAGING & OPTICAL DATA | |
|---|---|
| IR Resolution | 80x60 pixels |
| Thermal Sensitivity / NETD | <0.10 degrees C @ +30 degrees C (+86 degrees F) / 100mK |
| Field of View (FOV) | 48 degrees x 37 degrees |
| Focus | Fixed |
| DETECTOR DATA | |
| Detector Type | Focal Plane Array (FPA) Uncooled Microbolometer |
| Spectral Range | 7.3-13µm |
| VISUAL CAMERA | |
| Built-in Digtal Camera | 640x480 |
| Digital Camera FOV | Adapts to the IR lens |
| Sensitivity | Minimum 10 Lux without illuminator |
| MEASUREMENT | |
| Object Temperature Range | -10 degrees C to +150 degrees C (14 degrees F to 302 degrees F) |
| Accuracy | +/-2 degrees C (+/-3.6 degrees F) or +/-2% of reading (+10 to +100C@+10 to +35amb) |
| MEASUREMENT ANALYSIS | |
| Spotmeter | 6 |
| Area | 6 Boxes with max. / min. / average |
| Automatic Hot / Cold Detection | Max / Min temperature value and position shown within box |
| Measurement Presets | Yes |
| Atmospheric Transmission Correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics Transmission Correction | Automatic, based on signals from internal sensors |
| Emissivity Corrections | Variable from 0.01 to 1.0 |
| Reflected Apparent Temperature Correction | Automatic, based on input of reflected temperature |
