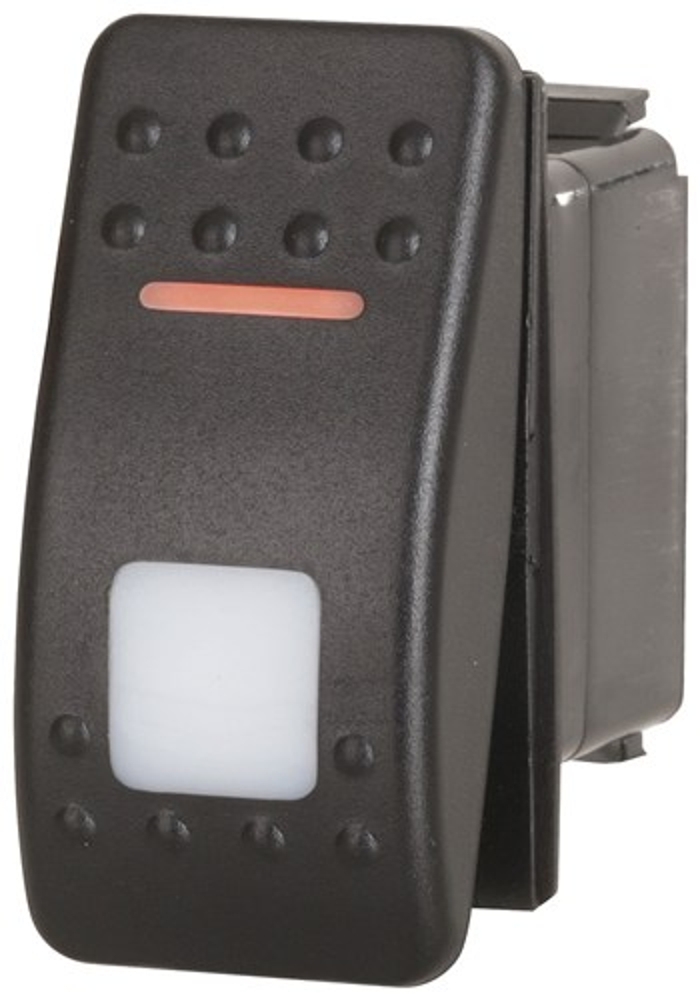

SPDT Dual Illuminated Rocker Switch with Labels and Interchangeable Covers Orange

SK0916

1 Year Warranty

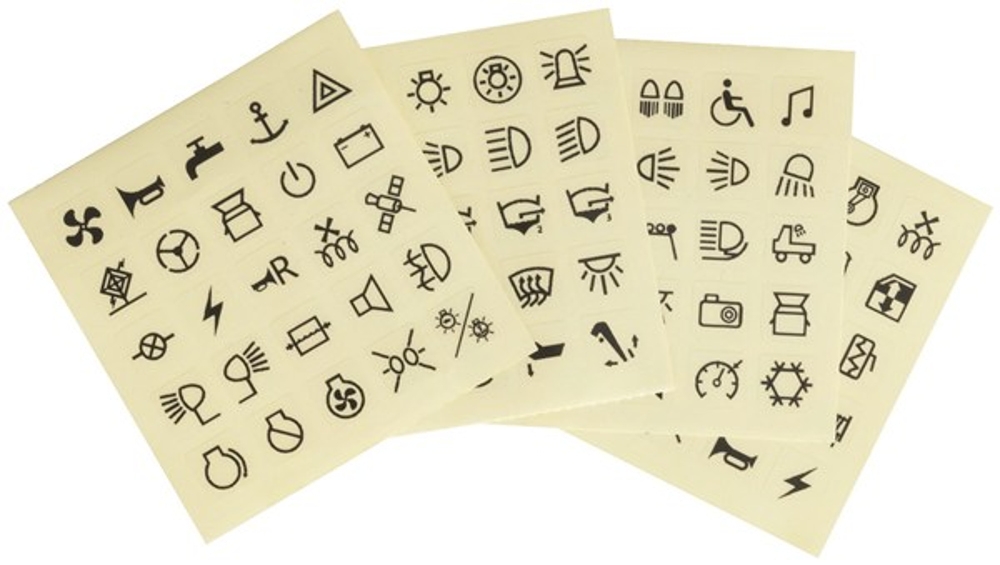

These are the superb looking rocker switches that you have seen in the cockpits of the 70-100ft luxury motor cruisers recently. They would look great in your 4WD, RV, Caravan or any other application as well. The base switch supplied (rated at 12V 20A, 24V 10A) comes with a double-LED illumination (low in OFF, high in the ON position), a standard rocker cover and a standard range of decals to customise the switch to your application.  Typical decals are symbols for: windscreen wipers, horn, heater, etc; there are dozens of these decals included.

Also available are a set of special laser-etched covers with the following graphic symbols to really create a professional finish. You need to buy the basic switch (in blue, white or red illumination) and then the custom cover (if required.)

Switches
SK-0910 SPDT Rocker - White
SK-0912 SPDT Rocker - Red
SK-0914 SPDT Rocker - Blue
SK-0916 SPDT Rocker - Orange

Laser-etched rockers
SK-0920 '12V Power'
SK-0921 'Fridge'
SK-0922 'Aux Battery'
SK-0923 'Camper Power'
SK-0924 'Spot Lights'
SK-0925 'Horn'
SK-0926 'Rear View Camera'
Specifications:

DC current rating : 20A

DC Voltage : 12V

Nominal Voltage : 12V

Illumination Colour : Orange

Connection : Spade Terminals

Length : 49.6mm

Width : 24.4mm

Height : 49mm

Mounting Method : PanelFront of Panel

Square Mount Hole Width : 21.2mm

Square Mount Hole Height : 37.2mm

Packaged Volume : 0.44l

Packaged Weight : 0.05kg

Packaged Length : 18cm

Packaged Width : 8.2cm

Packaged Height : 3cm

Switch Type : Rocker

Pole Throw Type : SPDT

Poles / Contacts : 1 pole

Throws / Positions : 2pos

Switch Function : Locking On/Off

Switch Connection : Spade Terminals

Switch Colour Coded : Orange

Cycle Life : 100000 cycles

Availability : Stocked item
