Hella Marine Stainless Steel LED Switch

#9041674
Warranty Badge - 12-Months
Check Below for Availability

Seen a lower price? Ask us to beat it

Product Name Price Qty

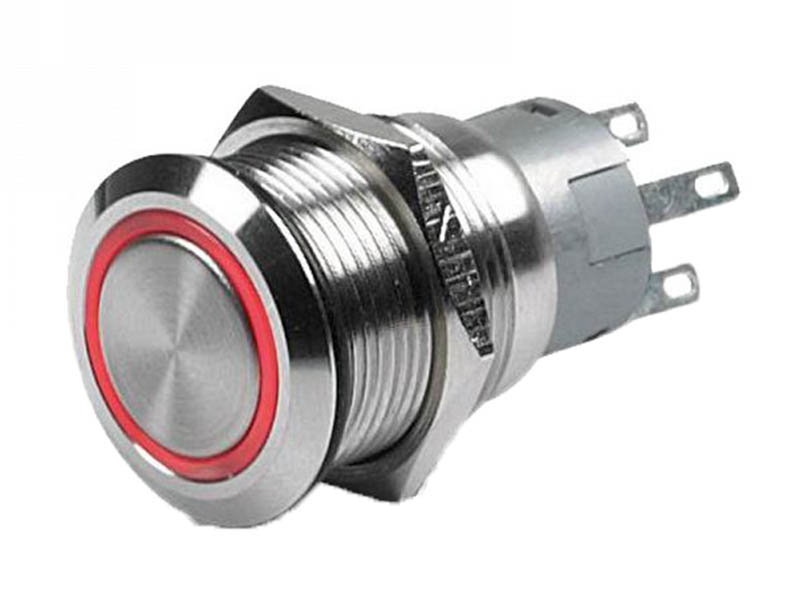

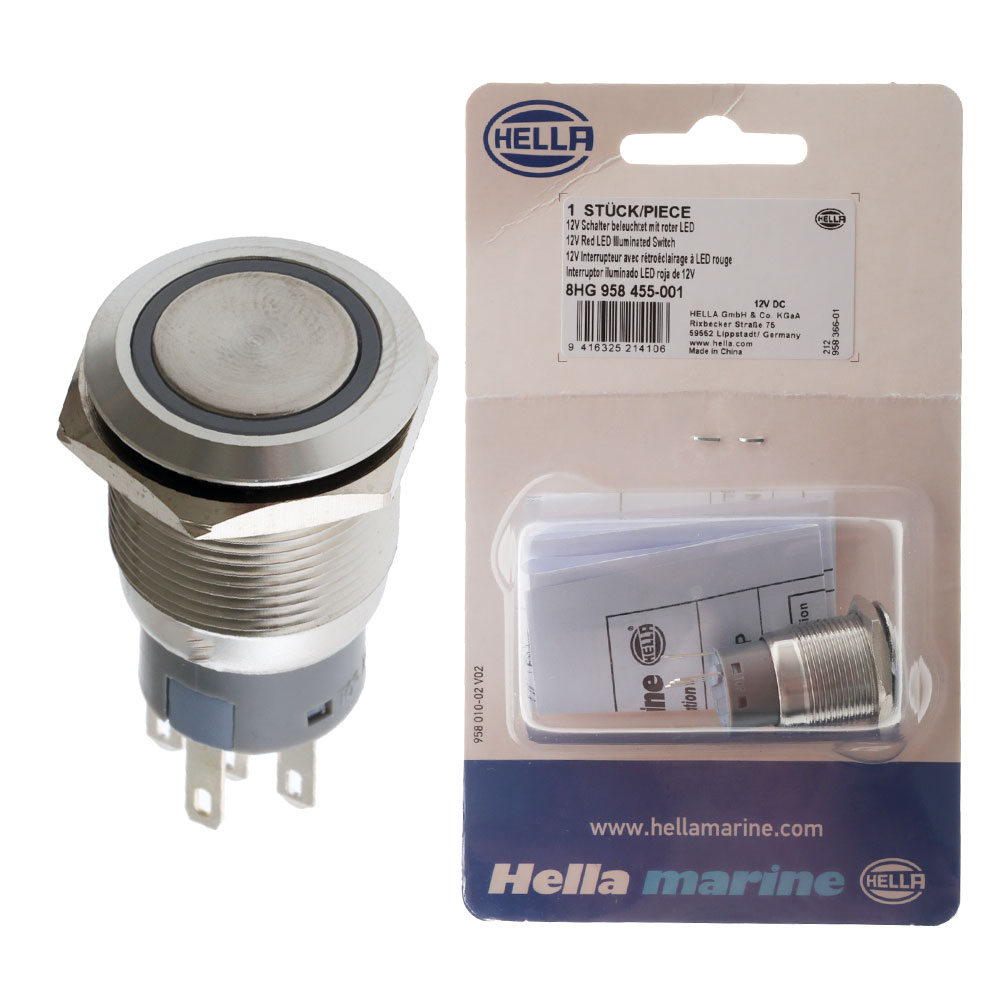

Hella Marine Stainless Steel LED Switches On/Off 12V Red LED Illumination

In Stock - Ready to Ship

NOW $34.99

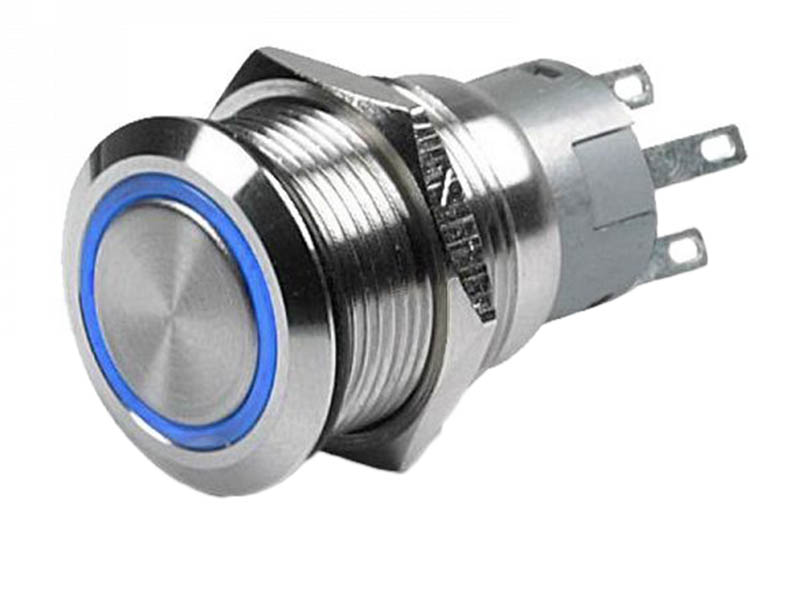

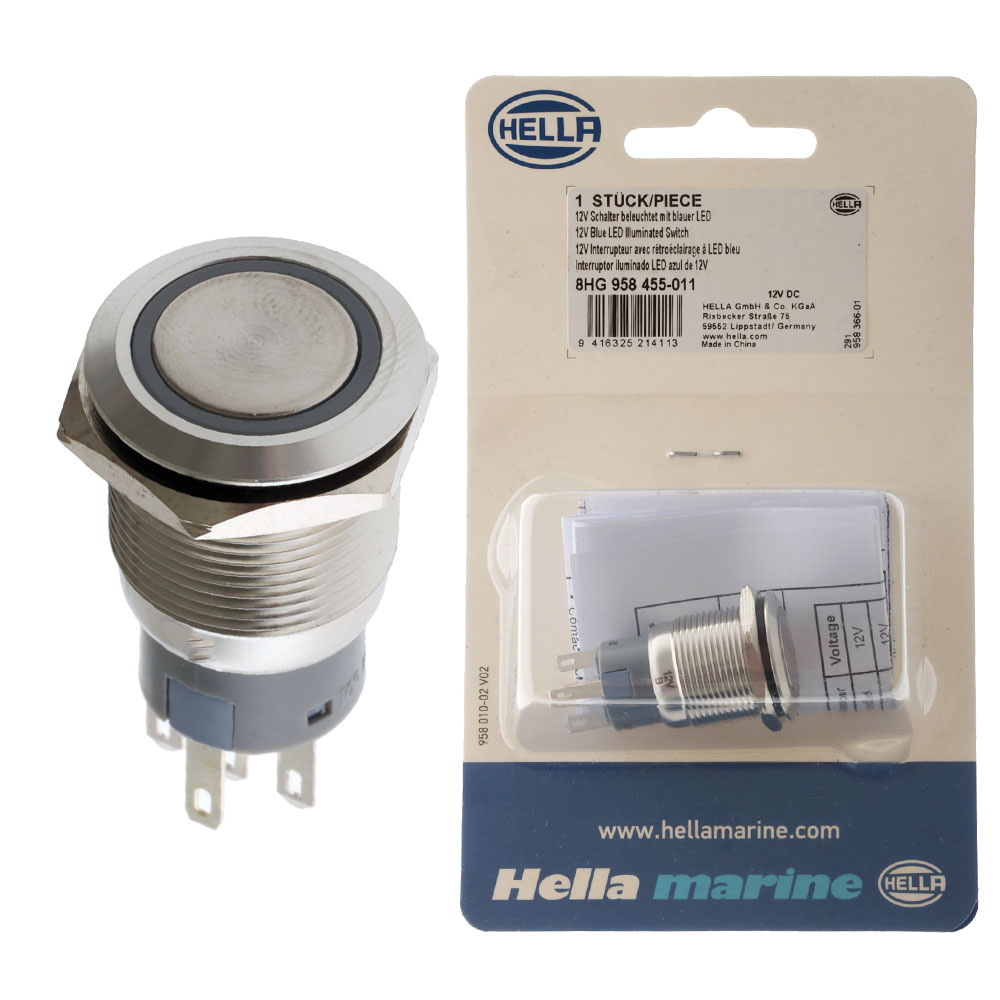

Hella Marine Stainless Steel LED Switches On/Off 12V Blue LED Illumination

In Stock - Ready to Ship

NOW $34.99
Hella Marine Stainless Steel LED Switches On/Off 24V Red LED Illumination

Ships Dec 14 - Dec 25

NOW $34.50

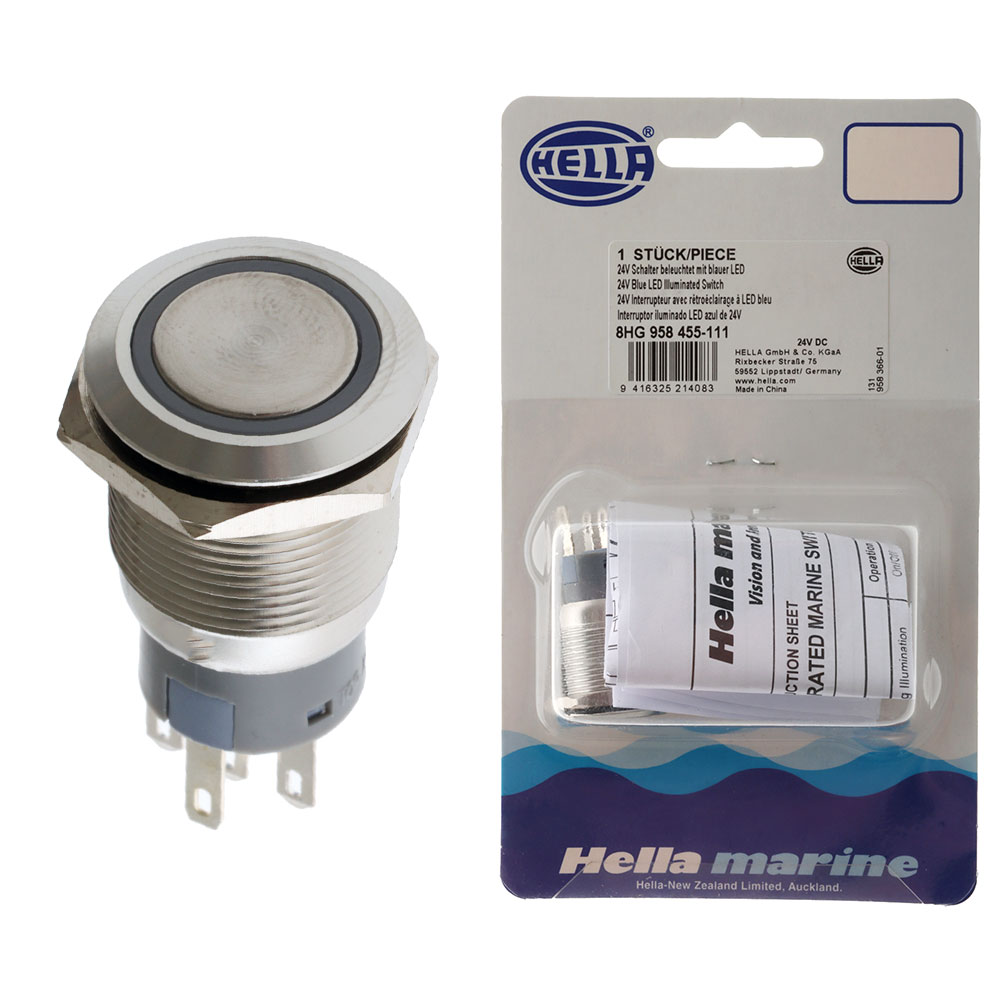

Hella Marine Stainless Steel LED Switches On/Off 24V Blue LED Illumination

Ships Dec 14 - Dec 25

NOW $34.50
Hella Marine Stainless Steel LED Switches Momentary 12V Red LED Illumination

Ships Dec 14 - Dec 25

NOW $34.50

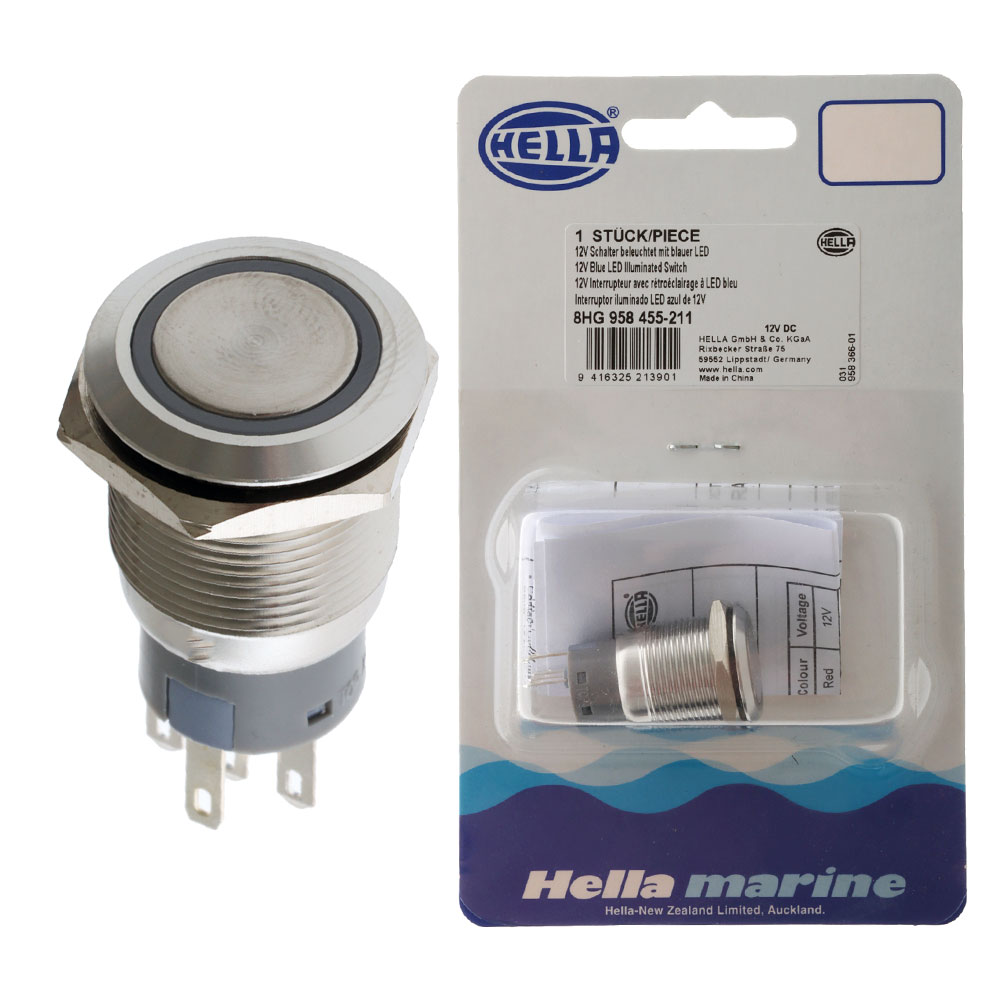

Hella Marine Stainless Steel LED Switches Momentary 12V Blue LED Illumination

Ships Dec 14 - Dec 25

NOW $34.50
Hella Marine Stainless Steel LED Switches Momentary 24V Red LED Illumination

Ships Dec 14 - Dec 25

NOW $34.50

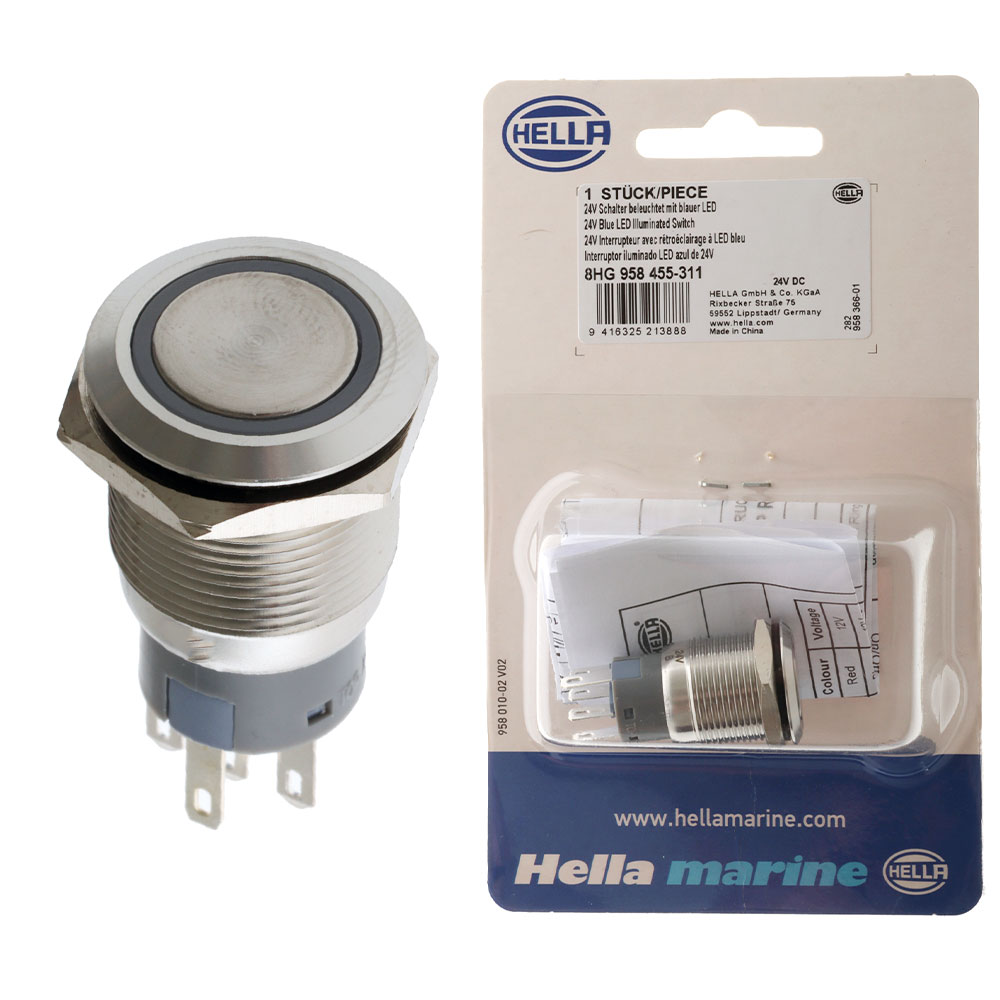

Hella Marine Stainless Steel LED Switches Momentary 24V Blue LED Illumination

Hurry! 1 left in stock - Ready to Ship

NOW $34.50
Add Items to Cart

Click on the image above to view full picture

More Views

Details

Details

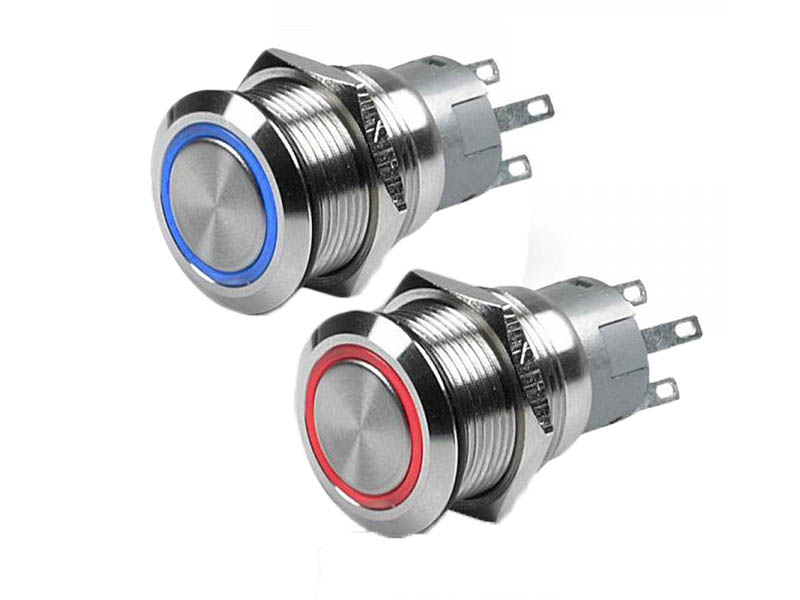

Attractive stainless steel switches with an attractive ring of LED light

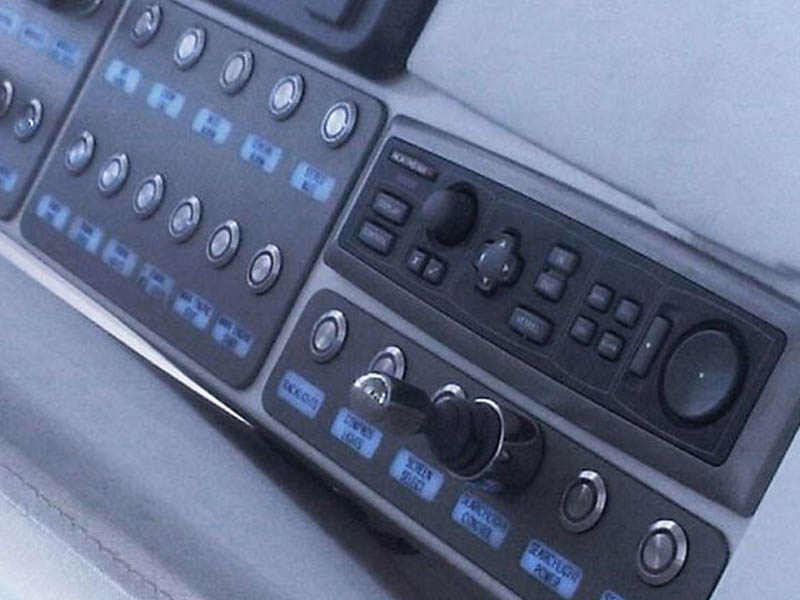

The Hella Marine Stainless Steel LED Switch is ideal for a wide range of interior or exterior applications such as controlling and dimming lighting or operating accessories. Proven across the world's most unforgiving oceans on board the last generation of Volvo Ocean Race yachts, Hella marine LED switches were installed into steering pedestals and endured maximum exposure to the elements.

Hella Marine Stainless Steel LED Switch Features:
  • Ideal for switching lighting or installing into custom switch panels
  • Through panel mounting
  • 304 stainless steel construction
  • Non-corrosive
  • The light rings may be wired to show power to a system or signal circuit activation
  • The range also includes matching stainless steel warning buzzers with LED light rings

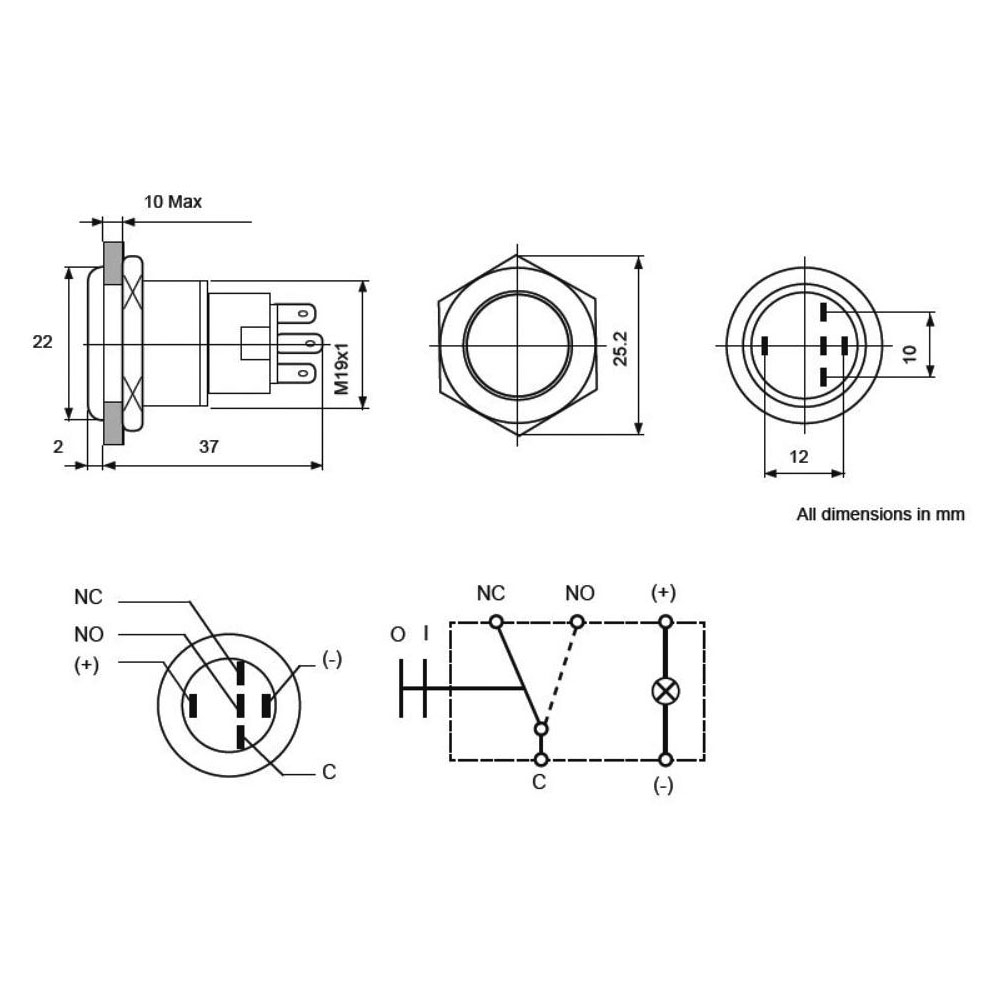

Hella Marine Stainless Steel LED Switch Specifications:
  • Button Material: 304 Stainless Steel
  • Body Material: 304 Stainless Steel
  • Contact Material: Silver Alloy
  • Terminal Type: 5 Pin (2.8 x 0.5mm) switches. 2 screws for buzzer.
  • Panel Thickness: 1approx. 10mm
  • Operating Temp: -20Capprox. +55C
  • Insulation Resistance: Approx. 1000ohms
  • Contact Resistance: Approx. 50ohms
  • Max. Switch Rating: 5A
  • Degree of Protection: IP 67
