Mechanical steering kit for your boat

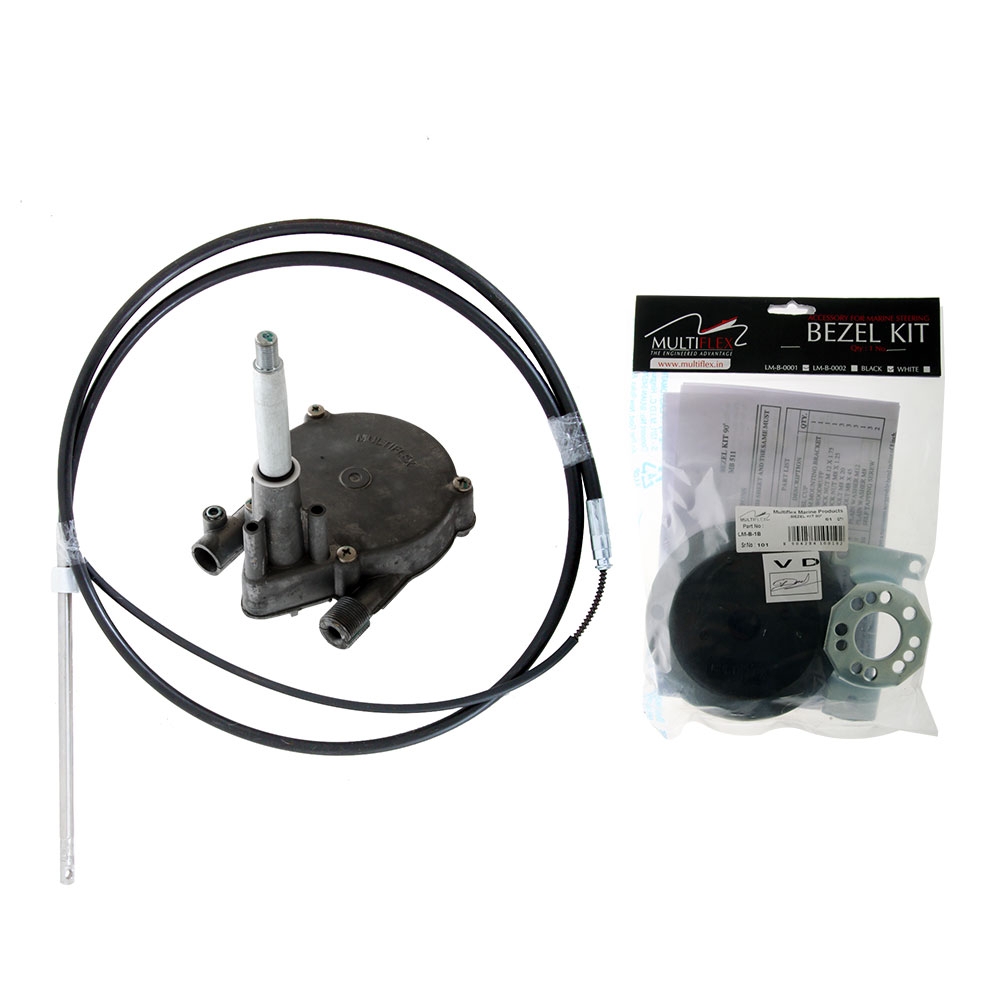

The Multiflex Easy Connect Steering Kit delivers powerful steering performance for the turbulent seas. This mechanical steering system comes with a steering helm, steering cable and bezel kit. The steering helm is suitable for boats with lengths up to 9m for outboard and 10.5 for inboard. With a reduction gear design, it’s built to be tough and sturdy. Also included in the kit is a durable steering cable with output ends made from high quality stainless steel and an engineered plastic bezel. Installation is also quick and easy, saving you lots of time. Equip the Multiflex Easy Connect Steering Kit onto your boat and steer onward.
Multiflex Easy Connect Steering Kit Features:

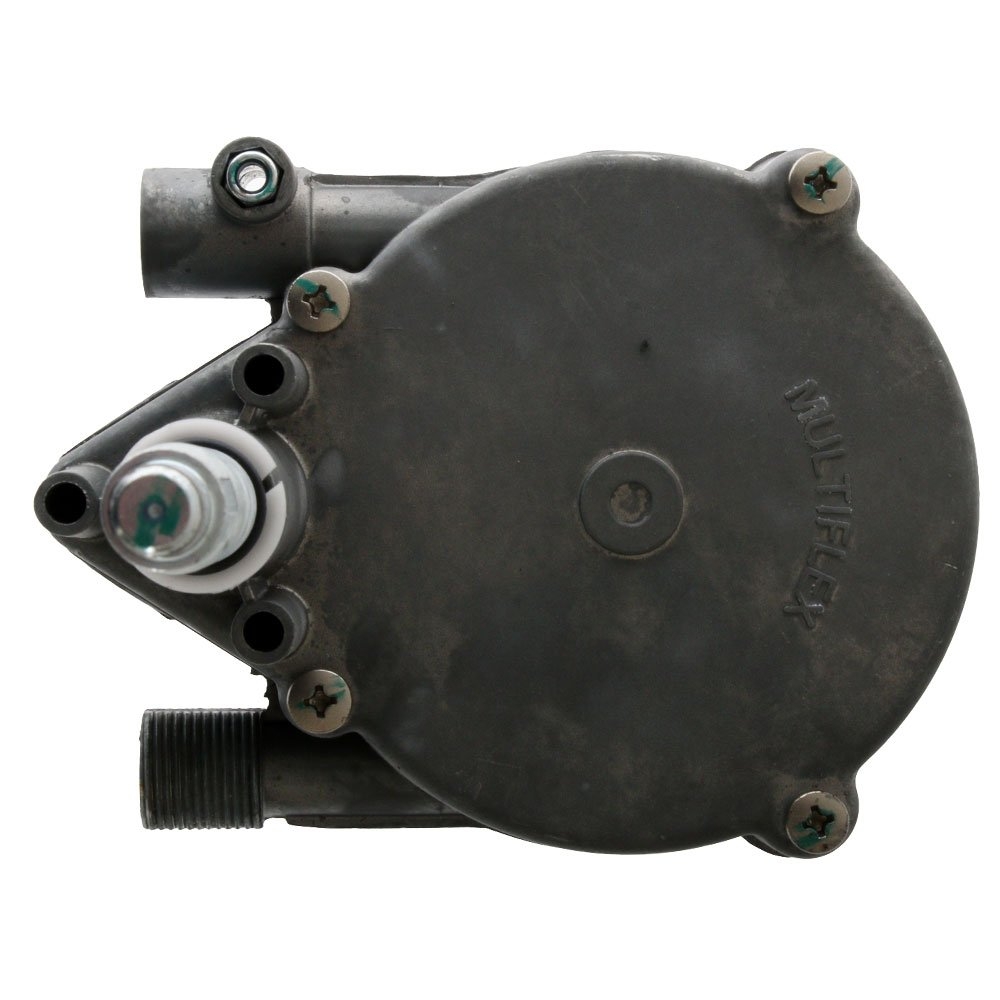

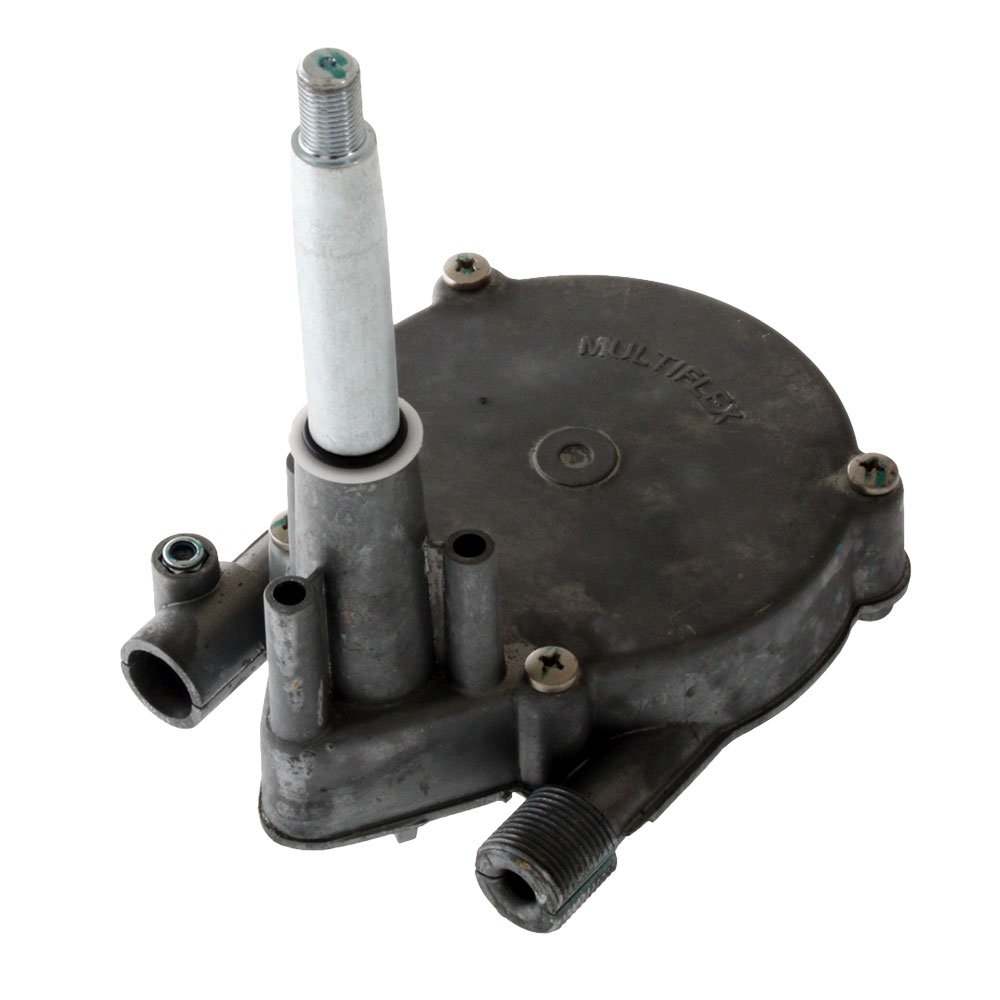

- Easy Connect steering helm part no. LM-H-301
- Easy connect, quick installation
- Applicable for boat length: 9m for outboard, 10.5m for inboard
- Suitable for engines up to 150Hp
- Helm cover: High-pressure die-cast zinc alloy
- Shaft: Galvanised steel
- No. Of steering wheel turns: 4 Approx.
- Maximum steering wheel diameter: 16in (400mm)
- Standard 3/4in tapered shaft
- Bezel kit: LM-B-1B
- Steering wheel not included
- System is for single stations only
Multiflex Easy Connect Steering Kit Specifications:
| Part no. | Steering Cable Part no. | Cable Length |
|---|---|---|
| PSS-301-09 | SC 16-09 | 9ft |
| PSS-301-10 | SC 16-10 | 10ft |
| PSS-301-11 | SC 16-11 | 11ft |
| PSS-301-12 | SC 16-12 | 12ft |
| PSS-301-13 | SC 16-13 | 13ft |
| PSS-301-14 | SC 16-14 | 14ft |
| PSS-301-15 | SC 16-15 | 15ft |
| PSS-301-16 | SC 16-16 | 16ft |
| PSS-301-17 | SC 16-17 | 17ft |
| PSS-301-18 | SC 16-18 | 18ft |
| PSS-301-19 | SC 16-19 | 19ft |
Selection Guide for MULTIFLEX Mechanical Steering Systems
Steering Cable Installation Measuring Guide
