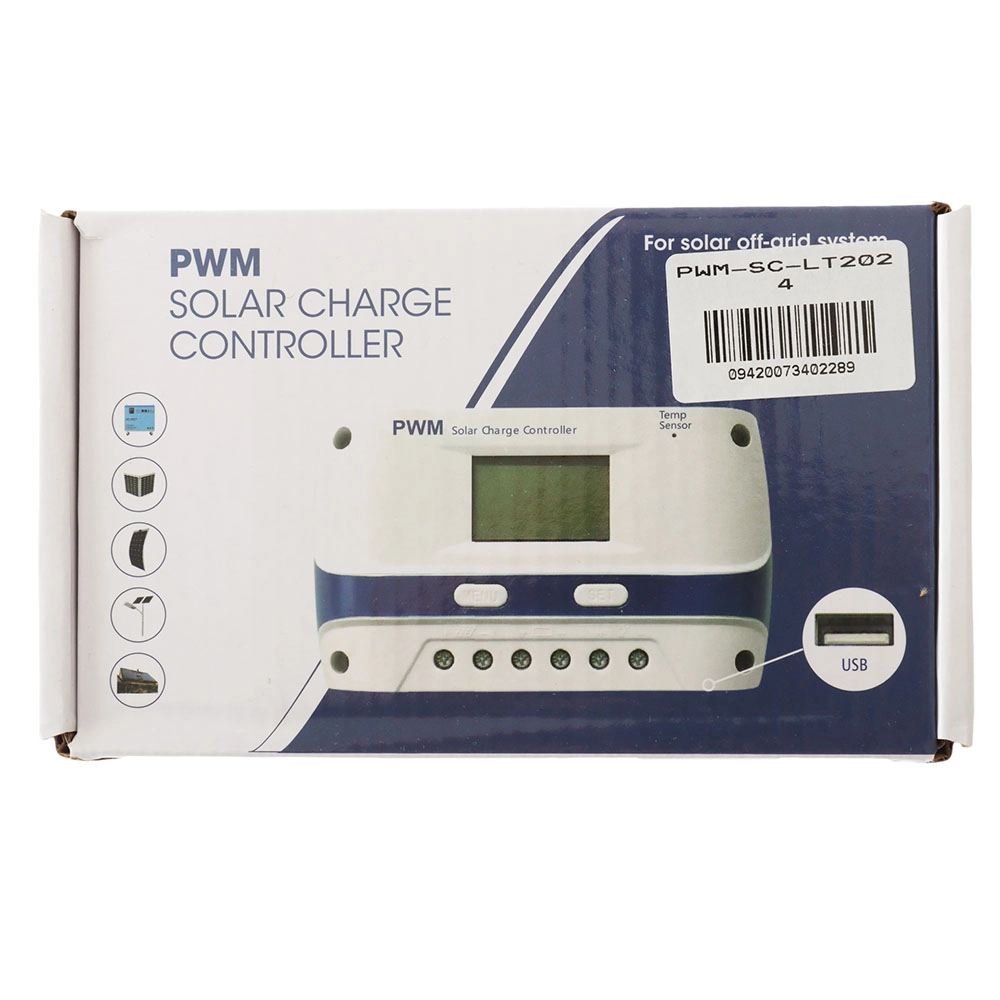

PWM Auto Solar Charger Controller 10A 12/24v

#9177934
Warranty Badge - 12-Months
In Stock - Ready to Ship
Calculate Shipping
Australia Wide
includes any items in cart
Why pay $36.50
ONLY $23.99
SAVE $12.51!

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

More Views

Details

Details

Overall effective protection

The PWM Auto Solar Charger Controller offers simple and reliable technology, designed to regulate the charge going to the batteries. This device sits between your solar panels and your battery bank. It regulates the current between the panels and the batteries to prevent over-charging and over-discharging, which can damage the batteries and reduce their lifespan.

The pulse duration and frequency will vary depending on the battery's needs and the load being drawn from the battery. It operates at a stable voltage and must be capable of handling a solar array voltage that is equal to the battery voltage, as it cannot compensate for a disparity between the two. LT2024 works best in smaller applications and where weather conditions are relatively stable.

PWM Auto Solar Charger Controller Features:
  • Built-in industial micro controller
  • LCD display shows operating data and working condition
  • 3-Stage PWM charge management: Bulk, Boost, Float
  • Supports 4 charging options: Sealed, Gel, Flooded and User
  • Built-in short circuit protection, open circuit protection, reverse protection and overload protection
  • Dual USB design
  • Battery temperature compensation
  • Light sensor and timer programmable

PWM Auto Solar Charger Controller Specifications:
  • Product name: 12V/24V Controller For PWM Solar Power Panel dual USB
  • Product code: LT2024
  • Rated voltage: 12/24V
  • Rated current: 10A
  • Max PV voltage: 50V
  • Max PV input power: 130W(12V) / 260W(24V)
  • Nominal system voltage: 12/24V DC AUTO
  • Enclosure: IP30
  • USB output: 5VDC/2A (total)
