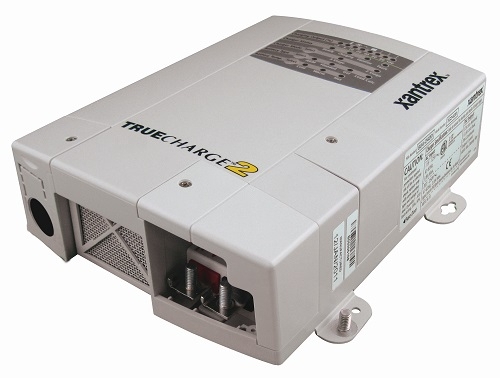

Xantrex Truecharge 2 10AMP Single Bank 24v Charger
Xantrex Truecharge 2 10AMP Single Bank 24v Charger
Buy now, pay later & Finance Options
Find Local Store
Xantrex TrueCharge 2 10Amp 24V
3 bank, 120/240v input
Model: 804-2410UPC: 715535024109
- Microprocessor-controlled, multistage charging algorithms
- Settings for two and three-stage charging
- Settings for flooded, gel, AGM or lead-calcium batteries
- Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
- Power factor corrected, temperature-compensated charging
- Battery-equalization feature
- Ability to charge batteries drained to extremely low voltage
- Reverse battery polarity protection
- Drip-proof design
- Over and under-temperature protection
- Battery overcharging protection
- DC over-voltage protection
Building on the success of the TRUECharge™2 12-volt battery chargers, Xantrex™ now offers 24-volt battery chargers designed to meet the specific needs of marine and commercial markets.
TRUECharge2 battery chargers are highly versatile and can be mounted in multiple positions, thanks to their inherent drip-free design characteristics. TRUECharge2 delivers outstanding low electrical interference, coupled with efficient, power factor corrected, multistage charging capability. Installation is a breeze, thanks to the easy-access AC and DC wiring compartments. The easy-to-read display can be augmented with an optional remote panel.
TRUECharge2 24-volt chargers are available with parallel stacking feature which allows you to double the output current when used with the optional REMOTE PANEL (part #808-8040-01).
Specifications| Electrical Specifications | |
| Output current, nominal | 10A |
|---|---|
| Output volatage - nominal, depending on battery type settings | |
| Charge | 28.4 - 31.0 Vdc |
| Float | 26.8 - 27.6 Vdc |
| Equalize | 32Vdc |
| DC Output connections | 3 |
| AC input voltage | 90-265 Vac 47-63 Hz 120 Vac, 230 Vac, 240 Vac nominal |
| Temperature compensation | 3 settings |
| Charger efficiency | > 80% |
| Battery type | Gel, Flooded, AGM, Pb-Ca |
| Minnimum recommended battery bank size | 40sh |
| General Specifications | |
| Operating temperature | 0 to 60 degrees C |
| Storage temperature | -40 to 80 degrees C |
| Bbttery connection | Three positive terminals One negative terminal |
| Warranty | two year |
| Input Voltage | 90-265 Vac 47-63 Hz 120 Vac, 230 Vac, 240 Vac nominal |
| Dimensions | 2.8''H x 6.7'' W x 9.8'' L |
