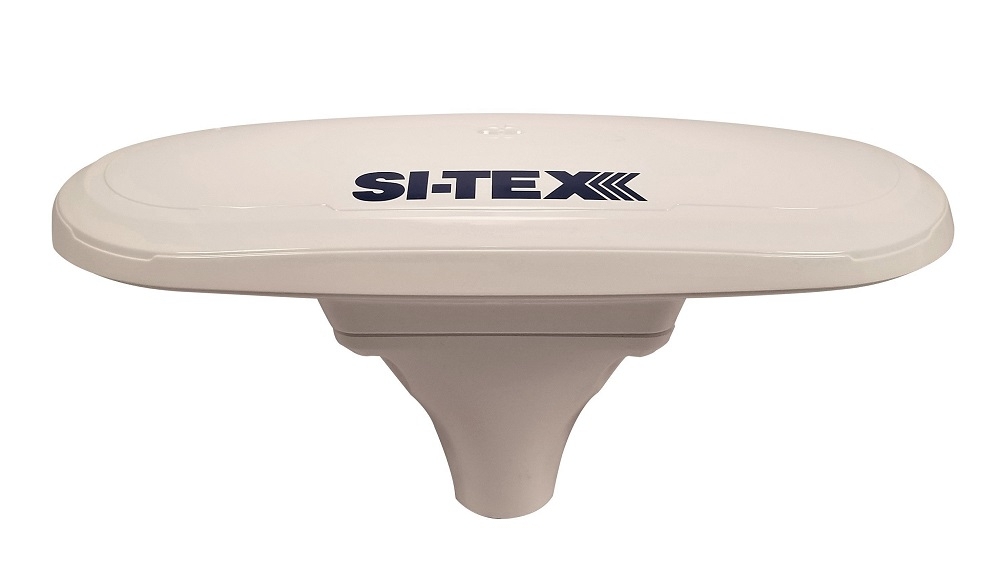

Si-tex V200 Satellite Compass with NMEA0183

Click on the image above to view full picture

Details

Details

Si-Tex Vector V200 Satellite Compass - NMEA0183

Model: Vector200-0

Features:
  • L1 GPS, GLONASS, Galileo, BeiDou, QZSS
  • Optional 30 cm RMS world-wide positioning accuracy with Atlas corrections
  • 0.75 degree heading accuracy in an amazingly small form factor
  • Excellent in-band and out-of-band interference rejection
  • Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
  • Provides heading, positioning, heave, roll, and pitch

Experience superior navigation from the accurate heading and positioning performance available with the Vector™ V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere's Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems

Specifications
GNSS Sensor Specifications
Receiver TypeVector GNSS L1 Receiver
Signals ReceivedGPS, GLONASS, BeiDou, Galileo, QZSS 7, and Atlas
Channels424
GPS Sensitivity-142 dBm
SBAS Tracking2-channel, parallel tracking
Update Rate10 Hz standard, 20 Hz optional
Power
Input Voltage6 to 36 VDC
Reverse Polarity ProtectionYes
Dimensions
No Mount34.8 L x 15.8 W x 7.5 H (cm)
LP Flat Mount34.8 L x 15.8 W x 7.6 H (cm)
HP Flat Mount34.8 L x 15.8 W x 10.7 H (cm)
Pole Mount34.8 L x 15.8 W x 16.8 H (cm)
