Sinox S365DLK 316 Double Bar D Shackle

#9042699
Warranty Badge - 12-Months
Ships Dec 5 - Dec 17

Seen a lower price? Ask us to beat it

Product Name Price Qty
Sinox S365DLK M5 316 Double Bar D Shackle

Ships Dec 5 - Dec 17

$10.50 NOW $9.39
Sinox S365DLK M8 316 Double Bar D Shackle

Ships Dec 5 - Dec 17

NOW $22.99
Add Items to Cart

💬 Report incorrect product information

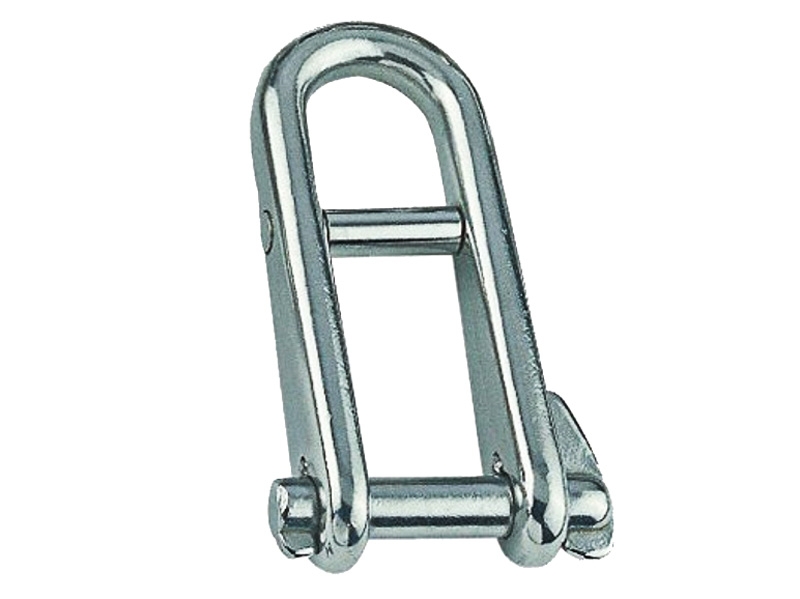

Sinox S365DLK 316 Double Bar D Shackle

Click on the image above to view full picture

More Views

Details

Details

The Sinox S365DLK 316 Double Bar D Shackles, also known as Halyard shackles (cross bar with locking pin), are designed specifically for marine application where a quick 180 degrees release pin as well as independent eye end is required.

Sinox S365DLK 316 Double Bar D Shackle Technical Features:
  • Casting material : AISI316 - DIN 1.4408
  • Production : S365DLK - Shackle/Pin - Cast
  • Surface treatment : "E.P." (Electro polished)

Sinox S365DLK 316 Double Bar D Shackles Specifications:






Product Size øA B L Piece per Carton Plastic Back Card B.L.(1)
S365DLK (mm) (mm) (mm) (mm)     (kgs)
Sinox S365DLK M5 316 Double Bar D Shackle 5 5 13 40.5 800 2 1,000
Sinox S365DLK M6 316 Double Bar D Shackle 6 6 16 46 600 2 1,600
Sinox S365DLK M8 316 Double Bar D Shackle 8 8 22 64 230 3 2,250

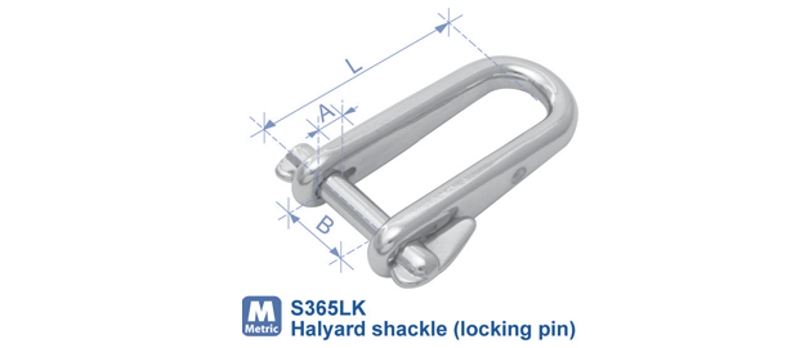

Sinox S365DLK 316 Double Bar D Shackle Diagram:
