SeaStar Thru Bulkhead Steering Hose - Outboard 3-17ft

#9197947
Warranty Badge - 12-Months
Check Below for Availability

Seen a lower price? Ask us to beat it

Product Name Price Qty
SeaStar Thru Bulkhead Steering Hose - Outboard 3ft

Out of Stock

Notify me when back in stock

NOW $113.95

Sold Out
SeaStar Thru Bulkhead Steering Hose - Outboard 5ft

Out of Stock

Notify me when back in stock

NOW $124.75

Sold Out
SeaStar Thru Bulkhead Steering Hose - Outboard 6ft

Out of Stock

Notify me when back in stock

NOW $134.35

Sold Out
SeaStar Thru Bulkhead Steering Hose - Outboard 10ft

Ships Jan 15 - Feb 4

NOW $163.15
SeaStar Thru Bulkhead Steering Hose - Outboard 11ft

Out of Stock

Notify me when back in stock

NOW $179.00

Sold Out
SeaStar Thru Bulkhead Steering Hose - Outboard 12ft

Ships Jan 15 - Feb 4

NOW $179.00
SeaStar Thru Bulkhead Steering Hose - Outboard 13ft

Out of Stock

Notify me when back in stock

NOW $189.00

Sold Out
SeaStar Thru Bulkhead Steering Hose - Outboard 14ft

Out of Stock

Notify me when back in stock

NOW $199.00

Sold Out
SeaStar Thru Bulkhead Steering Hose - Outboard 15ft

Ships Jan 15 - Feb 4

NOW $208.95
SeaStar Thru Bulkhead Steering Hose - Outboard 16ft

Ships Jan 15 - Feb 4

NOW $218.45
SeaStar Thru Bulkhead Steering Hose - Outboard 17ft

Out of Stock

Notify me when back in stock

NOW $219.00

Sold Out
Add Items to Cart

💬 Report incorrect product information

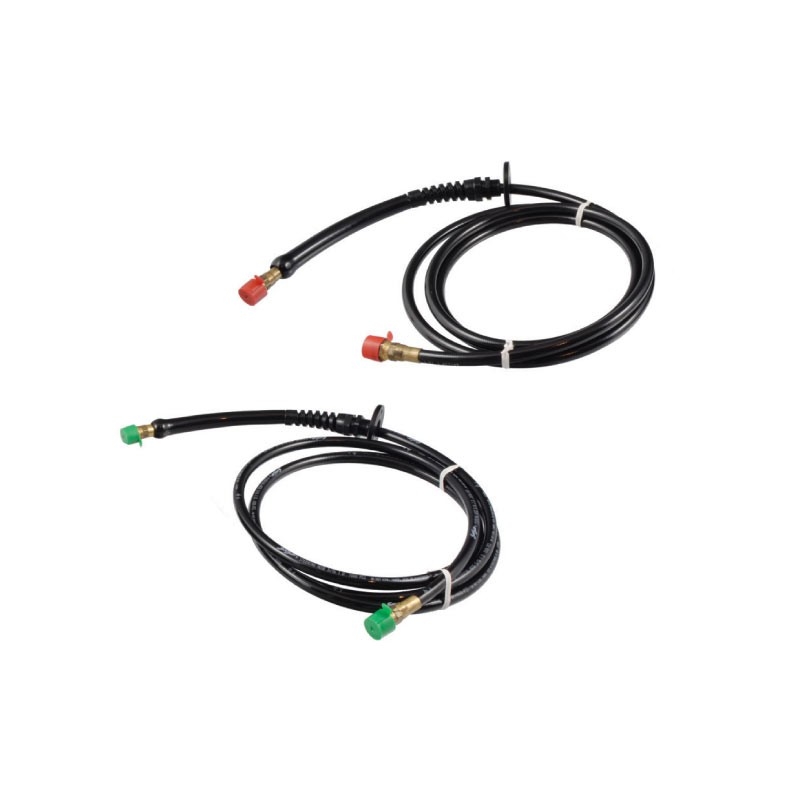

SeaStar Thru Bulkhead Steering Hose - Outboard 3-17ft

Click on the image above to view full picture

Details

Details

Neat, professional installation

The SeaStar Thru Bulkhead Steering Hose is a ready-made quick fit hydraulic hose with thru bulkhead fittings installed. It suits SeaStar outboard, sterndrive and inboard applications. It's designed to provides professional finish to hydraulic installations, as well as providing kink and abrasion protection to the hose where it passes through the splash well (or bulkhead) on the boat. Supplied complete with two brass swaged fittings (3⁄8" tube thread), thru bulkhead fitting as well as rubber boots to prevent hose kinking at the cylinder end. The outboard hose has a 70 bar (1000psi) working pressure rating.

SeaStar Thru Bulkhead Steering Hose - Outboard Features:
  • Integral bulkhead fitting
  • Kink and abrasion resistant
  • Suits SeaStar outboard, sterndrive and inboard applications
  • Supplied complete with two brass swaged fittings (3⁄8" tube thread), thru bulkhead fitting as well as rubber boots to prevent hose kinking at the cylinder end
  • 70 bar (1000psi) working pressure rating
  • Available lengths: 3 to 17ft

Installation Instructions:
  • Determine desired area where the hoses will exit the transom. DO NOT mount below the waterline of the boat as this is NOT a fluid tight fitting.
  • Drill two 1" holes through the outside (the engine side) of the splashwell, inside along the gunwhale or through PVC tubing, under the deck to the helm pump. Note that the bend restrictor is to be installed onto the steering cylinder. DO NOT remove the protective end caps until connection to the cylinder and the helm pump are ready to be made.
  • Secure bulkhead mounting plate to the splashwell of the boat using 3 of #10 screws (not supplied).
  • Thread the pigtail fitting onto the bulkhead mount plate and torque to 20 in-lb.
  • Secure Hydraulic hose to the steering cylinder and slide the bend restrictor over the swage fitting.

Note: DO NOT cut SeaStar Outboard hoses. Product is sold individually.
