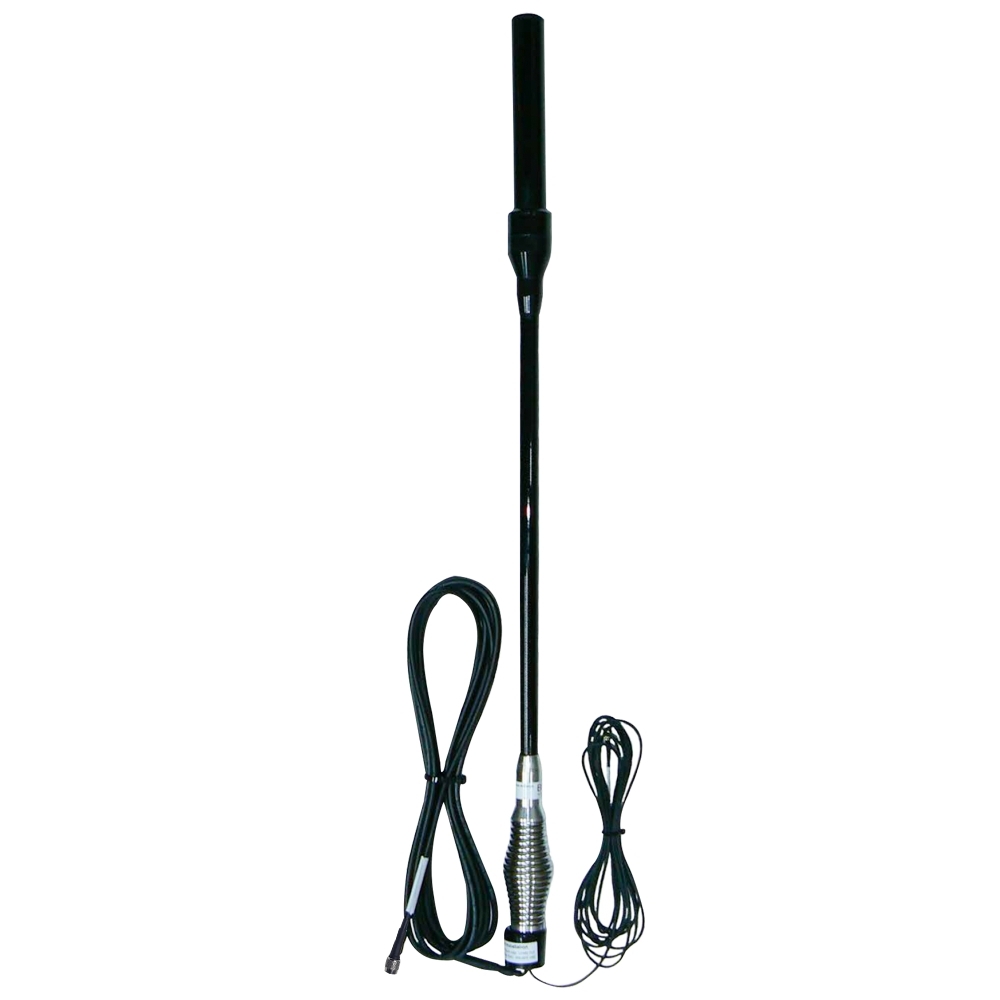

Beam Whip Dual Mode Antenna

Click on the image above to view full picture

More Views

Details

Details

The whip design provides for increased roofline clearance and is designed to be extremely flexible in its installation options, from bull bars, roof racks or pole mounts.
The antenna includes 5m of both Iridium and GPS antenna cable, making the RST706B a very cost-effective solution.


Specifications:
Iridium Beam Whip Dual Mode Antenna Specifications
General
AntennaIridiumGNSS
PolarizationRight Hand Circular (RHCP)Right Hand Circular (RHCP)
Axial Ratio3dB at boresight3dB
Impedance50 Ohms50 Ohms
VSWR? 2:1? 2:1
Amplifier Gain5dBi26 plus or minus 2dB
Noise Figure2.5dB Max
DC groundingYesYes
CableIncludes 5m or 16.4ft of LMR240UFIncludes 5m or 16.4ft of RG316
Environmental
TemperatureDegrees degreesCDegrees degreesF
Operating Temp-40 degreesC to +85 degreesC-40 degreesF to 185 degreesF
Physical
Colour Black
Material Black fiberglass radome, black finish aluminium ferrules, 304 stainless steel barrel' spring, external coaxial cables and terminations
Mounting requirementsMinimum M12 hole
Dimensionsmminches
Antenna800 H 31.5 H
Weightkglbs
Weight2.75.9
Connectors

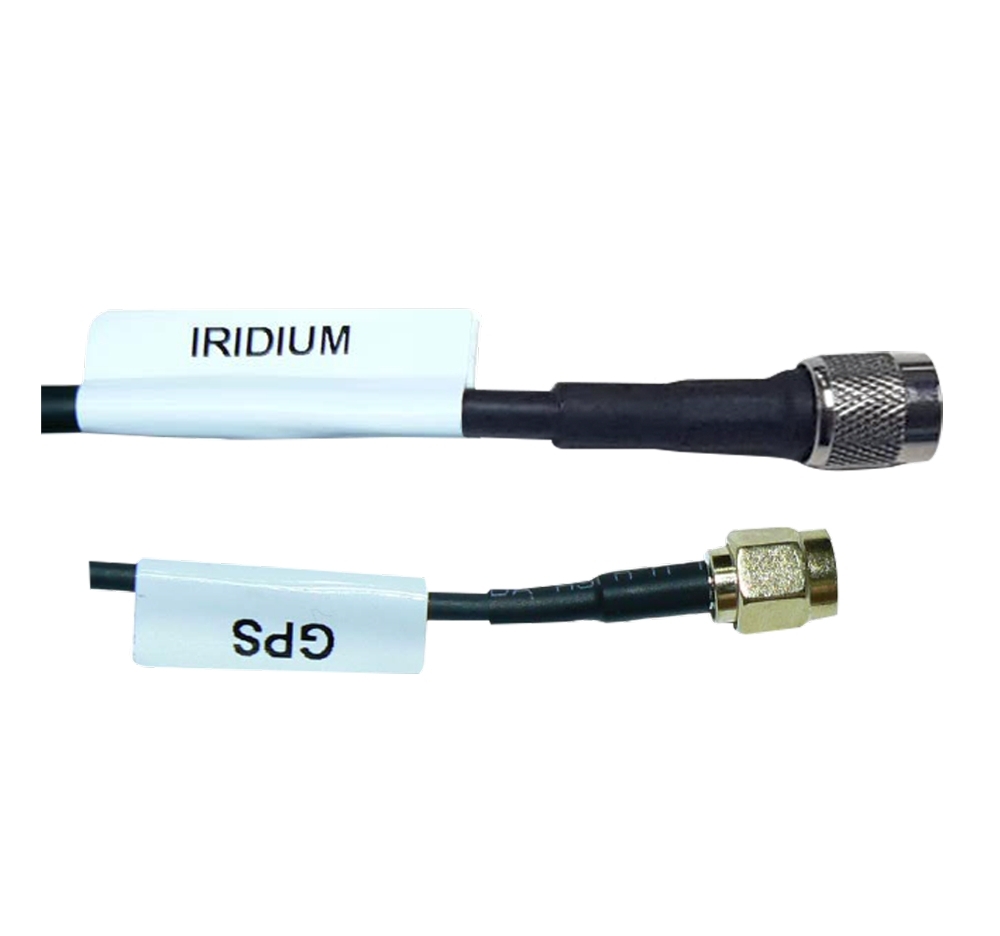

IridiumTNC Male
GNSS (GPS)SMA Male
Frequency
Iridium1616 - 1626 MHz
GNSS (GPS)1575 plus or minus 10 MHz
