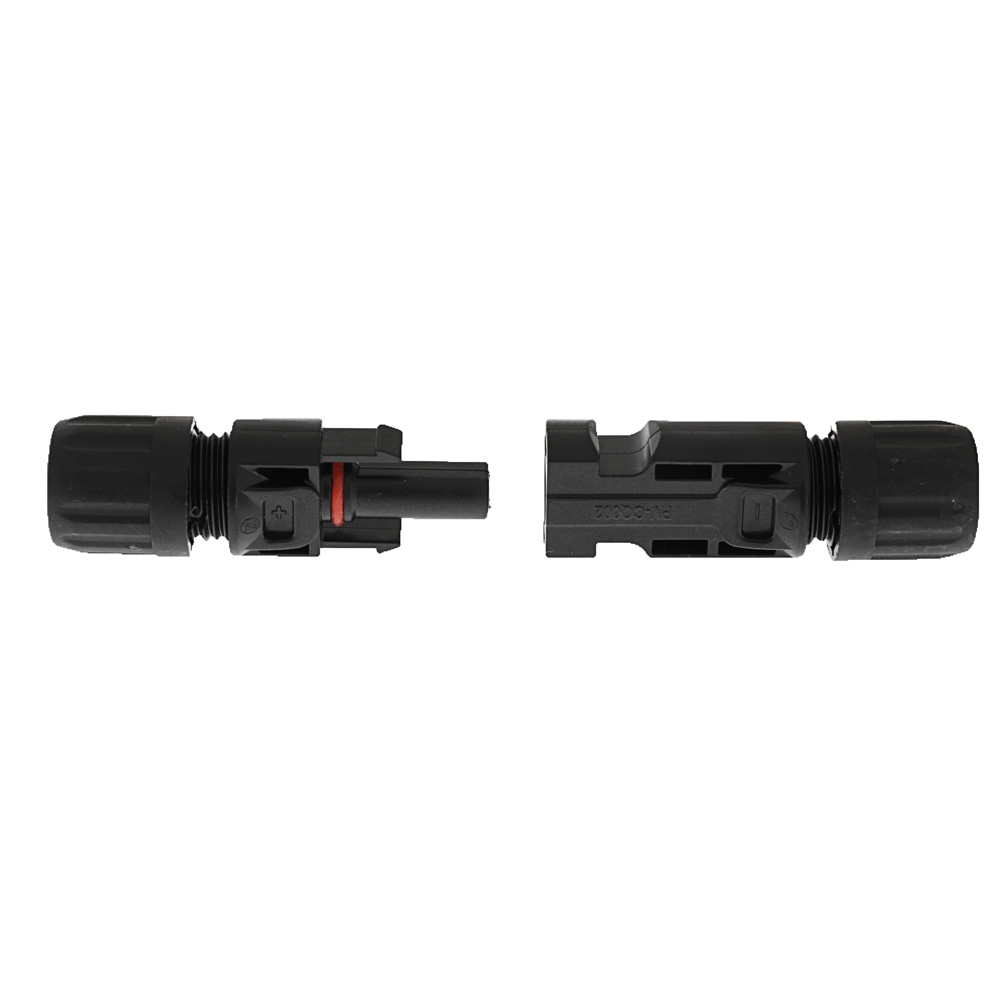

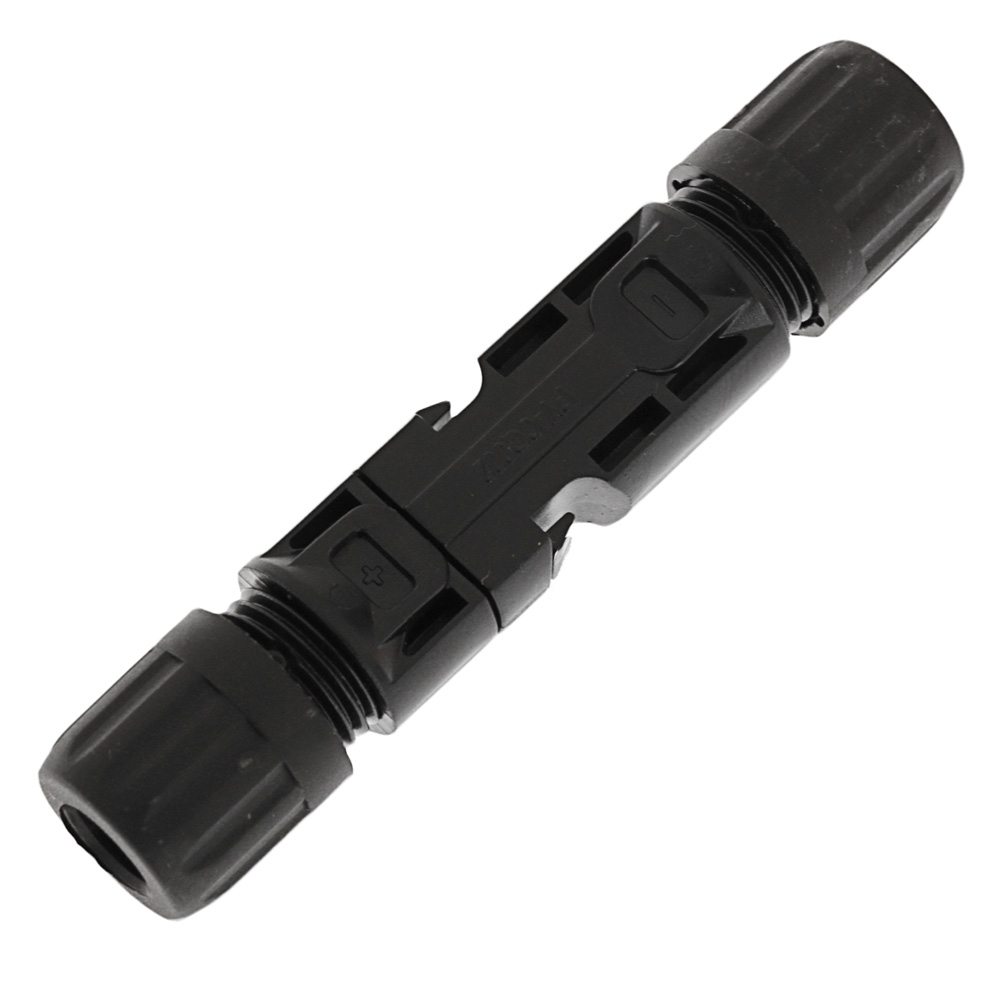

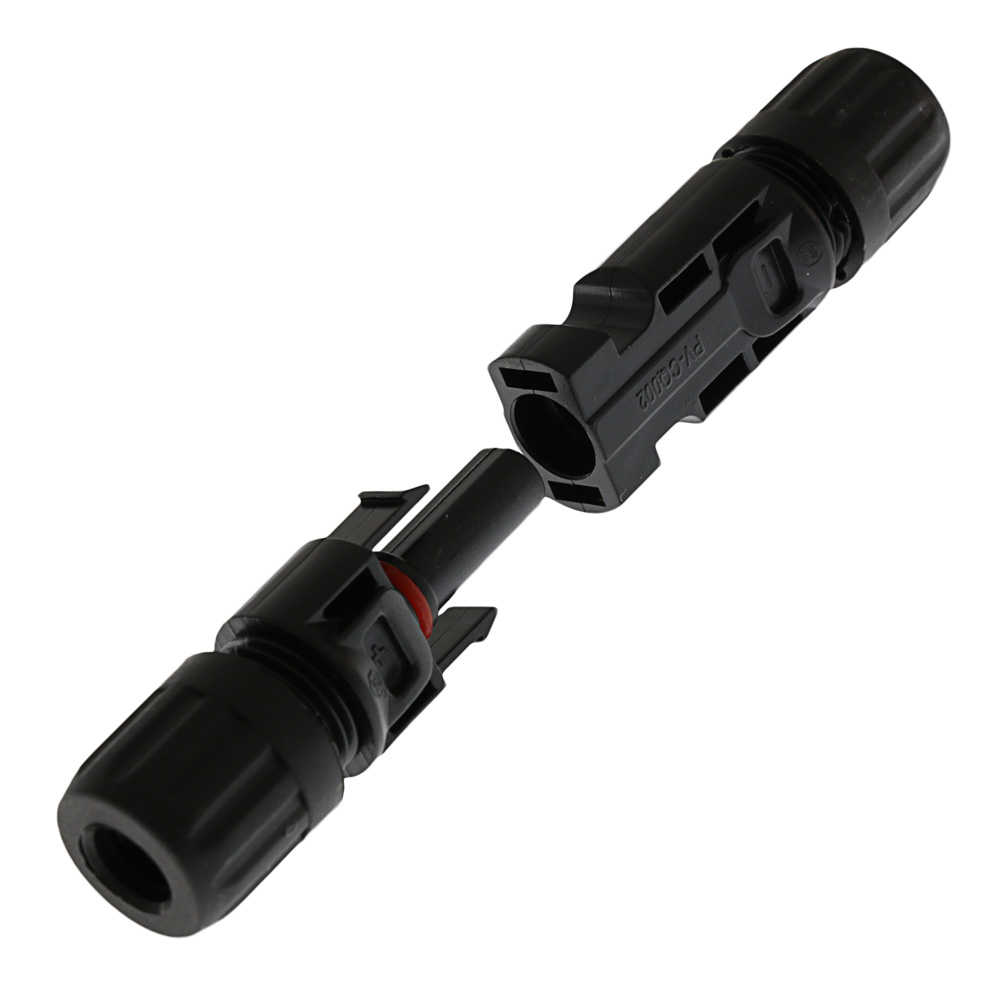

Solar Cable Connector

#9143844
Warranty Badge - 12-Months
In Stock - Ready to Ship
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $9.19

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

More Views

Details

Details

Solid, relaible connection

This Solar Cable Connector is used with the cable, with an auto-lock structure to make electrical contact with a more reliable connection for solar systems engineering, solving the problem of cable installation process.

MC4 Solar Connectors Features:
  • Model: ZY-1-2
  • Working current: 30A (6mm2)
  • Rated Voltage: DC1000V (TUV)
  • Contact resistance: <=0.5m?
  • Insulation resistance: 500M?
  • Suitable single conductor cable section: 1.5mm2--6mm2
  • Cable outside diameter range: 5mm - 7mm
  • Ambient temperature: -40 + 105
  • Protection grade: IP67
  • Protection class: Class II
  • Contact: copper(cn),nickel plating(sn)
  • Flame class: UL94-VO
  • Terminal connection method: crimping
