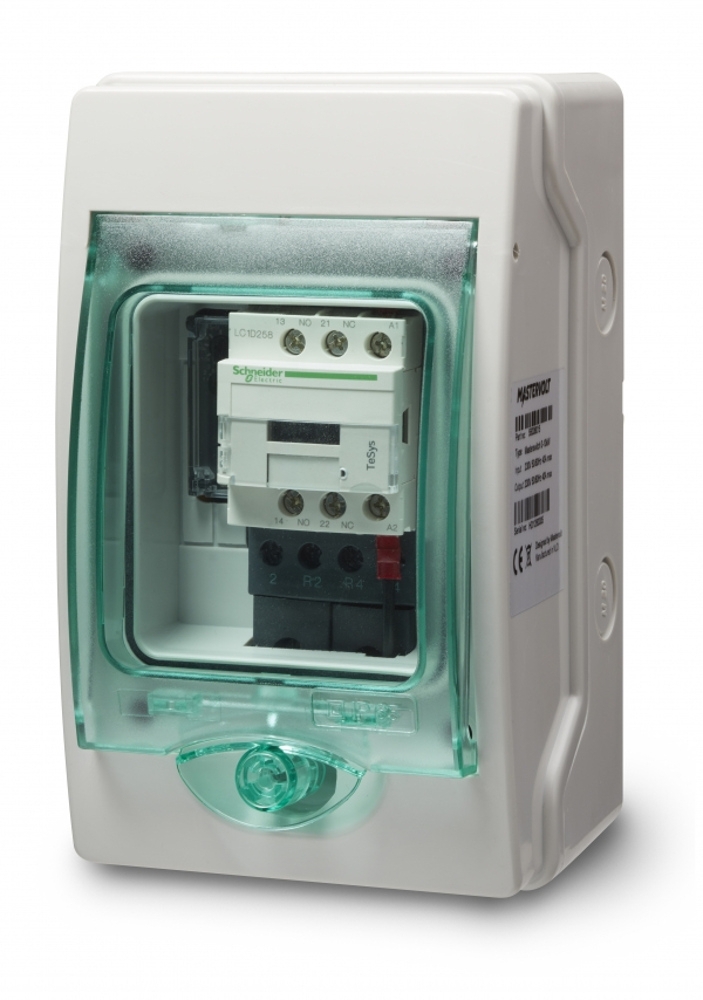

Mastervolt Masterswitch 3kW 120V

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Mastervolt CombiMaster Inverter/Charger 24/3000-60 230V

Mastervolt CombiMaster Inverter/Charger 24/3000-60 230V
Why pay $2,869.00
ONLY $2,169.00
SAVE $700.00!
Details

Details

Masterswitch 3 kW (120 V)
  • Two AC inputs, for example grid power and generator.
  • One outlet to AC power group.
  • Automatic switching.
  • Power transfer up to 25 kW, input/output from 20 to 125 A.
The Masterswitch Fuses version includes circuit breakers.
Specifications:
General specifications
Nominal input voltage120 V (50/60 Hz)
Input voltage range100-125 V
Number of inputs2
Number of outputs1
Dimensions, hxwxd 200 x 110 x 115 mm
7.9 x 4.3 x 4.5 inch
Weight 1.2 kg
2.6 lb

Technical specifications
Connection for remote controlno
LED indication on enclosureno
Nominal input current generator25 A
Nominal input current grid25 A
Generator input switchno
Time delay generator input0-10 sec (adjustable)
Nominal current generator output25 A
Automatic circuit breakersno, system dependent
Power consumption (AC all inputs)7 W
Power consumption (only inverter power)0 W
Transfer timeswitch on 12-22 ms / switch off 4-19 ms
Temperature range (specified) -5 degreesC to 60 degreesC
23 degreesF to 140 degreesF
Temperature range (ambient temp.) -25 degreesC to 70 degreesC
-13 degreesF to 158 degreesF
Temperature range (storage/non operating) -60 degreesC to 80 degreesC
-76 degreesF to 32 degreesF
Relative humiditymax. 95%, non condensing
Frequency watchno
Cable size0.5-10 mm/AWG 20-7
Protection degreeIP55
MasterBus compatibleno



Product Data Sheet
