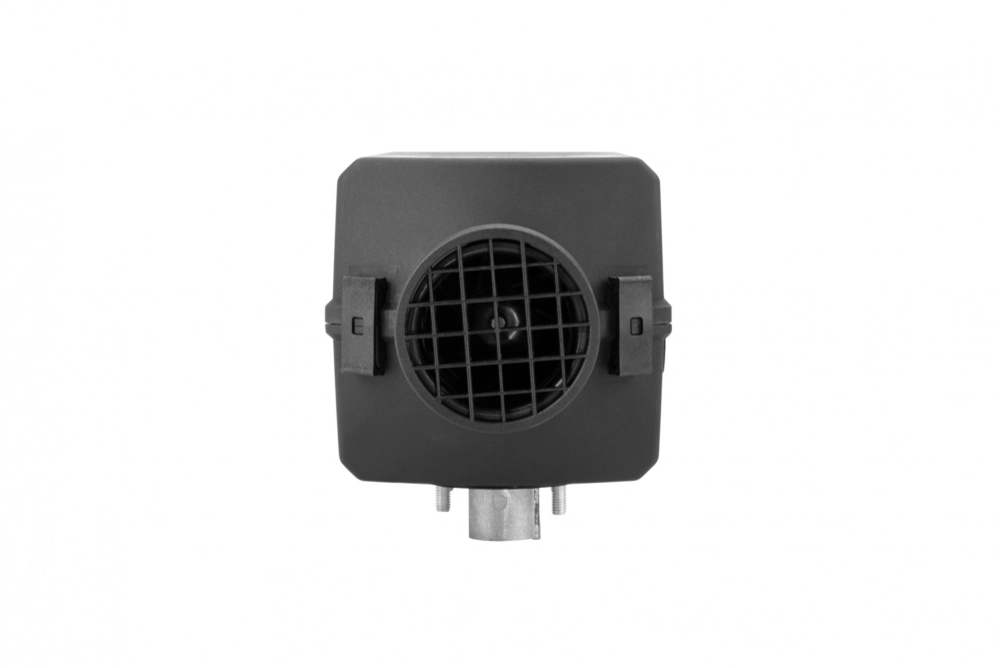

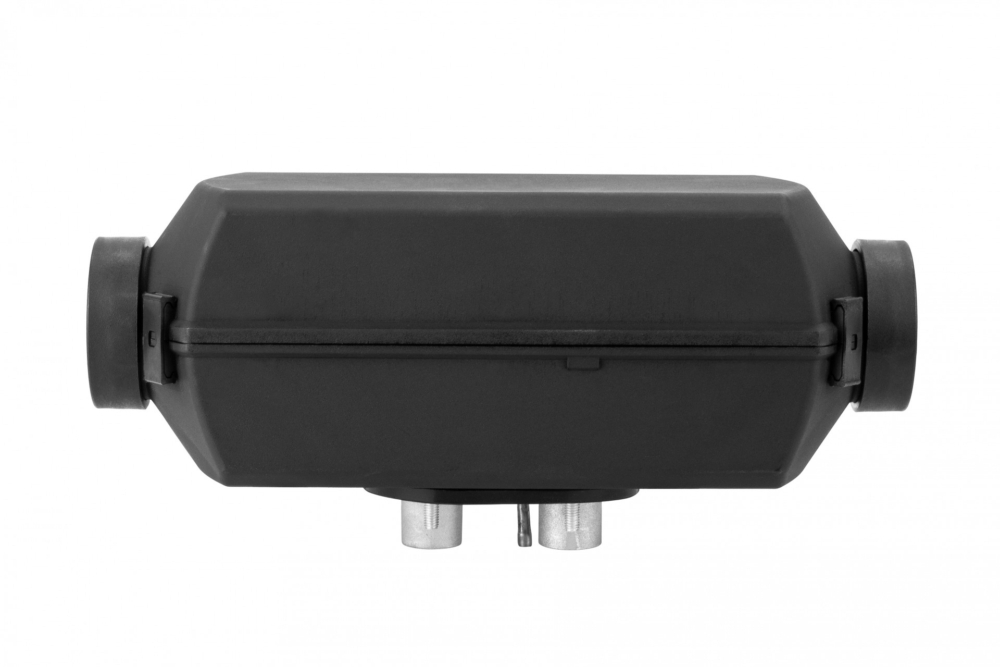

Autoterm Air 2D 12V Air Heater

Compact diesel heater

The Autoterm Air 2D 12V Air Heater uses fresh air from outside or from a well-ventilated room, then heats it up quickly, thus providing comfort and warmth in low temperature environments. With its compact design, AUTOTERM Air 2D can be easily installed or retrofitted in almost any land vehicle, marine transport vehicle, whether you choose the 12V or the 24V DC version. This is a great product for those who need to additionally heat small truck cabins, commercial vehicle cabins and cargo compartments, small campers, off-highway vehicles or boats of up to 33 ft/10 m.

Autoterm Air 2D 12V Air Heater Features:

• Comfort and warmth in low temperature environments
• Produces up to 86 m3 of hot air flow hourly, and maintain your desired temperature
• Excellent fuel economy (even at maximum power), consuming only 0.24 litres of diesel fuel per hour
• Brushless induction motors that ensure low noise levels as well as a long lifetime
• Operates in extreme environments and temperatures as low as -45°C/-49°F

Autoterm Air 2D 12V Air Heater Specifications:

• Voltage: 12V or 24V
• Heating medium: Air
• Heating power: 2.0 kW (high) / 0.8 kW (low)
• Heated air volume: 86 m3/h (high) / 34 m3/h (low)
• Power consumption: 29 W (high) / 10 W (low)
• Max. work altitude (MASL): 1600 m (standard control unit) / 2500 m (High altitude control unit)
• Fuel: Diesel
• Fuel consumption: 0.24 l/h (high) / 0.10 l/h (low)
• Control mode: Manual, standard remote control, modem
• Compatible control panels: PU-5, PU-10, PU-22, PU-27, Comfort Control
• Weight of the heater: 2.9 kg

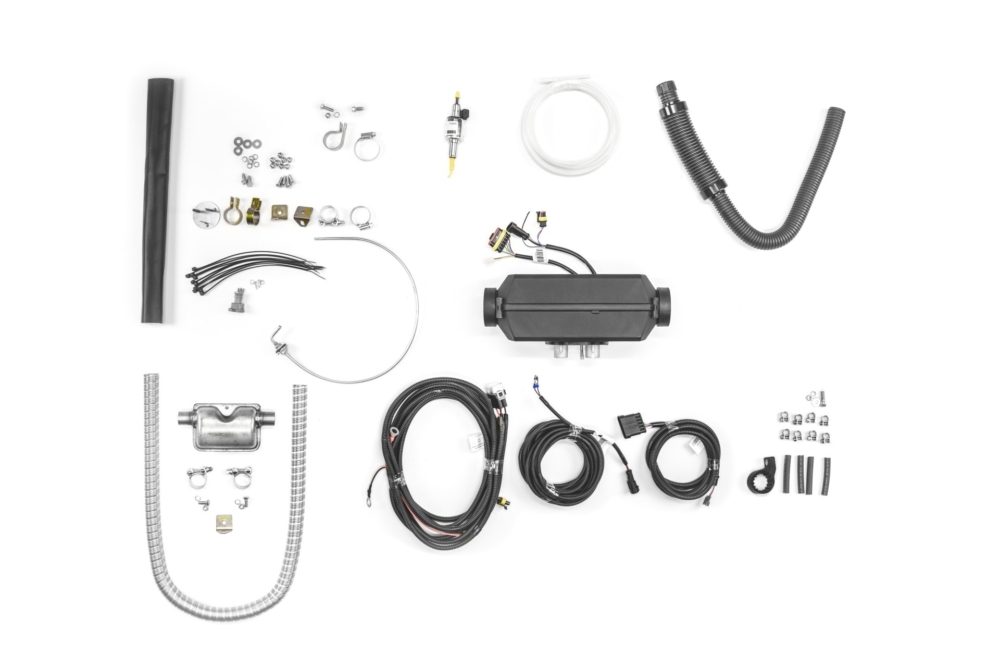

• Weight of the set: 6.4 kg
• Heater dimensions: 310x119x145 mm
• Package dimensions: 40x36x17 cm
