Quick QNC Panel Mount Chain Counter
Quick QNC Panel Mount Chain Counter
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Easy to use

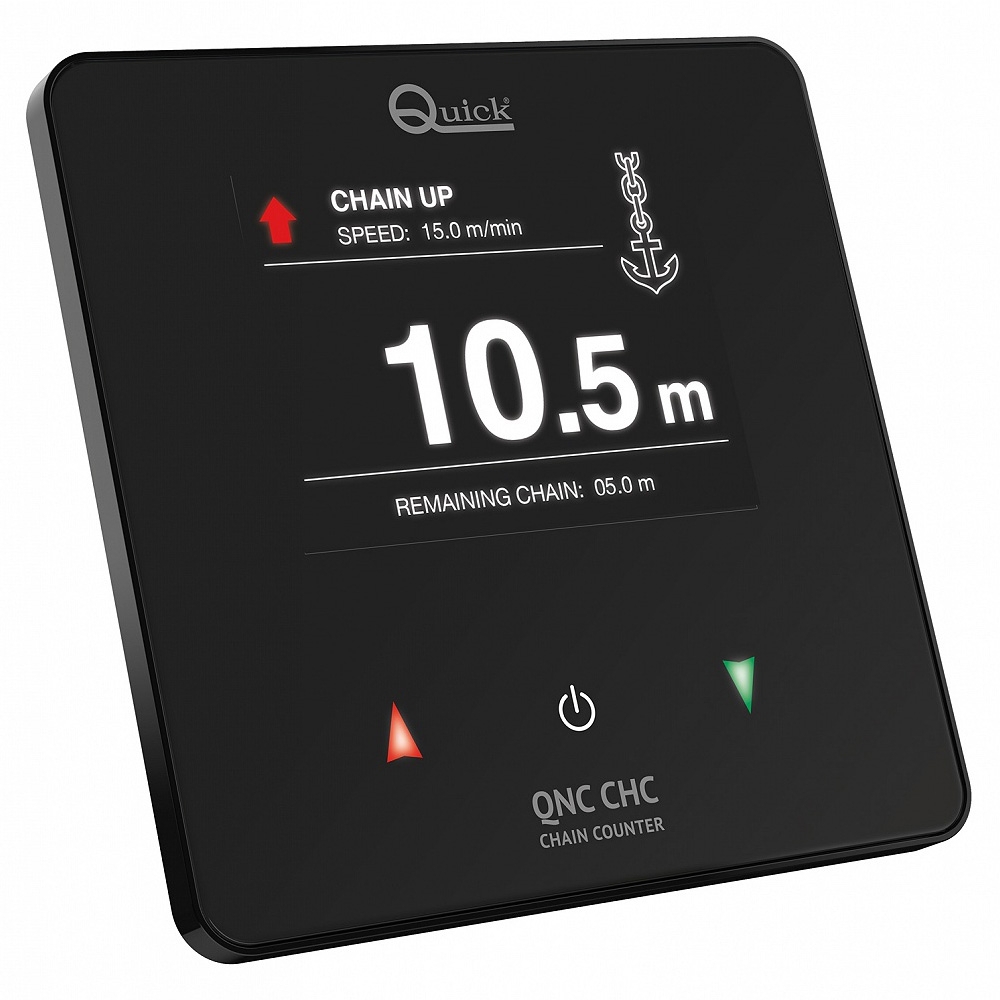

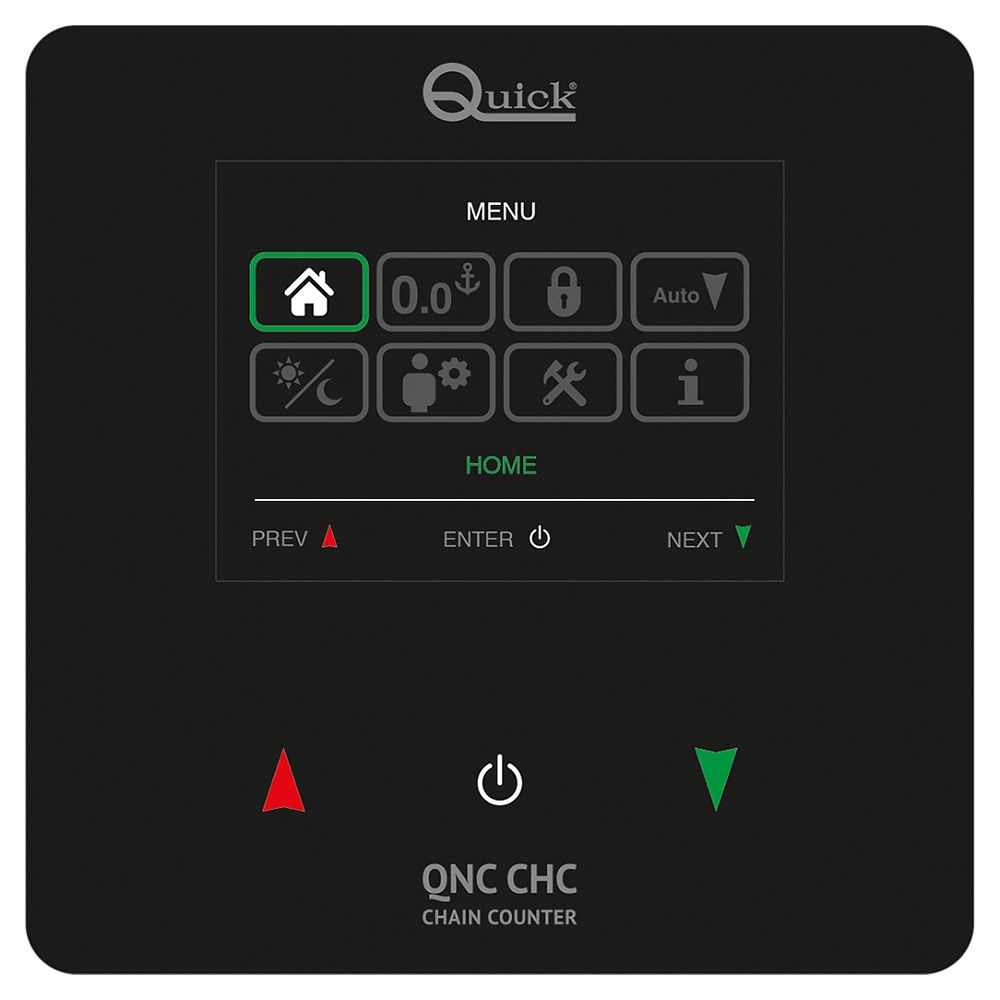

Quick QNC Panel Mount Chain Counter is a complete and reliable tool to remotely operate the windlass and check the length of the lowered chain by means of the IPS 88.9mm high-brightness colour graphic display. The panel surface is completely black tempered glass. It features an automatic descent function, Up alarm function, an anchor weighing function in case of sensor failure and windlass management with auto free fall.
Quick QNC Panel Mount Chain Counter Features:
- Automatic descent function
- Up alarm function
- Anchor weighing function in case of sensor failure
- Windlass management with auto free fall
- Display of the lowered chain length, in metres, feet and fathom
- Glass front
- Extremely thin profile
- Capacitive keys
- High brightness 88.9mm (3.5") colour graphic display
- Multilingual user interface
- Power supply 12/24 VDC
- Functioning over a wide range of environmental temperatures
- Protection rating IP67
- CAN bus Communication Interface
Quick QNC Panel Mount Chain Counter Specifications:
- Dimensions: 10.16 x 10.16 x 10.16 cm (4 x 4 x 4 in)
- Supply voltage: 12/24 VDC
- Current absorbed when idling: 160 mA
- Operating temperature: -20°C - +70°C (-4°F - +158°F)
- Degree of protection: IP67
- Weight: 270g (320g with protective cover)
What's in the box:
- Chain counter QNC CHC
- Protective cover
- Chain counter sensor kit
- Screws for fastening
- Gasket
- Power supply cable and I/O 0.5 m
- Drilling template
- Installation and user manual
