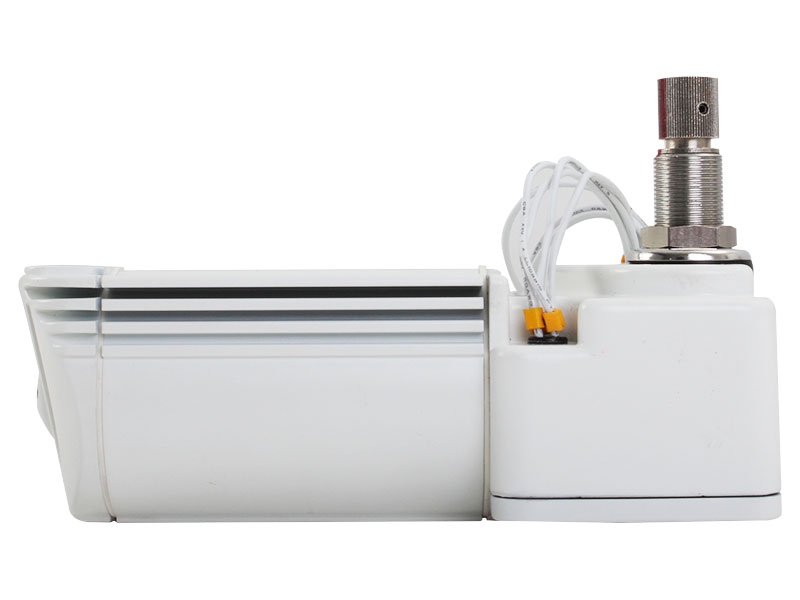

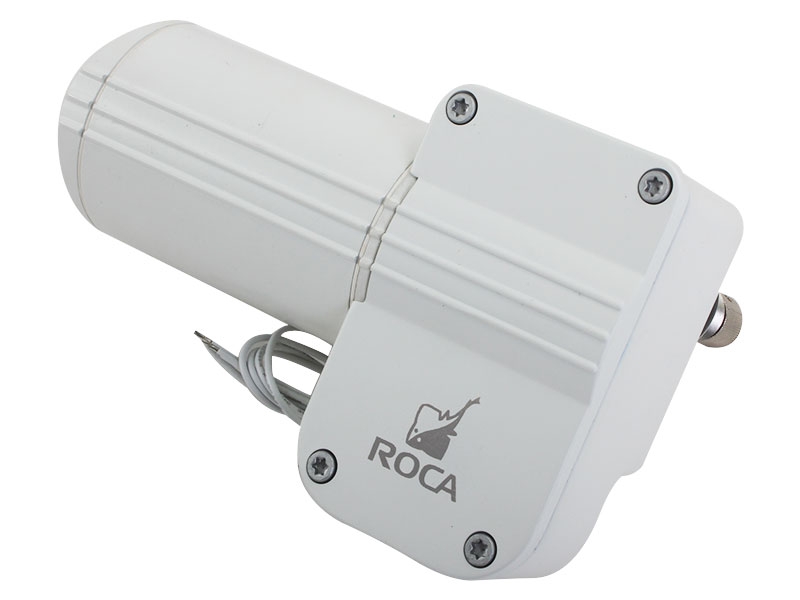

Powerful windscreen wiper motor
Get the best wiper system for your boat. The Roca Marine W12 Windscreen Wiper Motor is a powerful windscreen wiper motor is supplied with a separate insulated ground cable making it suitable for use in metal, GRP and wooden boats. The W12 is waterproof (IP65), CE approved and EMC protected. It features a strong motor housed in a white powder lacquered aluminium cover with a stainless steel 304 shaft.
The Roca Marine W12 Windscreen Wiper Motor has an adjustable sweep angle between 45° and 110° and has left or right self-parking options (standard setting is 45° right). It also features two speed settings at 35 sweeps per minute and 55 sweeps per minute. The W12 produces 12Nm of torque and is recommended for wiper arms up to 610mm and blades up to 560mm long. Wiper arms for the W12 series can be standard, adjustable tip or pantograph.
Roca Marine W12 Windscreen Wiper Motor Features:
- 2 speed, self-parking
- Heavy Duty motor, 12Nm
- Driveshaft in stainless steel
- Various sweep angle: 45 - 110°
- CE approved; EMC protected
- Spray proof IP65
- Insulated ground for metal, plastic and wooden boats
- Powers up to 610 mm x 560 mm /24" x 22" arm/blade
combinations
Roca Marine W12 Windscreen Wiper Motor Specifications:
- Voltage: 12V or 24V
- Required Fuse Size: 3A
- Motor Dimensions: 170mm long gear case to motor bracket x 100mm
wide at gear case end x 59mm deep excluding spindle (6.7" x 3.9" x
2.3")
- Spindle Length: 42mm (1.7") or 68 (2.68”)
- Max Bulkhead Thickness: 16mm (0.6")
- Spindle Shaft Connection: 13.8mm Diameter (72 splines)
- Maximum Arm Length: 610mm (24")
- Maximum Blade Length: 560mm (22")
| Code | L1 | L2 | Volt |
|---|---|---|---|
| 533011 | 16mm (0.63in) | 42mm (1.65in) | 12V |
| 533012 | 16mm (0.63in) | 42mm (1.65in) | 24V |
| 533021 | 42mm (1.65in) | 68mm (2.68in) | 12V |
Note: Wiper arm not included.
Roca Marine W12 Windscreen Wiper Motor Installation Instructions
