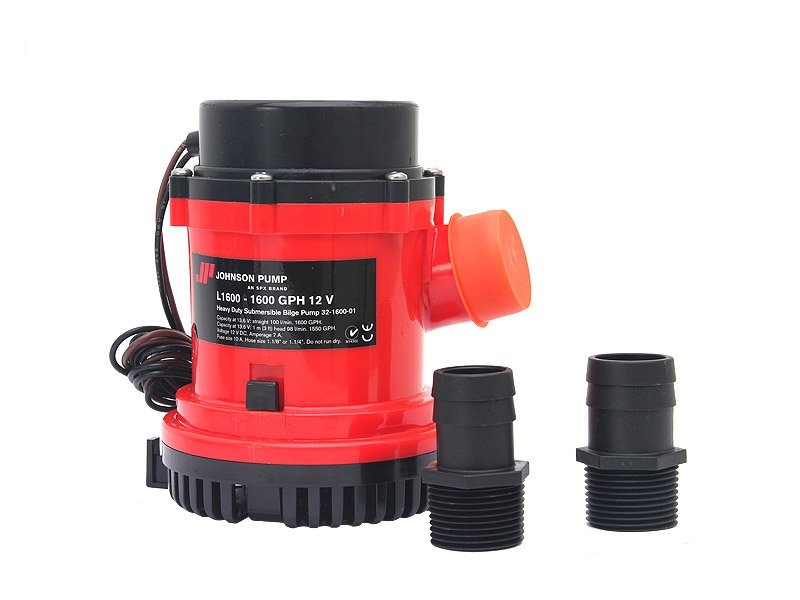

High-quality bilge pump
The Johnson Bilge Pump is your best choice when it comes to high performance pumps. This bilge pump comes with a 12-pole double ball bearing motor designed to maximise head and flow. It’s constructed according to ISO 8849 standards to ensure that it keeps running at optimal levels for longer. Install the Johnson Bilge Pump on your boat if you want a top quality pump.
Johnson Bilge Pump features:
- Heavy duty, 12-pole double ball bearing motor
- Liquid cooled for extended motor life
- Quality engineered mechanical/lip seal
- ISO 8849 Marine and CE standards
- Easily interchangeable with most similar bilge pumps
Johnson Bilge Pump Specifications:
| L450 | L750 | L1600 | L2200 | |
|---|---|---|---|---|
| Hose size: | 3/4" | 1 1/8" | 1¹/8" | 1¹/8" or 1½" |
| Capacity, straight (13.6V/27V): | 40 litre/min - 630 | 73l/min (1150 GPH) | 100L/min/(1600 GPH) | 10L/min/(2060 GPH) |
| (12V/24V): | 92 L/min/(1450 GPH) | 120L/min/(1900 GPH) | ||
| Capacity, 1m head (13.6V/27V): | 33 litre/min - 525 GPH | 60l/min (952 GPH) | 98L/min/(1550 GPH) | 120L/min/(1900 GPH) |
| (12V/24V): | 88L/min/(1400 GPH) | 110L/min/(1750 GPH) | ||
| Voltage: | 12 V DC | 12 V DC | 12/24 V DC | 12/24 V DC |
| Amperage: | 2.5 A | 12V - 7A | 12V - 7.5A | |
| 24V - 3.5A | 24V - 4.5A | |||
| Fuse size: | 5A | 12V - 10A | 12V - 12A | |
| 24V - 6A | 24V - 6A | |||
| Body: | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Shaft: | SS2343 | SS2343 | SS2343 | SS2343 |
| Shaft seal: | Lip seal | Lip seal | Lip seal | Mechanical seal,carbon/ceramic |
| Wire size: | 1.3 mm - 16 GA | 1.5mm2 | 1.5mm2 | |
| Max height: | 112 mm | 146 mm | 149mm | 177mm |
| Max dia: | 70 mm | 108mm | 108mm | |
| Weight: | 0.27 kg | 1.3 kg | 2.25 kg |
Johnson Bilge Pump Instruction Manual
