All wash-down and water-system strainers are designed to prevent debris and other particles from damaging the pump or passing through the system to the final outlet.

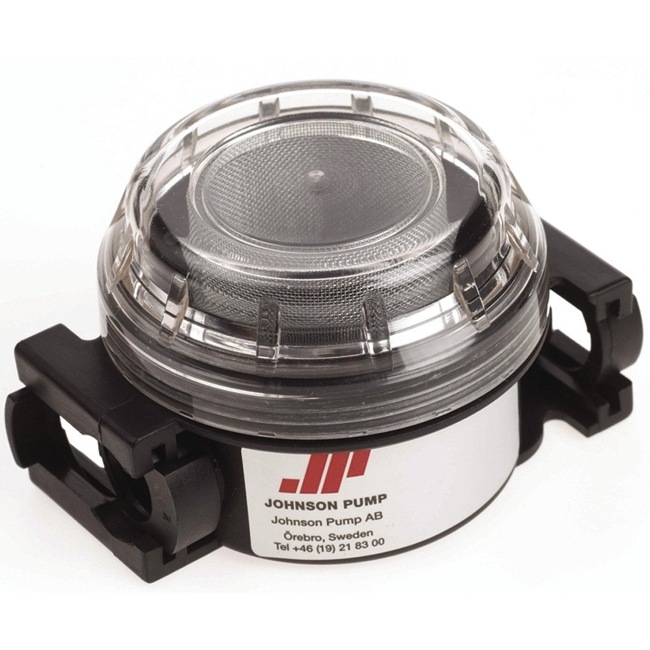

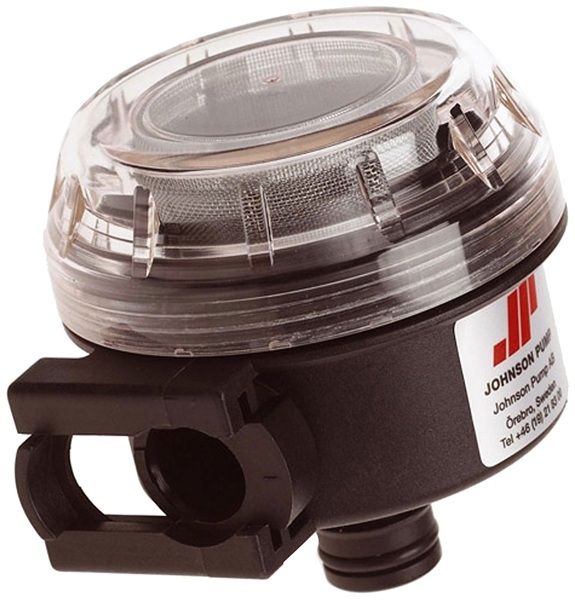

The PUMProtector inlet and universal strainers are designed to make your life simpler. Both of these strainers feature transparent covers for simple inspection, a wide variety of KlickTite port connectors for simple installation and removal, and high quality materials for simple maintenance. The new design and connectors make it possible to remove the entire unit for thorough cleaning wherever it's most convenient. Johnson Pump recommend 40 mesh for water pressure and wash down pumps and 20 mesh for general purpose pumps.
Specifications:| Inlet and Universal Strainers | |
|---|---|
| Strainer | Polyamide 66, black |
| Cover | Acrylic, clear |
| Screen | Stainless steel, 20 and 40 mesh |
| O-rings | Silicone and EPDM |
| Max. liquid temperature | +50 degreesC /+120 degreesF |
| Max. temperature for drinking water | +30 degreesC / +85 degreesF |
| Diameter | 80 mm / 3.15 |
| Height | 60 mm / 2.35 |
| Weight | 0.15 kg / 0.33 lbs |
| Mesh size | 20 or 40 mesh |
Universal Strainer |
||||
|---|---|---|---|---|
| Product No | Mesh | KlickTite Connector | ||
| 09-24652-01 | 40 | 2x 1/2 hose / 3/8 BSP 2x 3/4 hose / 1/2 BSP |
||
| 09-24652-03 | 20 | 2x 1/2 hose / 3/8 BSP 2x 3/4 hose / 1/2 BSP |
||
Product Data Sheet
