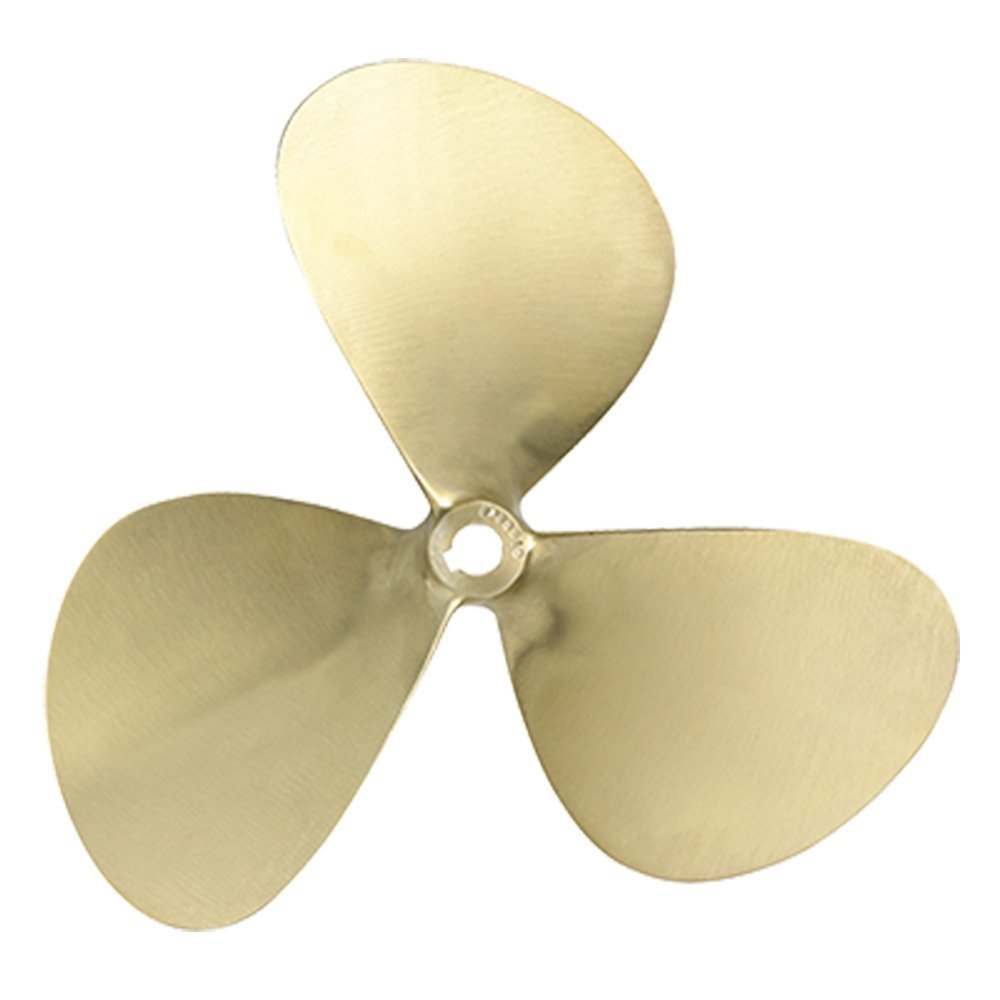

Precision-made for balance
The VETUS P3B 3-Bladed Propeller is made of manganese bronze, an extremely resilient yet flexible material.

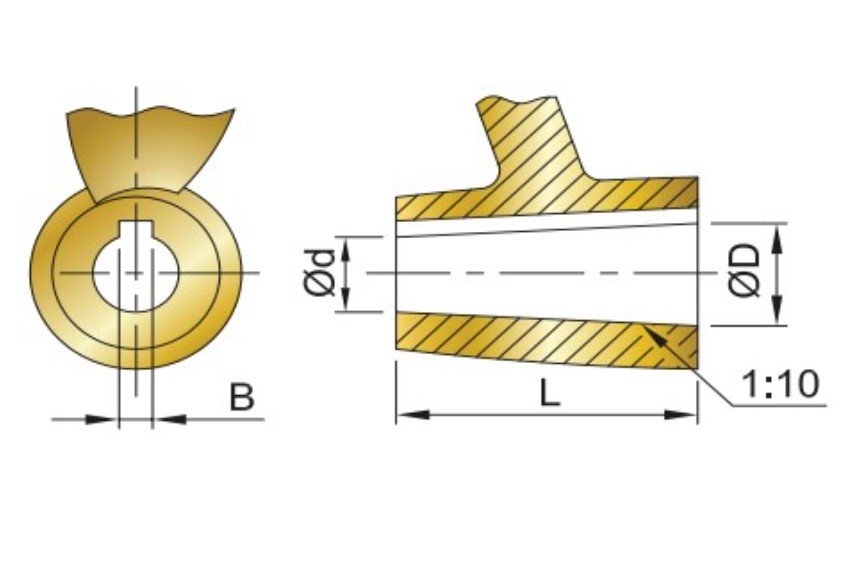

Propeller shaft taper
VETUS propellers have a standard taper of 1:10. The difference between the largest and the smallest diameter of the tapered hole represents 10% of the propeller hub length (D-d=0.1xL).
VETUS P3B 3-Bladed Propeller Features:
- Type P3B
- 3-bladed manganese bronze propeller
- Suited to 'displacement' craft with speeds up to 10 knots
- Pre-machined for Vetus 25mm (SA25) shaft
- Standard shaft holes and keyway
- Disk area ratio Fa/F = 0.52
- For 25 mm shafts with taper 1:10
VETUS P3B 3-Bladed Propeller Specifications:
- Standard taper of shaft holes of Vetus propellers (1:10)
- Number of blades: 3
- Propeller diameter: 12in
- Shaft hole:
Largest diameter (D): 1in (25mm)
Smallest diameter: 3/4in (19mm) - Hub:
Hub length (L): 2 23/64in (60mm)
Keyway width (B): 5/16in (8mm) - Pitch options: 6in, 7in, 8in, 9in, 15in, 16in
- Sense of rotation: choose between Right-handed and Left-handed versions
