Supply your device with the right power

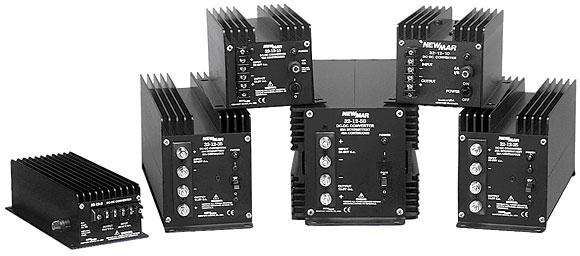

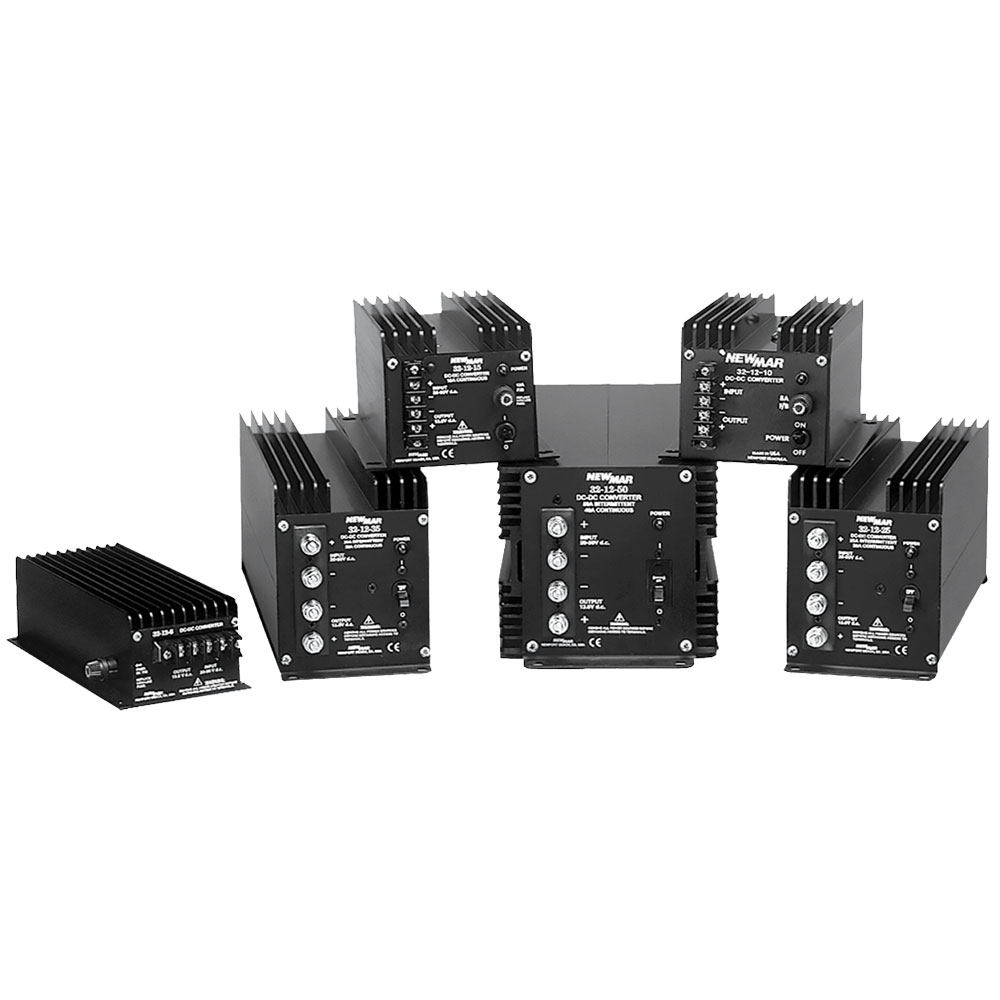

The Newmar DC-DC Converters Standard Series converts 20-50 VDC input to 12 or 24 VDC negative ground output for powering communication/navigation equipment, on negative ground systems. Ideal for powering voice, data and navigation electronics in marine applications.
Newmar DC-DC Converters Standard Series Features:
- Excellent Regulation: Output voltage maintained within 1% under
all line and load conditions within rating
- Heat generated by semi-conductors is extracted and dissipated
by large heat sink fins that maximize air contact for cool
operation and long life of components
- Polyurethane conformal coating on PC boards and
corrosion-resistant anodized aluminium case with heavy duty shock
mounts assure survival in hostile environments
- Numerous converter and load protection circuits
- Current limiting
- Automatic thermal shutdown
- Short circuit proof
- Reverse polarity
- Overvoltage protection
- Carries CE mark
Newmar DC-DC Converters Standard Series Specifications:
- Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC
(or specify) except 24-12-3
- Ripple: 150 mV P-P maximum
- Regulation: 1% Line/Load
- Switching Frequency: 40 Khz
- Efficiency: 85% - Typical.
- Isolation: Output/Chassis; Input/chassis: 250 VDC
Duty Cycle Ratings*:
- Intermittent: 20 minutes max on time, 20% duty. current limit
set at approx. 105% of intermittent rating.
- Continuous: 24 hours, 100% duty *24-12-3: 2 minute max. on
time
- Idle Current: Less than 100 mA (including power "ON" light
)
Operating Temp:
- 0-50˚ C, Derate Linearly From 100% @ 40˚ C To 50% @ 50˚
C.
- Thermal shutdown @ 70˚ C Case Temperature
Mechanical
- Powder coated aluminium heat sink case
- Front panel terminal block
- Heavy duty mounting flange
- Conformal coated PC board
| Model | Input voltage | Output voltage | Output Amps (intermittent) | Output Amps (continuous) | Case Size | Weight |
|---|---|---|---|---|---|---|
| 32-12-6 | 20-50 | 13.6 | 6 | 6 | C-5 | 2.5lbs (1.1kg) |

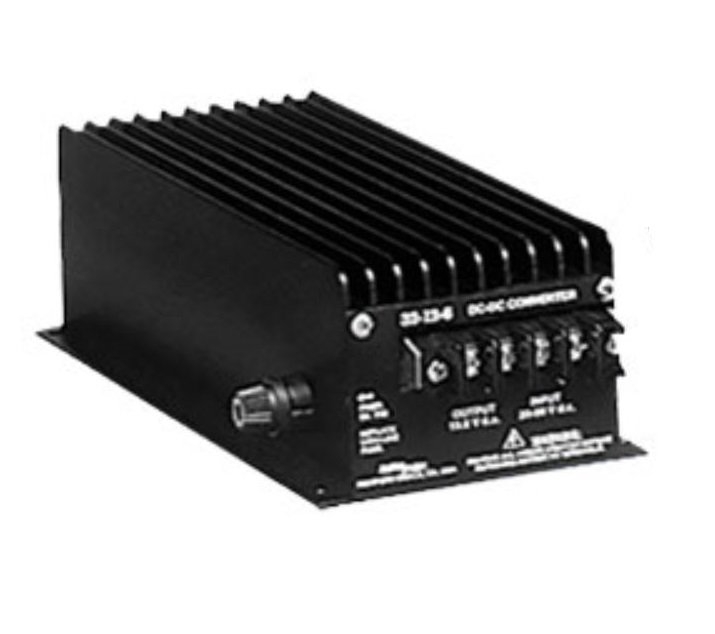

| 32-12-10 | 20-50 | 13.6 | 10 | 10 | C-1 | 4lbs (1.8kg) |
| 32-12-15 | 20-50 | 13.6 | 15 | 15 | C-1 | 5lbs (2.3kg) |
| 32-12-25 | 20-50 | 13.6 | 25 | 20 | C-2 | 7.5lbs (3.4kg) |
| 32-12-35 | 20-50 | 13.6 | 35 | 30 | C-3 | 12lbs (5.5kg) |
| 32-12-50 | 20-50 | 13.6 | 50 | 40 | C-4 | 16lbs (7.3kg) |
Case Size:
| Case | Dimensions (HxWxD) |
|---|---|
| C-1 | 4.5 x 5.9 x 11.0in (11.4 x 15.0 x 27.9cm) |
| C-2 | 6.0 x 4.7 x 14.0in (15.2 x 11.9 x 35.6cm) |
| C-3 | 6.0 x 4.7 x 16.0in (15.2 x 11.9 x 40.6cm) |
| C-4 | 6.2 x 6.8 x 18.1in (15.7 x 17.3 x 46.0cm) |
| C-5 | 2.8 x 4.2 x 10.4in (7.1 x 10.7 x 26.4cm) |
| C-6 | 3.5 x 3.5 x 1.75in (8.9 x 8.9 x 4.5cm) |
