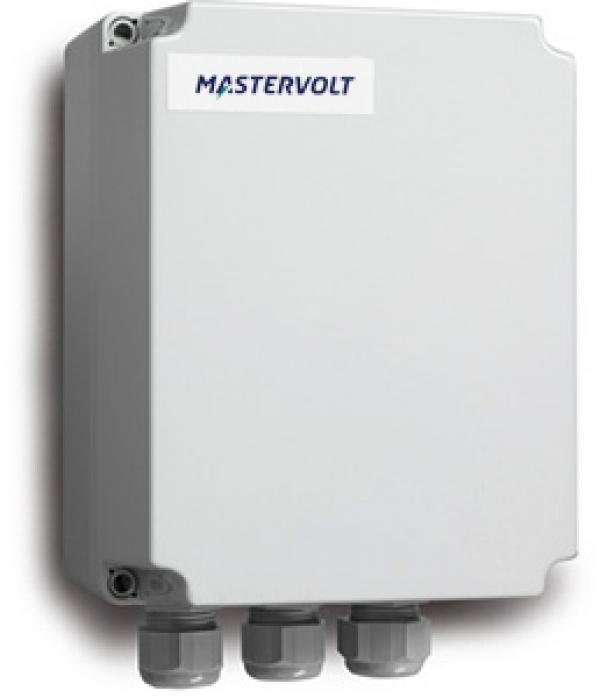

Mastervolt Masterswitch 7kW 120V
Mastervolt Masterswitch 7kW 120V
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
$2,169
$2,899.00
SAVE $730.00!
Masterswitch 7 kW (120 V)
- Two AC inputs, for example grid power and generator.
- One outlet to AC power group.
- Automatic switching.
- Power transfer up to 25 kW, input/output from 20 to 125 A.
Specifications:
| General specifications | ||
| Nominal input voltage | 120 V (50/60 Hz) | |
| Input voltage range | 100-125 V | |
| Number of inputs | 2 | |
| Number of outputs | 1 | |
| Dimensions, hxwxd | 200 x 154 x 148 mm 7.9 x 6.1 x 5.8 inch | |
| Weight | 2.5 kg 5.5 lb | |
| Technical specifications | ||
| Connection for remote control | no | |
| LED indication on enclosure | no | |
| Nominal input current generator | 60 A | |
| Nominal input current grid | 60 A | |
| Generator input switch | no | |
| Time delay generator input | 0-10 sec (adjustable) | |
| Nominal current generator output | 60 A | |
| Automatic circuit breakers | no, system dependent | |
| Power consumption (AC all inputs) | 7 W | |
| Power consumption (only inverter power) | 0 W | |
| Transfer time | switch on 12-22 ms / switch off 4-19 ms | |
| Temperature range (specified) | -5 degreesC to 60 degreesC 23 degreesF to 140 degreesF | |
| Temperature range (ambient temp.) | -25 degreesC to 70 degreesC -13 degreesF to 158 degreesF | |
| Temperature range (storage/non operating) | -60 degreesC to 80 degreesC -76 degreesF to 32 degreesF | |
| Relative humidity | max. 95%, non condensing | |
| Frequency watch | no | |
| Cable size | 0.5-10 mm/AWG 20-7 | |
| Protection degree | IP55 | |
| MasterBus compatible | no | |
Product Data Sheet
