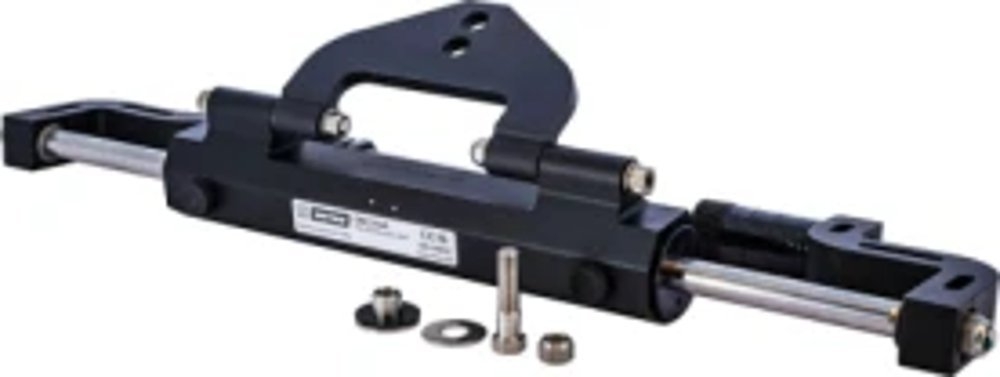

VETUS OBC250A Hydraulic Steering Cylinder for Outboard Engines

Hydraulic steering cylinder for outboard engines / z-drives up to 250 hp. Developed with marine-grade AISI 316L stainless-steel and aluminum components to bring ease and comfort while steering your boat.

This new generation of hydraulic steering cylinders has been engineered with marine-grade components with a robust design to ensure your boat stays on-course always, with excellent responsiviness and powerful steering. With the hydraulic steering the effort needed to steer your boat is reduced exponentially.

Features:

• Aluminum and AISI 316L stainless-steel components ensure superior corrosion and wear resistance
• Robust sealing system prevents the intrusion of seawater and dirt
• Balanced cylinder: same number of turns port to starboard offers a steady steering response
• Suitable for single and twin engines
• Supplied with combined 10 mm hose connections and bleed nipples

• Stroke: 203 mm (8)
• Displacement: 122 cc, 7.4 ci
• Weight (kg): 3,7
• Weight (lbs): 8,15
• Workload: 422 kgf
• Connections: 3,7 kg
• Maximum pressure: 70 bar (1015 PSI)
• Connection: T-fitting 10 mm (3/8) with air vent (HS868)
