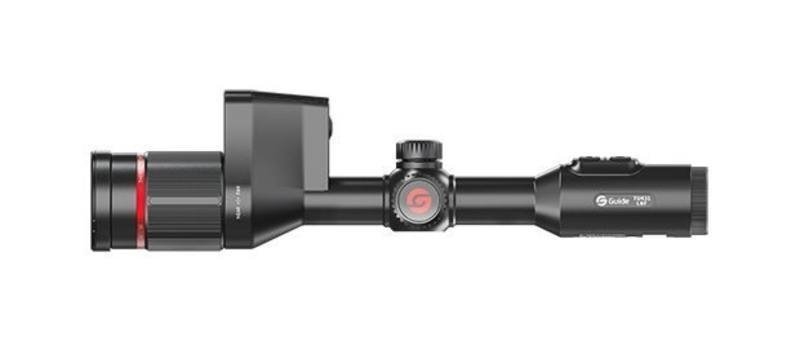

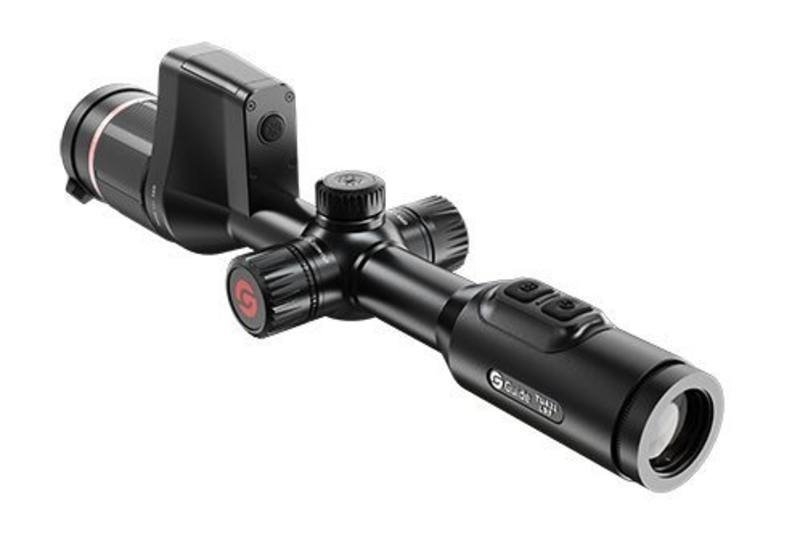

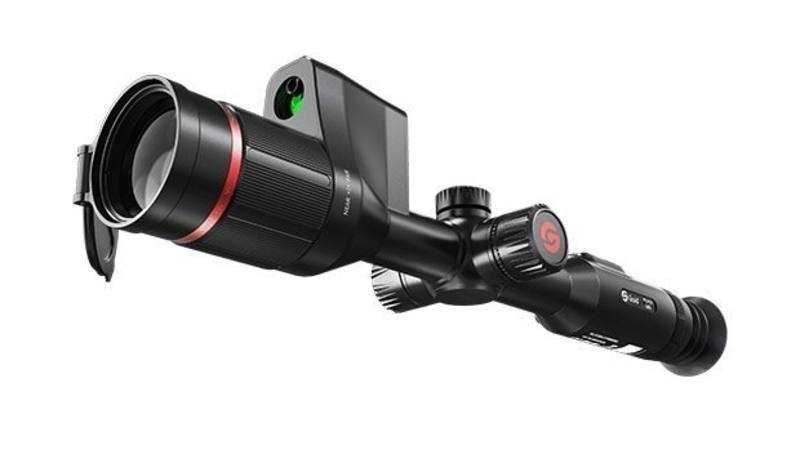

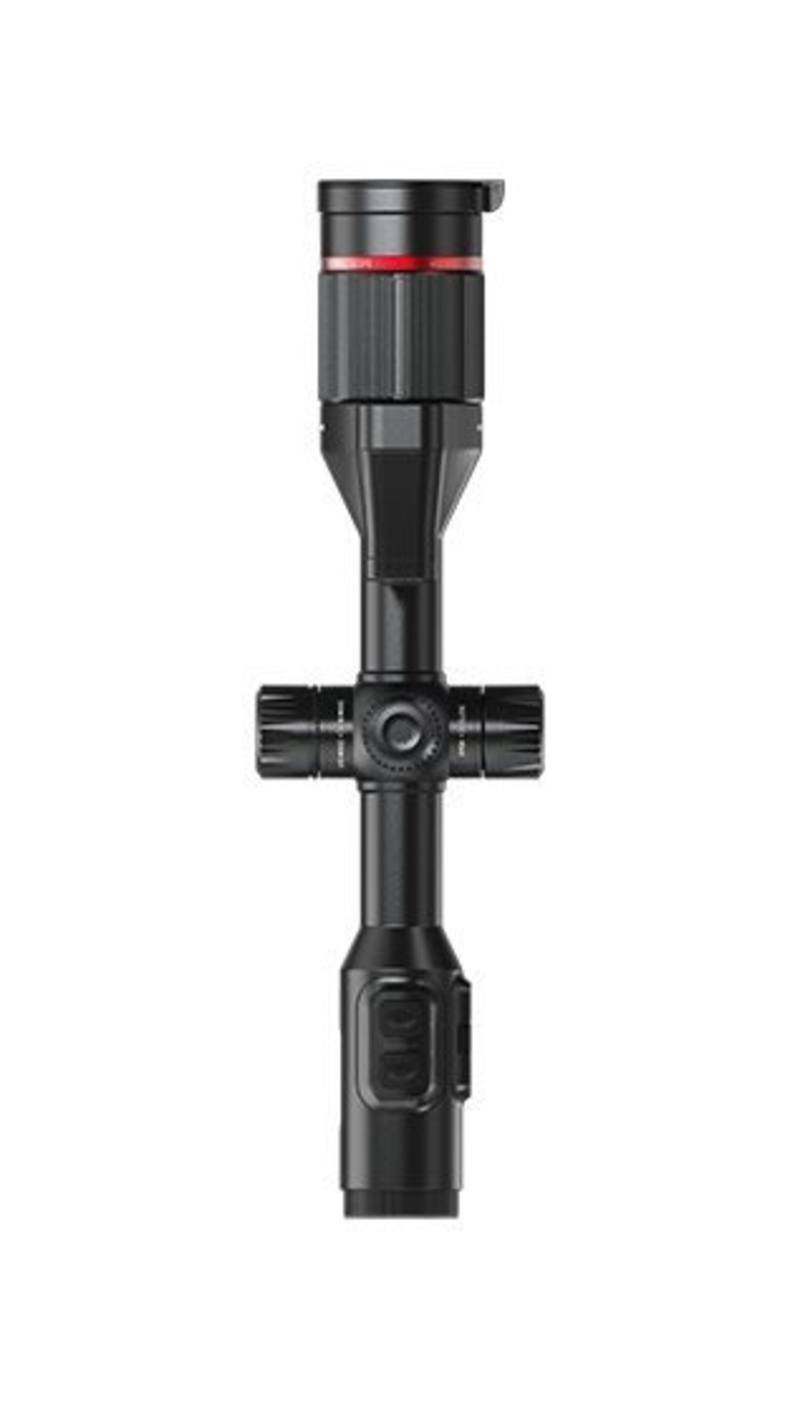

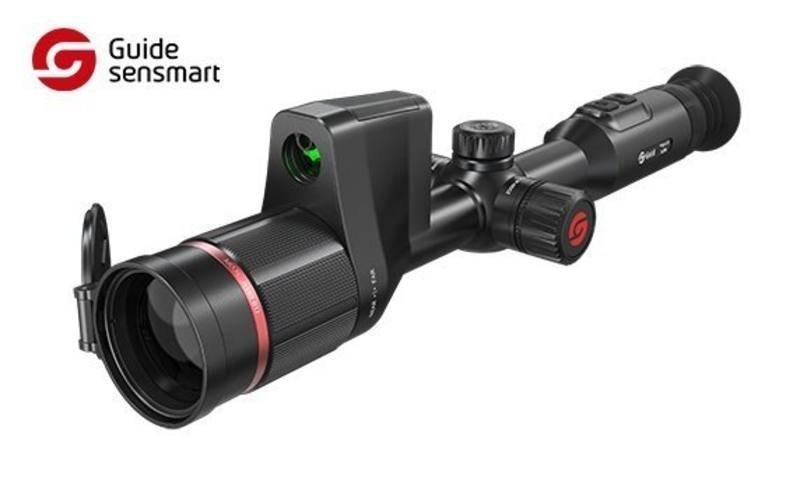

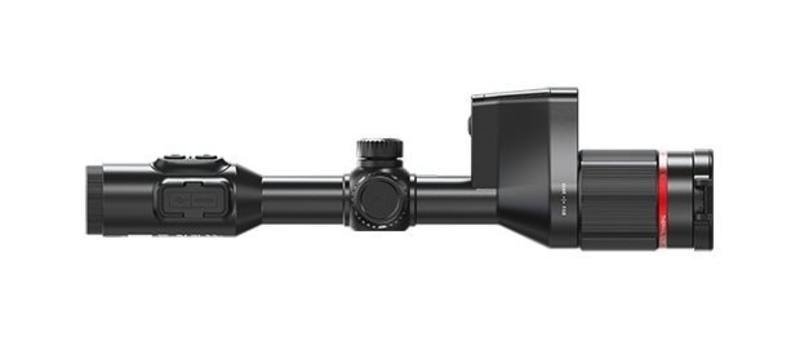

Guide Infrared TU451 Thermal Imaging Scope with Laser Rangefinder 50mm 50Hz

Guide TU451 Thermal Imaging Scope with Laser Rangefinder. Redefine hunting by laser ranging.

Key Features:

• 400x300 IR Resolution
• 14401080 AMOLED Display
• 12 Hours Battery Life
• 1000m/1500m Laser Ranging

With the laser rangefinder seamlessly integrated into a slim-design scope, the TU Gen2 LRF Series enables precise detection of targets at distances of up to 1,500 meters, empowering hunters with a reliable perception of distance at the hunting site to make accurate shots. The product has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.

Features

High Definition Thermal Sensor

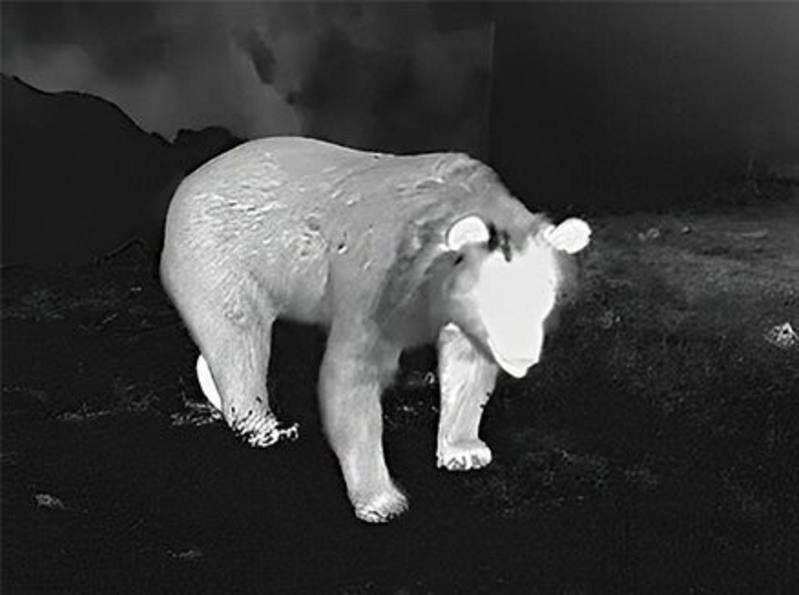

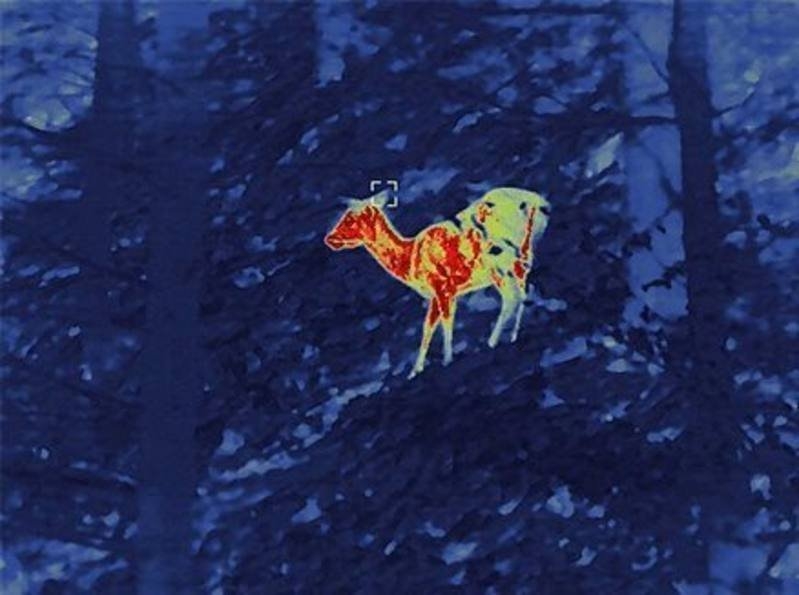

High-quality thermal imaging with 400300@12m or 640480@12m resolution with clear distinctions allows for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape.

14401080 AMOLED Display

The heat signature captured by the thermal image can be shown on the display using the picture-in-picture (PIP) feature, significantly enhancing the comfort of observation.

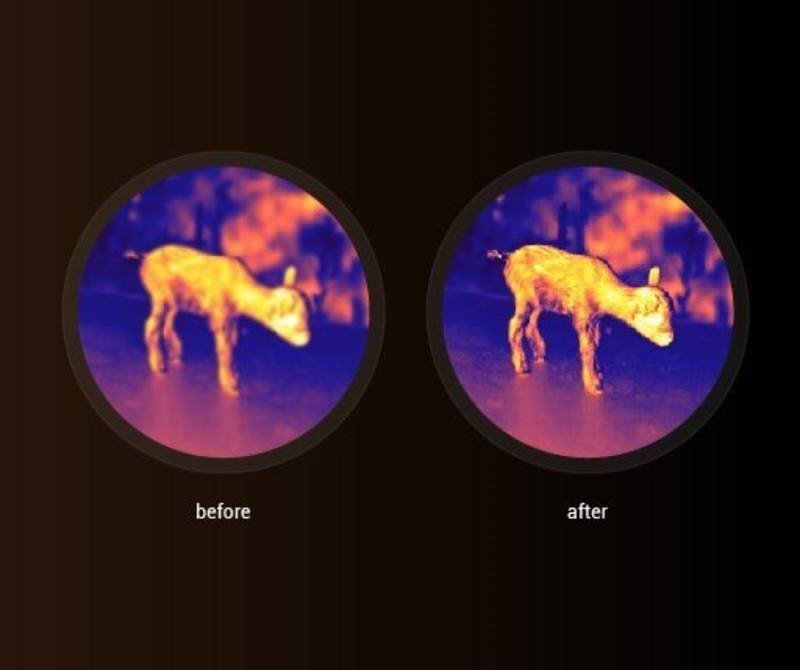

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)

The PureIR combining 3DNR and PureIR adaptive filtering algorithms delivers high-sensitivity thermal images, reducing image distortion and enriching detail even for distant targets.

Fast Detection 1000m/1500m LRF

The compact ranging module, which has been recently created, offers accurate and rapid detection, allowing you to identify targets at distances of up to 1000 or 1500 meters during nighttime hunting, thus enhancing your hunting efficiency.

Specifications:

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14 m
• Resolution: 400300@12m
• NETD: 30mK
• Frame rate: 50 Hz

Lens

• Objective lens: 50mm, F1.0
• Field of view: 5.54.1
• Magnification: 3.78xapprox. 15.12x
• Detection range: 2000m/yd

Display

• Display type: 0.39 AMOLED 14401080
• Eyepiece: Exit pupil distance 48 mm; Diopter 4; Zoom: 14x

Hardware

• Laser rangefinder: 1000m/yd
• WIFI: 2.4G
• Interface: USB Type-C; Micro HDMI
• Tube diameter: Standard 30 mm

System

• Recording function: Photo/Video
• Memory capacity: 128GB

Power

• Battery type: Single 18650 battery (built-in) and customized battery (external)
• Operating time: 12 hours

Environmental

• Operating temperature: -30 C to 50 C/ -22F to +122F
• Shock: 800 G at 1 ms half sine pulse (as per IEC60068-2-27)
• Encapsulation: IP67

Physical

• Weight: 1250g
• Size: 37710799mm
• Standard: Device, lens cap, eye mask, 5V2A adapter (US, Britain, Australia and Europe), Desktop charger, customized battery2, Extended clip2. USB Type-C cable, micro HDMI cable, Quick start guide
• Optional: Bluetooth remote control, Customized battery, Extended bracket
