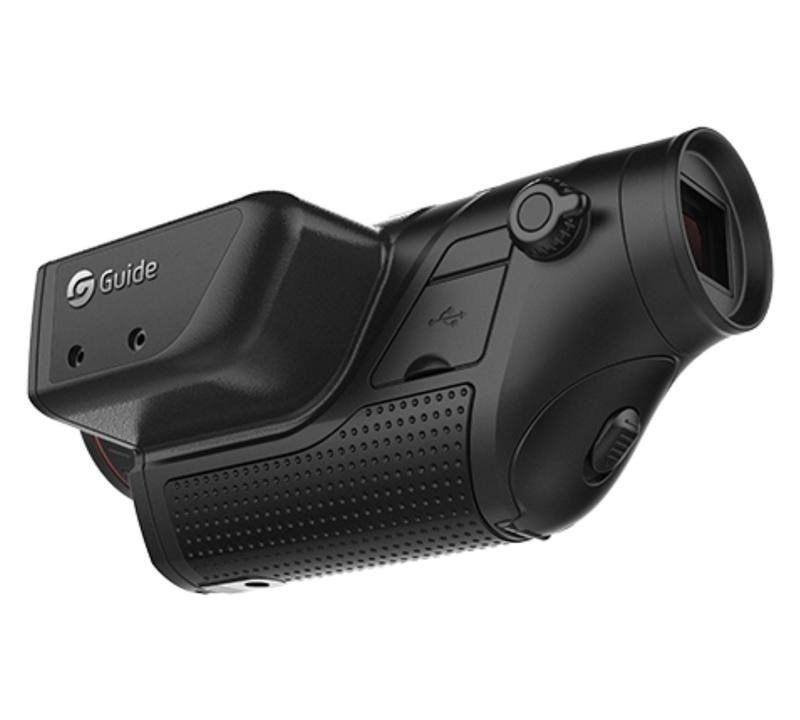

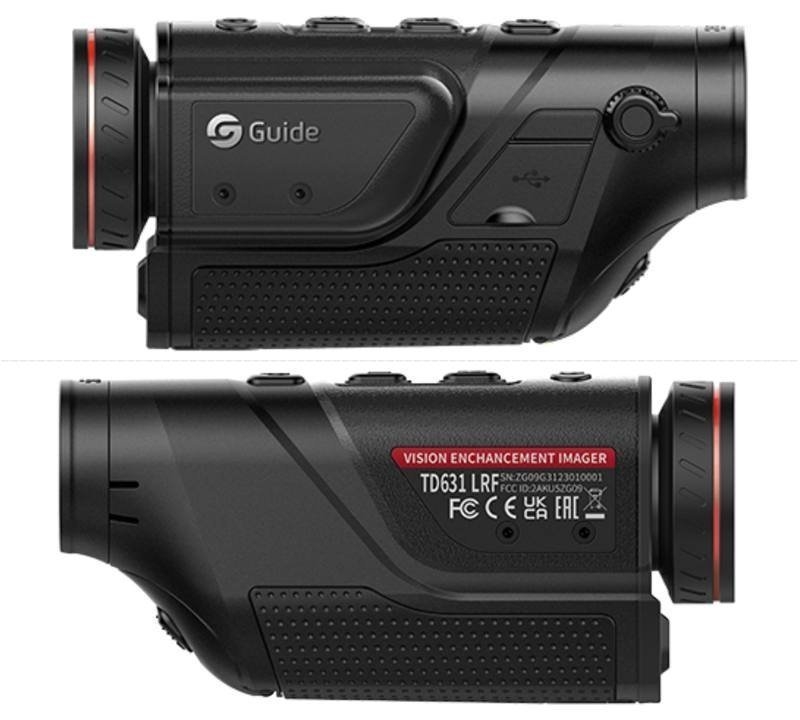

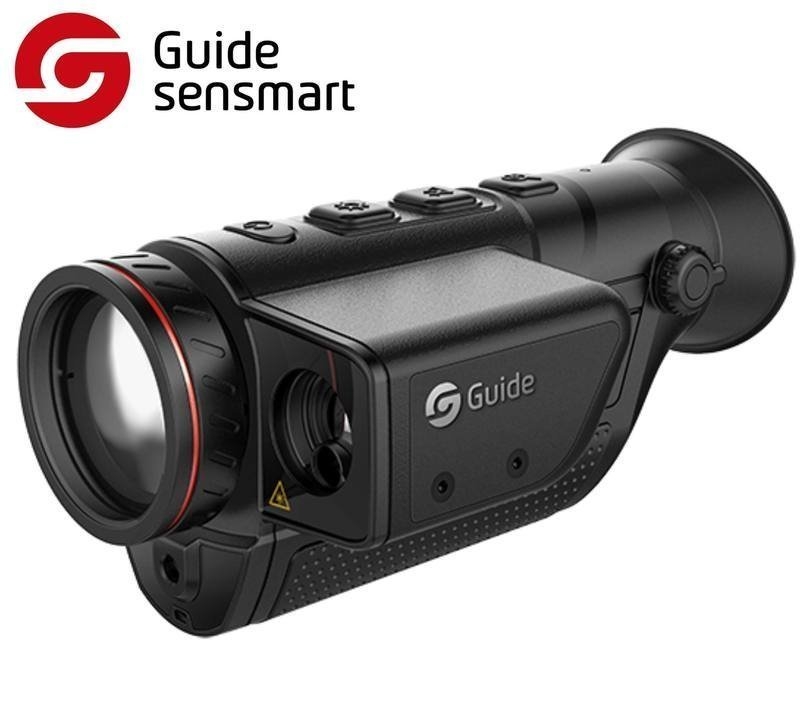

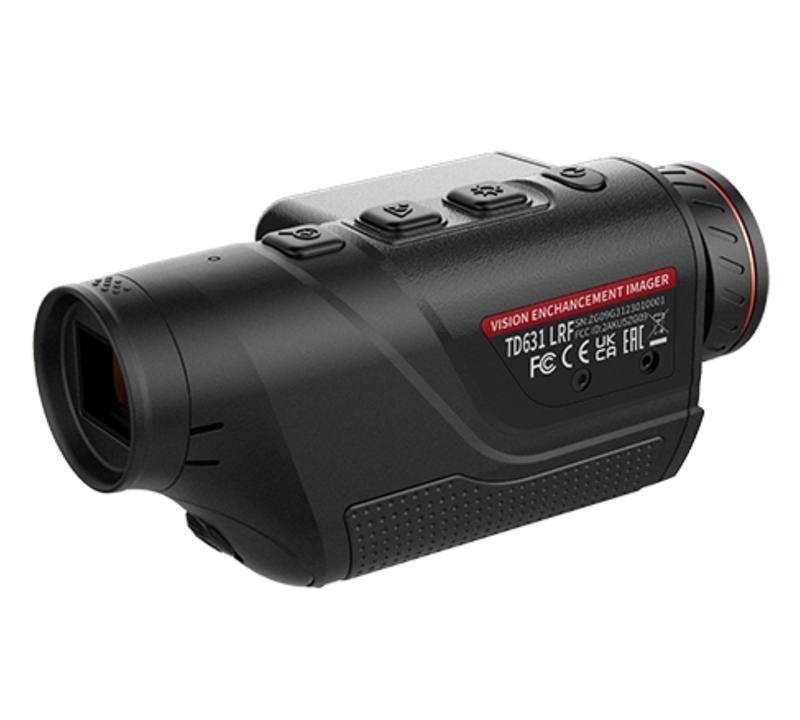

Guide Infrared TD631 LRF Monocular Handheld Thermal

The TD Gen2 LRF Series is the industry's first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.

Features:
640x480 IR Resolution
35mm/F1.0 Focal Length
Manual Focusing
8 Hours Strong Battery Life
Integrated Rangefinder (range up to 600m)
High-brightness AMOLED Display
Enhanced Image Processing Algorithms
Real-time Sharing with WIFI

Infrared detector
 Detector type: Uncooled VOx Infrared
 Detector resolution and pitch: 640 480, 12 m
 Spectral range: 8 to 14 m
 NETD: 35 mk
 Frame rate: 50 Hz

Lens
Focal length: 35 mm; F1.0
Focus: Manual
Field of View: 12.5 9.4
Optical zoom: 1.7x
Digital zoom: 1x, 2x, 4x

Display
Display type: 0.23' AMOLED
Resolution: 640 x 400
Eyepiece: Exit pupil distance12 mm; Diopter: -4 to +2; Zoom: 18x
Video output: Analog video

Power
Battery type: Single Replaceable 18650 battery
Battery life: 8 hours

Interface
USB: Type C
Mechanical interface: UNC '-20 (Tripod mounting), Mechanical expansion interface

Range Performance
Detection range: 1400 m

Laser rangefinder
Max. measuring range: 600m
Others: PIP, Hot spot tracking

Functions
Scene modes: Enhanced, Highlight and Natural
Color palettes: Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
PIP: Available
Hot spot tracking: Available
Rough ranging: Available with APP
WIFI: 2.4 G
Supported Application: TargetIR
Firmware OTA: Upgrade device firmware via app connection

Environmental
Storage temperature range: -30C to 60C
Humidity: 10 % to 95 % non-condensing
Shock: 30 G at 11 ms half-sine pulse
Drop: 1 m
Encapsulation: IP66
Certification: IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2

Physical:
Weight:  399 g
Dimensions: 150 77 74 mm

Included in box...
Guide TD631 LRF
Lens cover and lanyard
Battery charger
Single 18650 battery
USB Type-C cable
Wrist strap
Carry bag
Eye mask
Quick use guide
Warranty card
