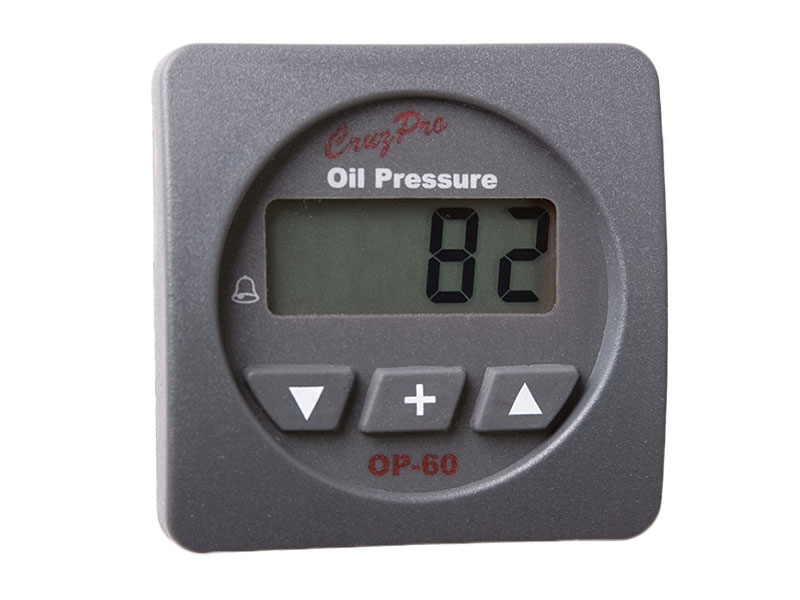

The OP60 Oil Pressure Gauge displays engine oil pressure in Psi or Bars.
It has built-in calibration curves for most popular pressure senders manufactured by VDO, Teleflex, Faria, Stewart-Warner, GM and others. The sender type is easily selected with the front panel keys.
Low and High pressure alarms can be set over the entire range. When activated, the OP60 built-in 85 dB alarm will sound and the display will flash. The alarms can be enabled or disabled with a single key press.
Five levels of backlighting can be selected.
Data is output on an NMEA 0183 compatible serial data output.
The OP60 draws only 0.017 amps
The OP60 outputs oil pressure on the standard NMEA 0183 serial data.
Specifications:- Operating Voltage: 9.5 - 33.0 VDC
- Current Drain: 0.018 amps nominal
- Display: 4 digit LCD, 5 levels of backlighting
- Data: Oil Pressure, 0 to 75, 0 to 80, 0 to 150, 0 to 350 and 0 -400 PSI or equivalent Bars
- Inputs: Built-in calibration curves for all popular senders from Teleflex, VDO, GM, Stewart-Warner, Faria, etc.
- Data Output: NMEA 0183 serial 4800 BAUD
- Alarms: Built-in 85 dB audible alarm. Settable high and low oil pressure alarms. The NMEA 0183 serial output pin can be user programmed as an external alarm output terminal.
- Size: 2.5''' dia X 4.1''' deep (61mm x 104mm)
- Mounting: 2-1/8''' (55mm) round hole
User Manual
