Actisense Panel Mount Wired Connector 5-Pin

#9045557
Warranty Badge - 12-Months
Ships Dec 30 - Jan 19

Seen a lower price? Ask us to beat it

Product Name Price Qty
Actisense Panel Mount Wired Connector 5-Pin Female

Ships Dec 30 - Jan 19

NOW $54.99
Actisense Panel Mount Wired Connector 5-Pin Male

Ships Dec 30 - Jan 19

NOW $56.99
Add Items to Cart

💬 Report incorrect product information

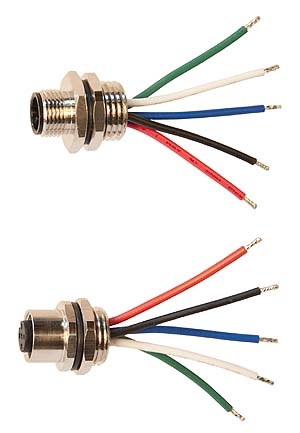

Actisense Panel Mount Wired Connector 5-Pin

Click on the image above to view full picture

Details

Details

Allow NMEA 2000 installations through water tight bulkheads or panels.

This series of Actisense Panel Mount Wired Connector 5-Pin consists of rear panel mount wired connectors available from Actisense that allow NMEA 2000 installations through water tight bulkheads (or panels) to be achieved. Waterproof seals ensure the integrity of the NMEA 2000 connection and the bulkhead/panel.

The Actisense Panel Mount Wired Connector 5-Pin Female can easily replace any of the existing 'drop' glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

Actisense Panel Mount Wired Connector 5-Pin Specifications:
Parameter Description
Electrical
Rated Current 4 A
Rated Voltage 60 V (AC/DC)
Mechanical
Contacts Brass, gold plated
Contact Carrier Nylon and GF
Contact Polarisation Standard M12 - 'A' - Polarisation
Mating Thread M12
Female O-Ring Seal Rubber Green
Housing Brass, nickel plated
Mounting Thread PG9
Mounting Nut Brass, nickel plated - PG9
Mounting Hole Dimensions 15.3mm (diameter)
Wires 18 AWG (stripped and tinned)
Wire Jacket PVC
Weight 20g
Approvals and Certifications
Protection IP67 (when mated)
Operating Temperature - 20 degreesC to + 90 degreesC
Connector Specification Meets IEC61076-2-101
NMEA 2000 Pending
RoHs Compliant
UL Certified (E321413)
