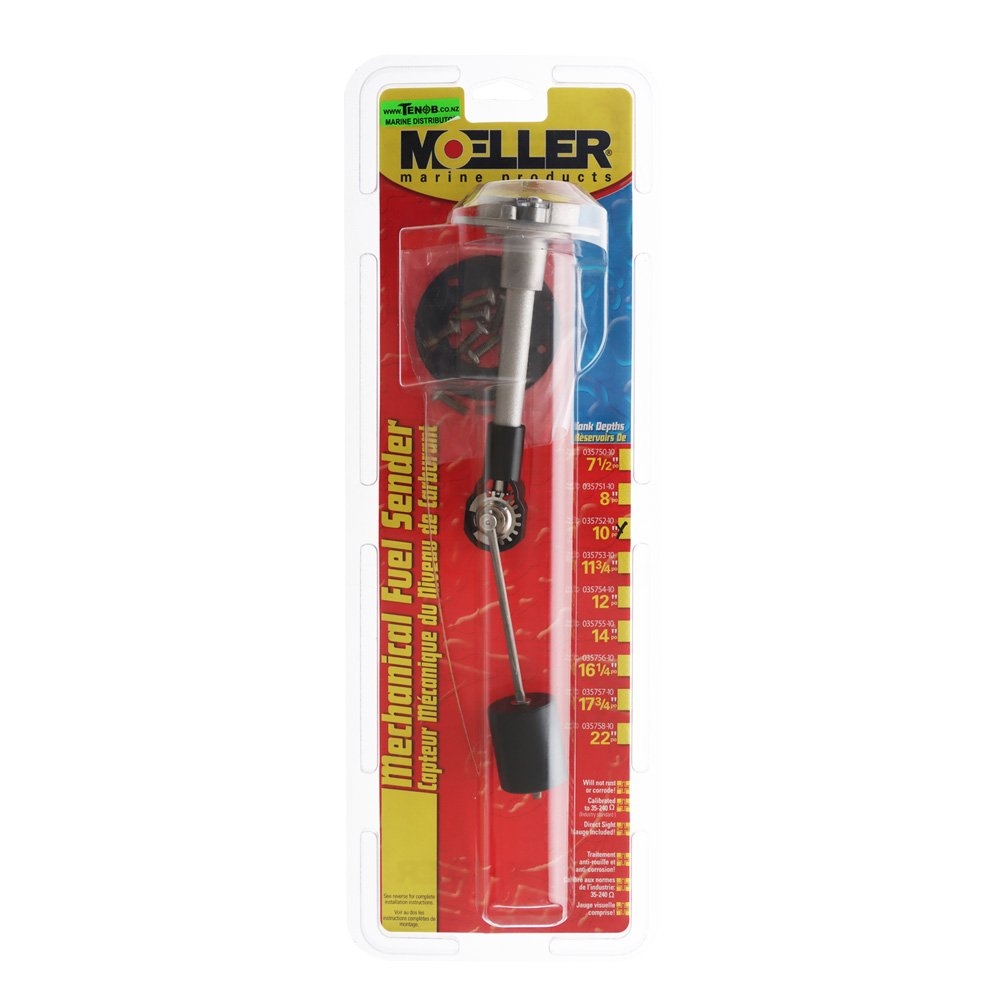

Moeller Fuel Level Indicator for Tanks

#9014172
Warranty Badge - 12-Months
Check Below for Availability

Seen a lower price? Ask us to beat it

Product Name Price Qty

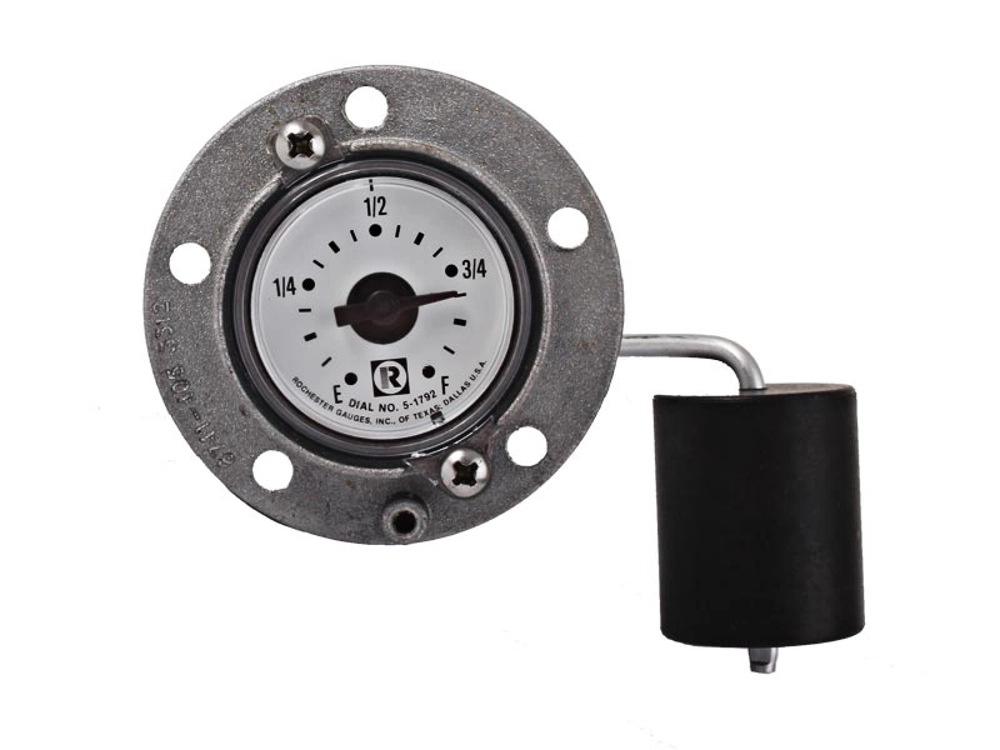

Moeller 035750-10 Fuel Level Indicator for Tanks 190mm Deep

In Stock - Ready to Ship

$195.00 NOW $185.00
Moeller 035752-10 Fuel Level Indicator for Tanks 254mm Deep

Hurry! 2 left in stock - Ready to Ship

NOW $189.00
Moeller 035755-10 Fuel Level Indicator for Tanks 356mm Deep

Ships Nov 22 - Dec 4

NOW $179.00
Moeller 035757-10 Fuel Level Indicator for Tanks 451mm Deep

Out of Stock

$195.00 NOW $185.00

Sold Out

Add Items to Cart

Click on the image above to view full picture

More Views

Details

Details

For precise and quick measurements of fuel tank levels

The Moeller Tank Level Indicator is a non-electric mechanical sending unit that features a direct sight gauge on top of the unit. Designed to be mounted on the tank itself, the gauge provides you with precise and quick measurements of fuel tank levels. And what's more, its simple swing arm design is calibrated to a direct sight gauge for immediate readings. To ensure accurate results, be sure to read the tank level when at the dock or stationary - as fuel levels may fluctuate as the fuel sloshes around the tank.

Moeller Tank Level Indicator Features:
  • Internal components will not rust or corrode
  • While accurate, the gauge will fluctuate as fuel sloshes inside tank because of the moving parts - the float
  • Direct Site Gauge is complete on unit

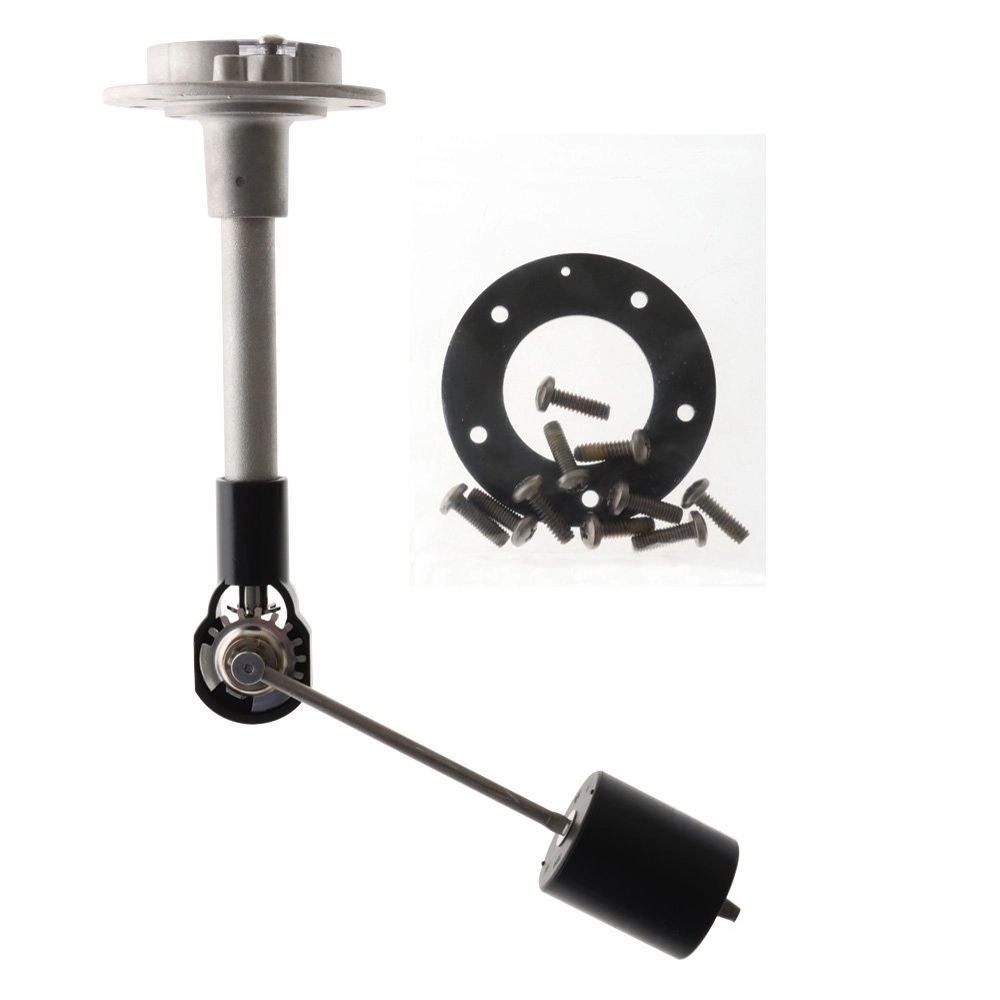

  • Includes gasket and screws
  • Fits the standard fuel sender cut-out dimensions
  • Select appropriate length based on tank depth
  • Suitable for petrol (diesel if separate return line is available) only (not water)
  • Direct replacement for Tempo branded gauge
  • 5 screw fixing on 2.1/8" (54mm) centres
  • SAE 5 stud pattern

Moeller Tank Level Indicator Specifications:

Tank Level Indicator Size
Moeller Fuel Level Indicator For Tanks 7.5'' Deep For tanks 190mm (7.5in) deep
Moeller Fuel Level Indicator For Tanks 10'' Deep For tanks 254mm (10in) deep
Moeller Fuel Level Indicator For Tanks 14'' Deep For tanks 356mm (14in) deep
Moeller Fuel Level Indicator For Tanks 17'' Deep For tanks 451mm (17.3/4in) deep
Moeller Fuel Level Indicator For Tanks 22'' Deep For tanks 560mm (22in) deep
