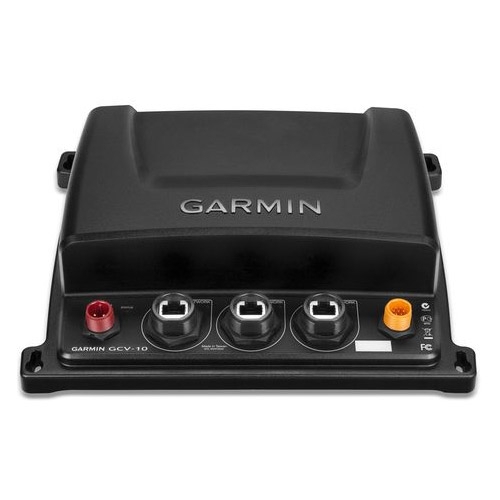

Garmin GCV10 ClearVu Black Box Scanning Sonar Module

Add SideVü/ClearVü Scanning Sonar to Your Compatible Chartplotter

The Garmin GCV10 ClearVu Black Box Scanning Sonar Module adds both SideVü and DownVü with CHIRP scanning sonar technologies to your compatible Garmin echoMAP or GPSMAP series combo (see compatible devices). CHIRP technology sweeps through a range of frequencies to give you an ultra-clear sonar picture of objects, structure and fish that pass below (DownVü) and to the sides (SideVü) of the boat.

Together with your combo's HD-ID sonar, you get an excellent search and confirmation tool for advanced fishfinding in both fresh and saltwater.

DownVu Scanning
DownVu gives you a nearly photographic sonar view of structure and fish that pass below your boat. You can view DownVu scanning images in conjunction with SideVu and your HD-ID sonar, or CHIRP sonar images on the same screen.

SideVu Scanning
An excellent tool for scoping out a fishing area quickly, SideVu provides a wide view of what lies off to either side of your boat. You see a crystal clear image that makes it easy to identify wrecks, structure, rocks and, yes, even the fish that are lurking next to them. You can view SideVu scanning images in conjunction with DownVu and your HD-ID sonar, or CHIRP sonar images on the same screen.

Multiple Options
The GCV 10 is sold with and without a transducer. The version with a transducer includes 12-pin DownVu/SideVu transom mount transducer with fast response temperature sensor.

Garmin GCV10 ClearVu Black Box Scanning Sonar Module Features:

• For use with compatible echoMAP and GPSMAP series combos

• Provides both DownVu and SideVu with CHIRP scanning sonar technology for a high-frequency, ultra-clear sonar picture of objects, structure and fish

• Includes 12-pin DownV/SideV transducer with fast response temperature sensor

• 3 network ports provided for advanced networking for multiple units


Garmin GCV10 ClearVu Black Box Scanning Sonar Module Specifications:

• Unit dimensions, LxWxH: 9.9x7.6x2.6 (251 mm x 192 mm x 66 mm)

• Weight: 1.86 lbs (845 g)

• Waterproof: yes (IPX7)

• Temperature range: From 5 degrees F to 158 degrees F (from -15 degrees C to 70 degrees C)

• Power Input: 10-35 V

• Power Usage: 10.5 W maximum

• Fuse: 4.0 A

• Compass safe distance: 10.2 in. (26 cm)

• Sounder power: 500 W rms

• Frequency: 455/800 kHz (dependent on transducer)

• Depth: DownVu: 750 ft (229 m); SideVu: 500 ft (153 m)

• Data output: Garmin Marine Network


What's in the box:

• GCV 10

• Right-angle power cable (20 ft)

• Right-angle network cable (6 ft)

• Right-angle transducer adapter cable

• Mounting hardware

• Documentation


Note: This listing does not come with a transducer.
