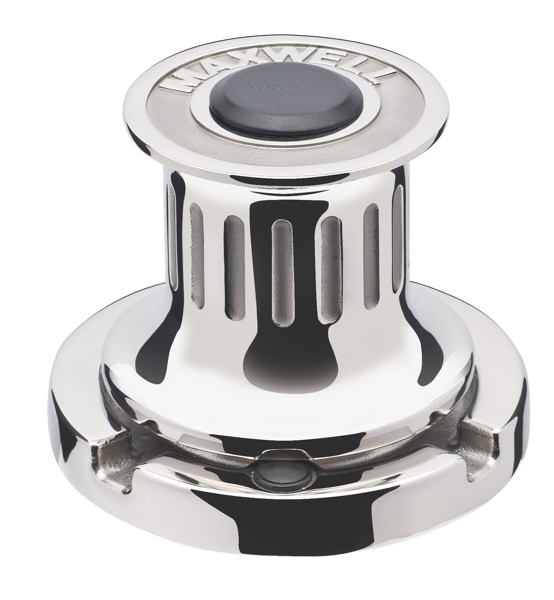

Maxwell 500 VC Vertical Windlass 24V 600W
Maxwell 500 VC Vertical Windlass 24V 600W
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
This stainless steel (AISI 316) fluted capstan is designed for
simple, low cost anchor recovery on smaller boats and rope hauling
on larger vessels.
Specifications:
Product Data Sheet
Specifications:
| Voltage (V) | 24 V |
|---|---|
| Motor (W) | 600 |
| Maximum pull/lift (kg) | 300 |
| Static hold (kg) | - |
| Line speed (normal working) (m) | 18 m/min |
| Net weight, electric (kg) | 10 |
| Hydraulic pressure (bar) | - |
| Hydraulic flow (litres/minute) | - |
| Net weight, hydraulic (kg) | - |
| A (mm) | 65 |
| B (mm) | 106 |
| E (mm) | 245 |
| F (mm) | 132,5 |
| G (standard deck clearance) (mm) | 57 |
| G (extra deck clearance) (mm) | - |
| D (standard deck clearance) (mm) | 173 |
