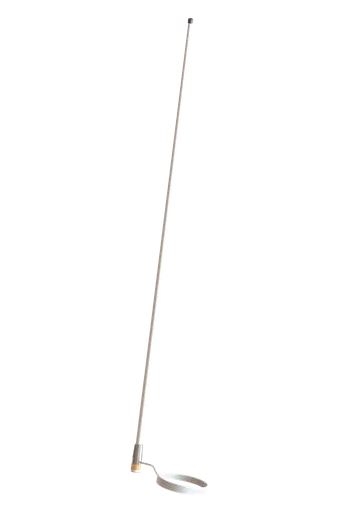

SCAN VHF54 VHF Antenna 1.5m with 20m Cable

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Pacific Aerials VHF Antenna with Mount 1.5m

Pacific Aerials VHF Antenna with Mount 1.5m
Why pay $82.99
ONLY $76.99
SAVE $6.00!
Details

Details

Long range high gain international maritime VHF Antenna

The SCAN VHF54 VHF Antenna is a long range high gain International Maritime VHF Antenna for the leisure market. Durable, easy to install, with outstanding electrical performance for crisp radio quality.

SCAN VHF54 VHF Antenna Features:
  • Improved gain compared to other high quality marine VHF antennas
  • Reduced antenna weight compared to similar marine VHF antennas
  • Matching designs available for other frequency bands
  • For mounting on all US style brackets with 1"-14NF threaded stud

SCAN VHF54 VHF Antenna Specifications:
  • Model: 11054-622
  • Frequency: 156 - 162.5 MHz (International Maritime VHF-band)
  • Bandwidth: 6.5 MHz
  • Antenna type: End-fed full 1/2 λ dipole - no groundplane needed
  • Impedance: 50 ohm
  • VSWR: < 1.6:1
  • Polarisation: Vertical
  • Gain: 4 dB (Marine), 0.5 dBd, 2.6 dBi
  • Radiation pattern: Omni-directional
  • Max input power: 150 W
  • Anti-static protection: Direct Ground (DC-short)
  • Length: 1375mm
  • Weight: 1060 g (with 20 m cable)
  • Mounting: on brackets with 1"-14NF threaded stud (US style)
  • Mounting location: On deck or mast
  • Material: PU-painted glass fibre, PCB, PE, copper and chrome plated solid brass
  • Operating temperature: -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
